Product name :  Corrugated Plastic Tubing
Material : Polyamide(PA)
 Enlarge Image                   Back



Details:

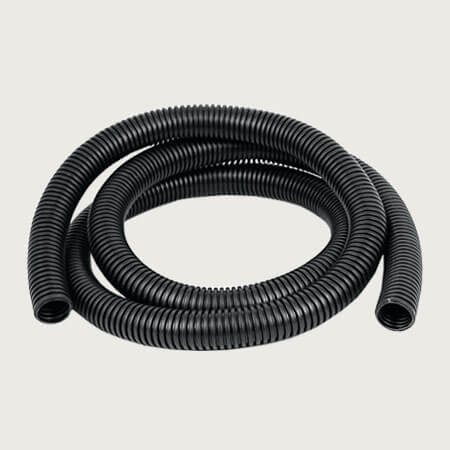

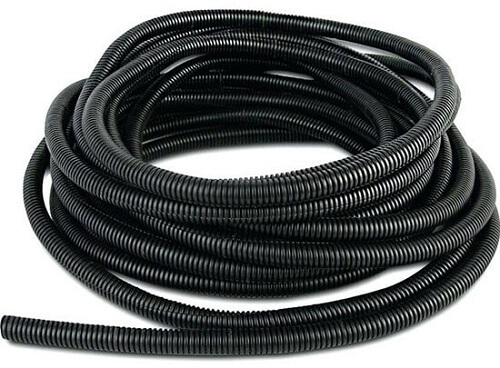

Corrugated Plastic Tubing



corrugated plastic tubing

Products introduction:

1. Material:

polyamide(nylon)

polyethylene, polypropylene are also workable.

2. Colors:

black(general)

other colors are under custom

3. Working Temperature:

-40℃~+125℃

4. Function:

polyamide corrugated plastic tubing is used to protect wire and cables. Nylon is the most durable and stable material in plastic. So nylon corrugated tubing is the best(quality) in the corrugated plastic tubing.  Especially, it could be recoverd by itself after a terrible bending.

5. Size:

Types Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-PA-7 4.5 7.0 200
Flex-PA-8 5.5 8.5 100
Flex-PA-10 6.5 10.0 100
Flex-PA-11 8.5 11.5 100
Flex-PA-13 10.0 13.0 100
Flex-PA-15 12.0 15.8 100
Flex-PA-18 14.3 18.5 100
Flex-PA-20 16.0 20.0 100
Flex-PA-21 17.0 21.2 100
Flex-PA-25 21.0 25.0 100
Flex-PA-28 23.0 28.5 100
Flex-PA-34 29.0 34.5 50
Flex-PA-42 36.0 42.5 25
Flex-PA-54 48.0 54.5 25
Flex-PA-67 56.3 67.2 25
Flex-PA-80 66.5 80.0 20
Flex-PA-106 91.0 106.0 20

Tolerance: ±0.2mm, split and non split are workable

6. Warehouse:

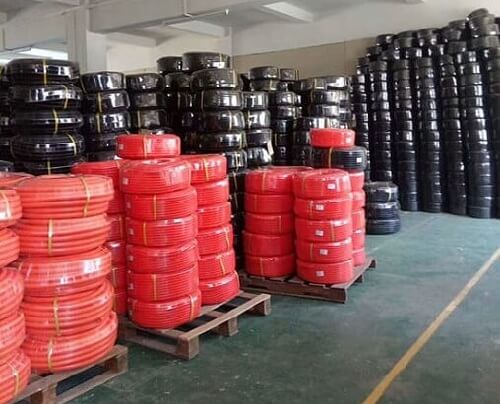

corrugated plastic tubing warehouse



Remarks:

MOQ: 100m

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

General Payment: 30% deposit, T/T balance before delivery.

Custom Service: corrugated plastic tubing custom service is workable for us. Such as materials, sizes, logo, packing quantity, packages, split, fire-proof etc.
