Double Split Flexible Conduit

Products: Materials: nylon(PA) Customizable Materials: polypropylene(PP) or polyethylene(PE) Colors: black(general), others could be custom. Temperature: -40℃~+125℃ (+140℃ in a short time) Certificates: ROHS, CE, ISO9001:2015 Brand: FlexGlory, China Products Show: Usage Show: Size Chart: Part No. Inside Diameter(mm) Outside Diameter(mm) Bending Radius(mm) Flex-DS-PA-10 8.9 13.8 55 Fle ...
  • PRODUCT DETAIL

Products:

Materials:

nylon(PA)

Customizable Materials:

polypropylene(PP) or polyethylene(PE)

Colors:

black(general), others could be custom.

Temperature:

-40℃~+125℃ (+140℃ in a short time)

Certificates:

ROHS, CE, ISO9001:2015

Brand:

FlexGlory, China

Products Show:

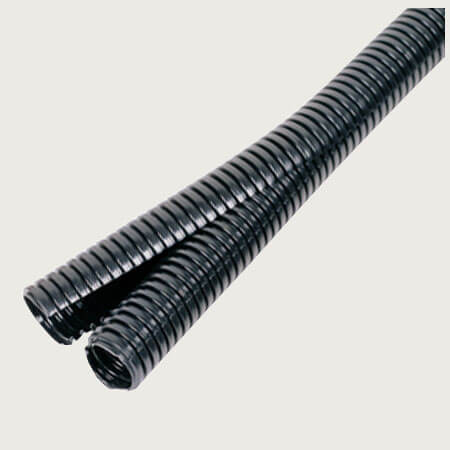

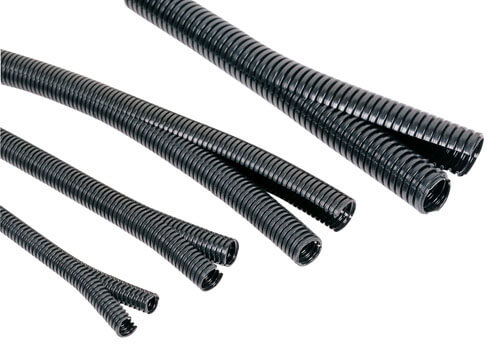

double split flexible conduit

Usage Show:

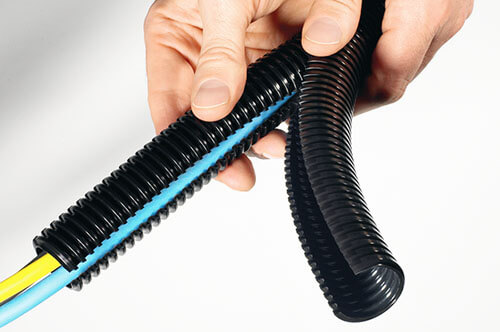

double split flexible conduit usage

Size Chart:

Part No. Inside Diameter(mm) Outside Diameter(mm) Bending Radius(mm)
Flex-DS-PA-10 8.9 13.8 55
Flex-DS-PA-13 12.8 18.7 75
Flex-DS-PA-20 20.0 25.8 105
Flex-DS-PA-25 24.8 31.4 125
Flex-DS-PA-32 31.4 41.9 205
Flex-DS-PA-44 43.3 54.5 210
Flex-DS-PA-67 67.0 80.0 230



Remarks:

MOQ:

1 roll

Payments:

T/T, Western Union, Paypal are available. Others are negotiated.

Custom Service:

Double split flexible conduit custom service is workable for us. Such as materials, sizes, packing quantity, packages, split or not, fire-proof, pull the wire in etc.
