Home>Products>PE Conduit>Electrical Tubing
Product name :  Electrical Tubing
Material : Polyethylene(PE)
 Enlarge Image                   Back



Details:

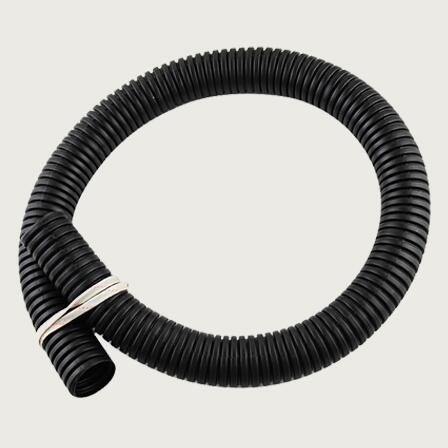

Electrical Nonmetallic Tubing

Products introduction:

1. Material: Polyethylene(PE). PA, PP, PVC are also workable.

2. Colors: Black(general), others are workable.

3. Working Temperature: -20℃~+110℃

4. Market Location: Middle-grade Products

5. Function: Compared with PA, PA materials, PE is the cheapest one. PE electrical nonmetallic tubing is the best choice for the general situation, because of it’s competitive price and quality. Widely used in everywhere, which need to protect wire and cables.

6. Size:

Types Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-PE-7 4.5 7.0 200
Flex-PE-8 5.5 8.5 100
Flex-PE-10 6.5 10.0 100
Flex-PE-11 8.5 11.5 100
Flex-PE-13 10.0 13.0 100
Flex-PE-15 12.0 15.8 100
Flex-PE-18 14.3 18.5 100
Flex-PE-20 16.0 20.0 100
Flex-PE-21 17.0 21.2 100
Flex-PE-25 21.0 25.0 100
Flex-PE-28 23.0 28.5 100
Flex-PE-34 29.0 34.5 50
Flex-PE-42 36.0 42.5 25
Flex-PE-54 48.0 54.5 25
Flex-PE-67 56.3 67.2 25
Flex-PE-80 66.5 80.0 20
Flex-PE-106 91.0 106.0 20

Tolerance: ±0.2mm

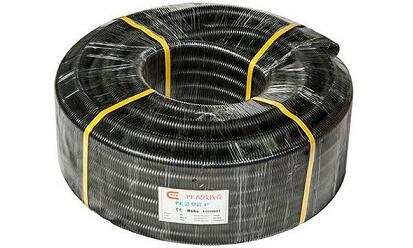

7. General Package show:

Electrical Nonmetallic Tubing

Remarks:

MOQ: 100m

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

General Payment: 35% deposit, T/T balance before delivery.

Customizable Service: Electrical Nonmetallic Tubing customizable is workable for us. Such as materials, sizes, logo, packing quantity, packages, split, fire-proof, pull the wire in requirements etc.
