Product name :  Flexible Cable Conduit
Material : PA / PP / PE
 Enlarge Image                   Back



Details:

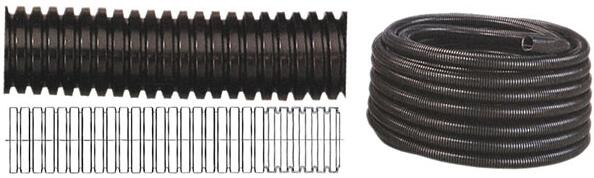

Flexible Cable Conduit



Flexible Cable Conduit



Products introduction:

1. General Material: Polyamide(pa), Polypropylene(pp), Polyethylene(pe).

2. Colors: Black(general), others could be customizable

3. Working Temperature: -40℃~+125℃ (+140℃ in a short time)

4. Certificates: Rohs, CE, ISO9001:2008

5. Our Thrength: Flexible Cable Conduit is produced by stable and reliable materials, better mold maintenance. Flexible Cable Conduit is used to protect wire and cables.  Widely used in machinery, construction, auto, metro, automation etc.

6. Size:

Types Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-PC-7 4.5 7.0 200
Flex-PC-8 5.5 8.5 100
Flex-PC-10 6.5 10.0 100
Flex-PC-11 8.5 11.5 100
Flex-PC-13 10.0 13.0 100
Flex-PC-15 12.0 15.8 100
Flex-PC-18 14.3 18.5 100
Flex-PC-20 16.0 20.0 100
Flex-PC-21 17.0 21.2 100
Flex-PC-25 21.0 25.0 100
Flex-PC-28 23.0 28.5 100
Flex-PC-34 29.0 34.5 50
Flex-PC-42 36.0 42.5 25
Flex-PC-54 48.0 54.5 25
Flex-PC-67 56.3 67.2 25
Flex-PC-80 66.5 80.0 20
Flex-PC-106 91.0 106.0 20

  Tolerance: ±0.2mm

7. Loading:

Flexible Cable Conduit

Remarks:

MOQ: 100m

Payment: Paypal, T/T, Western Union are available, others are negotiated.

Customizable Service: Flexible Cable Conduit customizable are vailable for us. Such as packing quantity, label, packages, color, fire-proof property, split etc.

If you have any questions about Flexible Cable Conduit, Welcome to send us emails for assistance.
