Product name :  Flexible GI Conduit
Material : Galvanized Steel(GI)
 Enlarge Image                   Back



Details:

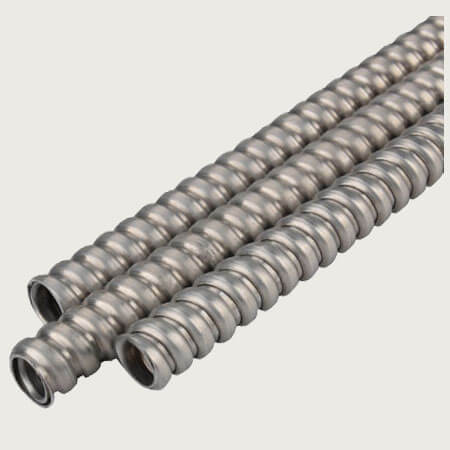

Flexible GI Conduit



Products Show:

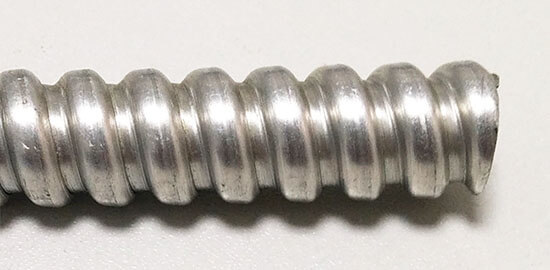

flexible gi conduit details
flexible gi conduit details

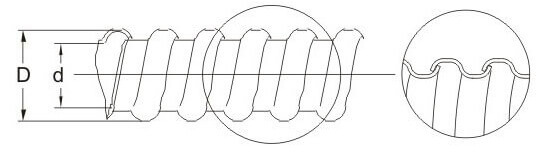

flexible gi conduit structure
flexible gi conduit structure



Products introduction:

1. Material: Galvanized steel

2. Certificates: UL approved

3. Usage: Flexible gi conduit is widely used in wire and cable protection. Especially in household wiring cable protection.

4. Size:

Types Inch Size Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
FLEX-GI-7 5/16″ 7.92~8.32 11.94~12.95 100
FLEX-GI-9 3/8″ 9.52~9.96 14.22~15.49 100
FLEX-GI-13 9/16″ 13.89~14.61 17.90~18.67 100
FLEX-GI-15 1/2″ 15.88~16.38 21.84~23.37 100
FLEX-GI-20 3/4″ 20.62~21.21 26.54~28.07 100
FLEX-GI-25 1″ 25.40~26.42 33.02~35.05 50
FLEX-GI-31 1-1/4″ 31.75~33.02 39.37~41.40 50
FLEX-GI-38 1-1/2″ 38.10~40.01 46.99~49.53 25
FLEX-GI-50 2″ 50.80~52.83 59.69~62.23 25
FLEX-GI-63 2-1/2″ >63.5 72.64~77.72 25
FLEX-GI-76 3″ >76.2 85.34~90.42 25
FLEX-GI-88 3-1/2″ >88.90 98.04~103.12 25
FLEX-GI-101 4″ >101.6 110.72~115.82 25



Remarks:

MOQ: 100m

Payments: T/T, Western Union, Paypal. Others are negotiated.

Customizable Service: Flexible gi conduit customizable is workable for us. Such as materials, sizes, logo, packing quantity, packages etc.
