Product name :  Flexible Plastic Conduit
Material : PA or PP or PE
 Enlarge Image                   Back



Details:

Flexible Plastic Electrical Conduit



Products introduction:

1. Product Show:

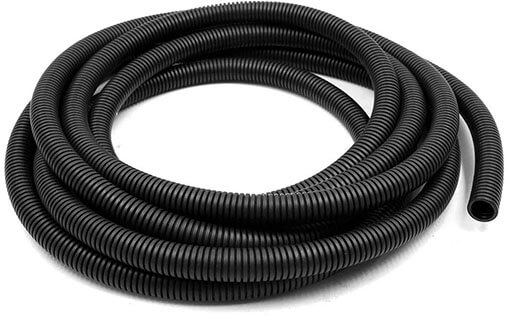

Flexible Plastic Electrical Conduit

2. General Materials:

nylon/polyamide(pa).

polypropylene(pp) or polyethylene(pe) are workable.

3. Colors:

black color, other colors could be customizable.

4. Working Temperature:

-40℃~+125℃ (+140℃ in a short time)

5. Certificates:

CE, Rohs

6. Usage:

flexible plastic electrical conduit is used to protect the wire and cables. Widely used in machine, auto, shipping, lighting, automation etc.

7. Size Chart:

Types Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-PA-7 4.5 7.0 200
Flex-PA-8 5.5 8.5 100
Flex-PA-10 6.5 10.0 100
Flex-PA-11 8.5 11.5 100
Flex-PA-13 10.0 13.0 100
Flex-PA-15 12.0 15.8 100
Flex-PA-18 14.3 18.5 100
Flex-PA-20 16.0 20.0 100
Flex-PA-21 17.0 21.2 100
Flex-PA-25 21.0 25.0 100
Flex-PA-28 23.0 28.5 100
Flex-PA-34 29.0 34.5 50
Flex-PA-42 36.0 42.5 25
Flex-PA-54 48.0 54.5 25
Flex-PA-67 56.3 67.2 25
Flex-PA-80 66.5 80.0 20
Flex-PA-106 91.0 106.0 20

Tolerance: ±0.2mm, split and non split are workable for us.

8. Warehouse:

Flexible Plastic Electrical Conduit Warehouse



Order Details:

MOQ: 100m

Payments: T/T, Western Union, PayPal are available. Others are negotiated.

Custom Service: flexible plastic electrical conduit custom service is workable for us. Such as materials, sizes, logo, packing quantity, packages, split or not, fire-proof, pull the wire in etc.
