Home>Products>Flexible Wire Conduit
Product name :  Flexible Wire Conduit
Material : Galvanized Steel(GI)
 Enlarge Image                   Back



Details:

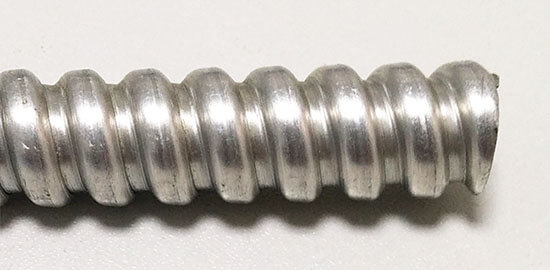

Flexible Wire Conduit

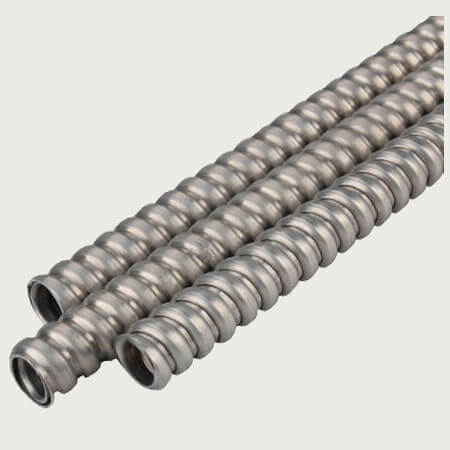

Flexible Wire Conduit

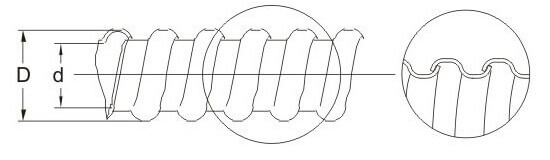

Flexible Wire Conduit Structure

Products introduction:

1. Material: Galvanized steel, stainless steel, and aluminum.

2. Certificates: UL, or not UL.

3. Our Thrength: With the best available materials, and the surface is smooth. With better appearance, flexible and stable properties.

4. Function: Flexible wire conduit is widely used in wire and cable protection. Especially in electronic communication. The price depends on materials, thickness of steel, the width of steel.

5. Size:

Types Inch Size Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-MM-7 5/16″ 7.92~8.32 11.94~12.95 100
Flex-MM-9 3/8″ 9.52~9.96 14.22~15.49 100
Flex-MM-13 9/16″ 13.89~14.61 17.90~18.67 100
Flex-MM-15 1/2″ 15.88~16.38 21.84~23.37 100
Flex-MM-20 3/4″ 20.62~21.21 26.54~28.07 100
Flex-MM-25 1″ 25.40~26.42 33.02~35.05 50
Flex-MM-31 1-1/4″ 31.75~33.02 39.37~41.40 50
Flex-MM-38 1-1/2″ 38.10~40.01 46.99~49.53 25
Flex-MM-50 2″ 50.80~52.83 59.69~62.23 25
Flex-MM-63 2-1/2″ >63.5 72.64~77.72 25
Flex-MM-76 3″ >76.2 85.34~90.42 25
Flex-MM-88 3-1/2″ >88.90 98.04~103.12 25
Flex-MM-101 4″ >101.6 110.72~115.82 25

Remarks:

MOQ: 100m

Payments: T/T, Western Union, Paypal. Others are negotiated.

Customizable Service: Flexible wire conduit customizable is workable for us. Such as materials, sizes, logo, packing quantity, packages etc.
