Product name :  GI Flexible Pipe
Material : Galvanized Steel(GI)
 Enlarge Image                   Back



Details:

GI Flexible Conduit Pipe



■ GI Flexible Conduit(general):

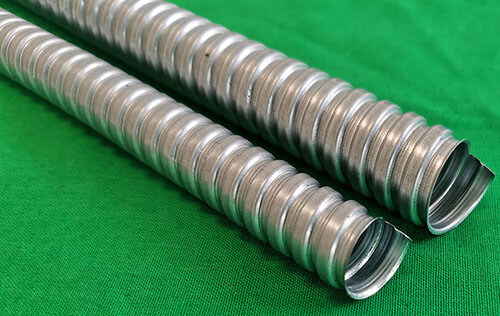

1. Product show:

GI Flexible Conduit Pipe

2. Structure show:

GI Flexible Conduit Pipe Structure

3. Materials: Galvanized steel

4. Using Place:

gi flexible conduit pipe is widely used in wire and cable protection. Especially in electronic communication. The price depends on materials, thickness of stainless steel, the width of stainless steel.

5. Size:

Types Inch Size Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-GM-3 3.0 5.0 200
Flex-GM-4 4.0 6.0 200
Flex-GM-5 5.0 7.0 200
Flex-GM-6 3/16″ 6.0 8.0 200
Flex-GM-8 1/4″ 8.0 10.0 100
Flex-GM-10 5/16″ 10.0 13.0 100
Flex-GM-13 3/8″ 13.0 16.0 100
Flex-GM-16 1/2″ 16.0 20.0 100
Flex-GM-20 3/4″ 20.0 25.0 100
Flex-GM-25 1″ 25.0 31.0 50
Flex-GM-32 1-1/4″ 32.0 39.0 25
Flex-GM-38 1-1/2″ 38.0 46.0 25
Flex-GM-51 2″ 51.0 60.0 20
Flex-GM-64 2-1/2″ 64.0 73.0 20
Flex-GM-75 3″ 75.0 88.0 15
Flex-GM-100 4″ 100.0 106.0 10



■ GI Flexible Conduit(US standard):

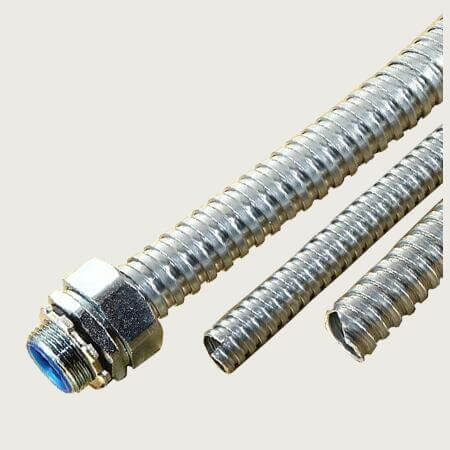

1. Product show:
GI Flexible Conduit Pipe details

2. Structure show:

GI Flexible Conduit Pipe Structure

3. Material: Galvanized steel

4. Certificates: UL approved

5. Size:

Types Inch Size Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
FLEX-GI-7 5/16″ 7.92~8.32 11.94~12.95 100
FLEX-GI-9 3/8″ 9.52~9.96 14.22~15.49 100
FLEX-GI-13 9/16″ 13.89~14.61 17.90~18.67 100
FLEX-GI-15 1/2″ 15.88~16.38 21.84~23.37 100
FLEX-GI-20 3/4″ 20.62~21.21 26.54~28.07 100
FLEX-GI-25 1″ 25.40~26.42 33.02~35.05 50
FLEX-GI-31 1-1/4″ 31.75~33.02 39.37~41.40 50
FLEX-GI-38 1-1/2″ 38.10~40.01 46.99~49.53 25
FLEX-GI-50 2″ 50.80~52.83 59.69~62.23 25
FLEX-GI-63 2-1/2″ >63.5 72.64~77.72 25
FLEX-GI-76 3″ >76.2 85.34~90.42 25
FLEX-GI-88 3-1/2″ >88.90 98.04~103.12 25
FLEX-GI-101 4″ >101.6 110.72~115.82 25



Remarks:

MOQ: 100m
Payments: T/T, Western Union, Paypal. Others are negotiated.
Customer Service: gi flexible conduit pipe custom service is workable for us. Such as materials, sizes, logo, packing quantity, packages etc.
