Product name :  Non-metallic Fittings
Material : PVC
 Enlarge Image                   Back



Details:

Non-metallic Liquid Tight Conduit Fittings



Non-metallic Liquid Tight Conduit Fittings

Products Technical Date:

1. Material: polyvinylchlorid(PVC)

2. Color:  grey(general color), others are workable

3. Working Temperature: -18℃~+60℃

4. Protection Standard: IP68

5. Certificates: Rohs and cULus

6. Thread: NPT

7. Packaging: PE bags, with carton. Packing quantity based on the specification.

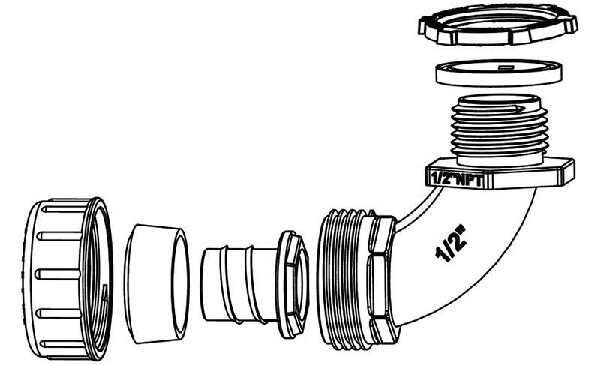

8. Structure:

Non-metallic Liquid Tight Conduit Fittings

9. Size:

Conduit Size(mm) Conduit Size(inch) NPT Thread Specifications Packages
12 3/8 1/2″ Flex-PVCW12-3/8 400
16 1/2 1/2″ Flex-PVCW16-1/2 360
21 3/4 3/4″ Flex-PVCW21-3/4 300
27 1 1″ Flex-PVCW27-1 160
35 1-1/4 1-1/4″ Flex-PVCW35-1-1/4 80
41 1-1/2 1-1/2″ Flex-PVCW41-1-1/2 60
53 2 2″ Flex-PVCW53-2 50

10. Packing:

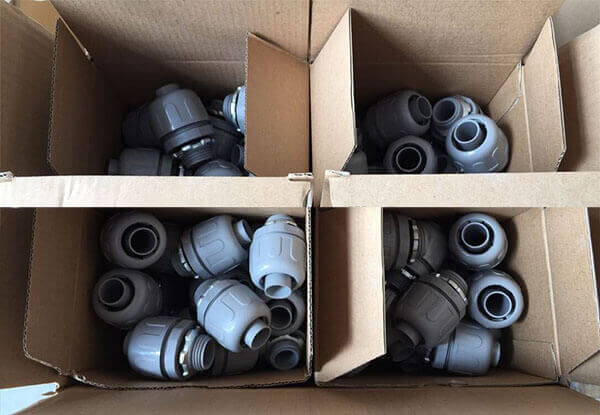

Non-metallic Liquid Tight Conduit Fittings packages

Remarks:

MOQ: 10pcs.

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Customizable Service: Non-metallic liquid tight conduit fittings customizable is workable for us. Such as sizes, logo, packing quantity, packages etc.
