Product name :  Nylon Cable Glands
Material : Polyamide(Nylon)
 Enlarge Image                   Back



Details:

Nylon Cable Glands



■ Product introduction:

1. Material: pa66, rubber

2. Thread: metric(long thread and short thread), PG, G(PF), NPT

3. Working Temperature: -40℃~+120℃

4. Feature: Nylon cable glands can hold cable firmly and have a wider cable range. They are widely used in wire and cable managements. And it can also resistant to salt water, weak acid, alcohol, oil, grease and common solvency.

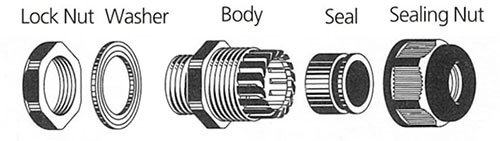

■ Product Structure:

Nylon Cable Glands Structure
Nylon Cable Glands Structure

■ Product Size:

Metric Thread(short and long thread)

Thread
Product Type
Cable Range
Thread Length
Package
M16*1.5(short)
MG16AS-05
5.3-3
10
50
MG16AS-08
7.8-4.5
10
50
MG16A-10-ST
10-6
10
50
MG16AL-11-ST
11-7
10
50
M20*1.5(short)
MG20AS-06
7-4
10
50
MG20AS-10
10-6
10
50
MG20A-10-ST
11-7
10
50
MG20A-14-ST
14-9
10
50
MG20AL-15-ST
14.7-11
10
50
M25*1.5(short)
MG25AS-10
11-7
12
50
MG25AS-14
14-9
12
50
MG25A-16-ST
16-12
10
50
MG25A-18-ST
18-14
10
50
MG25AL-19-ST
19-14.5
10
50
M32*1.5(short)
MG32AS-16
16-12
12
10
MG32AS-28
18-14
12
10
MG32A-22-ST
22-16
11
10
MG32A-25-ST
25-18
11
10
MG32AL-26-ST
26.3-21.5
10
10
M40*1.5(short)
MG40A-25-ST
25-21
12
10
MG40A-30-ST
30-24
12
10
M50*1.5(short)
MG50A-32-ST
32-26
15
10
MG50A-39-ST
41-31
15
10
M63*1.5(short)
MG63A-46-ST
46-40
15
10
MG63A-49-ST
51-44
15
10
M12*1.5(long)
MG12A-05
5.3-3
9
50
MG12A-08
7.8-4.5
9
50
M16*1.5(long)
MG16A-06
7-4
15
50
MG16A-10
10-6
15
50
MG16AL-11
11-7
15
50
M20*1.5(long)
MG20AM-08
8.8-5
15
50
MG20A-10
11-7
15
50
MG20AM-11
12-7
15
50
MG20A-14
14-9
15
50
MG20AL-15
14.7-11
15
50
M25*1.5(long)
MG25A-16
16-12
15
50
MG25A-18
18-14
15
50
MG25A-19
19-14.5
15
50
M32*1.5(long)
MG32A-22
22-16
15
10
MG32A-25
25-18
15
10
MG32AL-26
26.3-21.5
15
10
M40*1.5(long)
MG40A-25
25-21
20
10
MG40A-30
30-24
20
10
M50*1.5(long)
MG50A-32
32-26
22
10
MG50A-39
41-31
22
10
M63*1.5(long)
MG63A-46
46-40
25
10
MG63A-49
51-44
25
10
M75*5(long)
MG75A-56
56-50
25
2
MG75A-66
66-56
25
2
M90*2(long)
MG90A-68
68-58
25
2
MG90A-77
77-66
25
2

PG Thread

Thread
Product Type
Cable Range
Thread Length
Package
PG7
PGA7-05
5.3-3
8.5
50
PGA7-08
7.8-4.5
8.5
50
PG9
PGA9-05
5.3-3
9
50
PGA9-08
7.8-4.5
9
50
PGA9L-10
10.2-6
10
50
PG11
PGA11-06
7-4
10
50
PGA11-10
10-6
10
50
PGA11L-14
14-9
10
50
PG13.5
PGA13.5-08
8.8-5
10
50
PGA13.5-11
12-7
10
50
PGA13.5L-14
14-9
10
50
PG16
PGA16-10
11-7
11
50
PGA16-14
14-9
11
50
PGA16L-16
16-12
12.5
50
PG21
PGA21-16
16-12
12.5
50
PGA21-18
18-14
12
50
PGA21L-19
19.5-14.5
12
50
PG29
PGA29-22
22-16
12
10
PGA29-25
25-18
12
10
PGA29L-27
27-22
12
10
PG36
PGA36-25
25-21
15
10
PGA36-30
30-24
15
10
PG48
PGA48-46
46-40
16
10
PGA48-49
51-44
16
10

G(PF) Thread

Thread
Product Type
Cable Range
Thread Length
Package
G(PF)1/4″
FGA13-05
5.3-3
9
50
FGA13-08
7.8-4.5
9
50
G(PF)3/8″
FGA17-06
7-4
10
50
FGA17-10
10-6
10
50
G(PF)1/2″
FGA21-06
7-4
10
50
FGA21M-08
8.8-5
10
50
FGA21S-10
10-6
10
50
FGA21L-10
11-7
10
50
FGA21M-11
12-7
10
50
FGA21L-14
14-9
10
50
FGA21L-15
15-11
10
50
G(PF)3/4″
FGA26L-10
11-7
12
50
FGA26S-14
14-9
12
50
FGA26-16
16-12
12.5
50
FGA26-18
18-14
12.5
50
FGA26L-19
19.5-14.5
15
50
G(PF)1″
FGA33S-16
16-12
12
10
FGA33S-18
18-14
12
10
FGA33L-22
22-16
15
10
FGA33L-25
25-18
15
10
FGA33L-27
27-22
15
10
G(PF)1-1/4″
FGA42-25
25-21
15
10
FGA42L-30
30-24
15
10
G(PF)1-1/2″
FGA48-32
32-26
20
10
FGA48-39
41-31
20
10
G(PF)2″
FGA60-46
46-40
20
10
FGA60-49
51-44
20
10
G(PF)3″
FGA88-68
68-58
25
2
FGA88-77
77-66
25
2

NPT Thread

Thread
Product Type
Cable Range
Thread Length
Package
NPT3/8″
NPA17-06
7-4
13
50
NPA17-10
10-6
13
50
NPT1/2″
NPA21-10
11-7
13
50
NPA21-14
14-9
13
50
NPT3/4″
NPA26-16
16-12
15
50
NPA26-18
18-14
15
50
NPT1″
NPA33-22
22-16
17
10
NPA33-25
25-18
17
10

■ Payment Detail:

MOQ: 100pcs
Payments: T/T, Western Union, Paypal are available.
General Payment: 50% deposit paid in advance, T/T balance before delivery.
