Product name :  PVC Flexible Conduit
Material : Polyvinyl Chloride(PVC)
 Enlarge Image                   Back



Details:

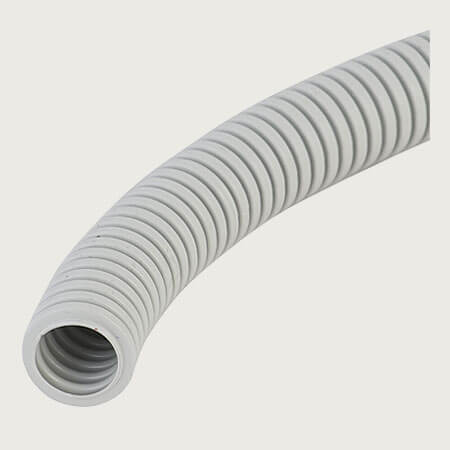

PVC Flexible Conduit



PVC Flexible Conduit

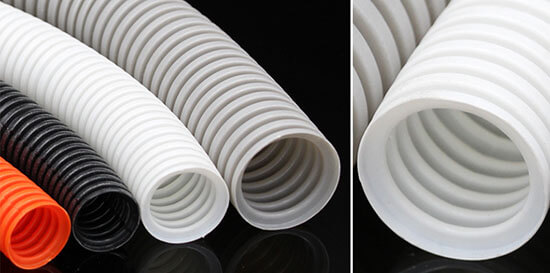

PVC Flexible Conduit Structure

Products introduction:

1. General Material: Polyvinyl chloride(pvc).           Polyamide(pa), Polypropylene(pp), Polyethylene(pe) are also workable.

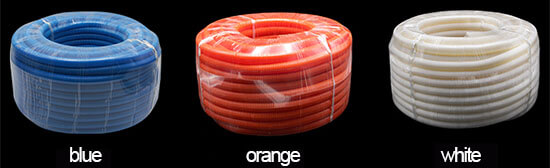

2. Colors: White (general), others could be customizable

3. Working Temperature: -20℃~+90℃

4. Our Thrength: PVC Flexible Conduit is used to protect wire and cables. Widely used in machinery, construction, auto, metro, automation etc.

5. Size:

Types Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-PVC-7 4.5 7.0 200
Flex-PVC-8 5.5 8.5 100
Flex-PVC-10 6.5 10.0 100
Flex-PVC-11 8.5 11.5 100
Flex-PVC-13 10.0 13.0 100
Flex-PVC-15 12.0 15.8 100
Flex-PVC-18 14.3 18.5 100
Flex-PVC-20 16.0 20.0 100
Flex-PVC-21 17.0 21.2 100
Flex-PVC-25 21.0 25.0 100
Flex-PVC-28 23.0 28.5 100
Flex-PVC-34 29.0 34.5 50
Flex-PVC-42 36.0 42.5 25
Flex-PVC-54 48.0 54.5 25
Flex-PVC-67 56.3 67.2 25
Flex-PVC-80 66.5 80.0 20
Flex-PVC-106 91.0 106.0 20

Tolerance: ±0.2mm

6. Package:

PVC Flexible Conduit



Remarks:

MOQ: 100m

Payment: Paypal, T/T, Western Union are available, others are negotiated.

Customizable Service: PVC Flexible Conduit customizable are vailable for us. Such as packing quantity, label, packages, color, fire-proof property, split etc.

If you have any questions about PVC Flexible Conduit, Welcome to send us emails for assistance.



PS: PVC is hard to burned, but is not mean fire-proof. Generally, we mix “fire retardant” during the protection to make them fire-proof.
