Product name :  Single Compression Cable Gland
Material :
 Enlarge Image                   Back



Details:

Single Compression Cable Gland

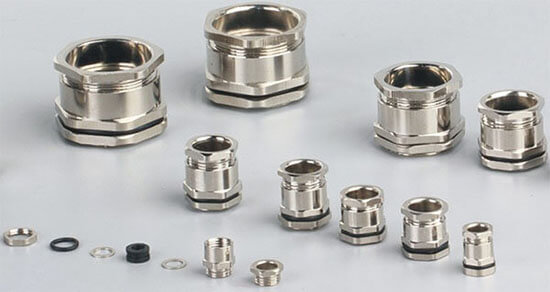

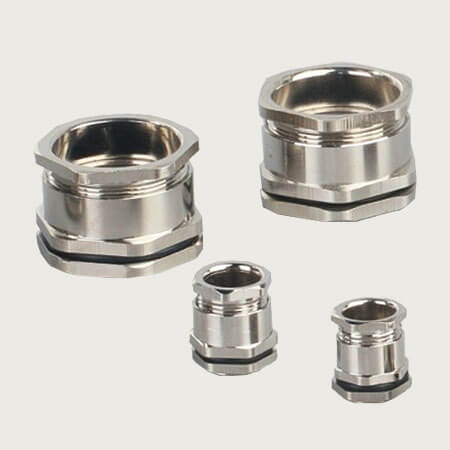

Single Compression Cable Gland Show
single compression cable gland

■ Product introduction:

1. Material: nickel plated brass

2. Thread: PG thread

3. Feature: single compression cable gland widely used in non armoured situation, to connect cable with others. Also provides a seal to protect cable from damages and water. Your can find them indoors and outdoors.

■ Product Structure:

Single Compression Cable Gland Structure
single compression cable gland structure

■ Product Size:

Specification
Thread
Cable Range
Thread O.D.
Thread Length
Joint Length
Spanner
FLEX-DCG7
PG7
5-7
12.5
5
16.5
10
FLEX-DCG9
PG9
6-12
15.2
6.2
17.5
10
FLEX-DCG11
PG11
11-15
18.6
6.5
17.5
10
FLEX-DCG13.5
PG13.5
14-18
20.4
7.5
20.5
10
FLEX-DCG16
PG16
17-26
22.5
8
22.2
10
FLEX-DCG21
PG21
22-27
28.3
8
23.5
10
FLEX-DCG29
PG29
26-33
37.0
8
25.5
10
FLEX-DCG36
PG36
32-41
47.0
10
29
10
FLEX-DCG42
PG42
40-49
54.0
11
33
10
FLEX-DCG48
PG48
48-57
59.3
12
34
10

■ Payment Detail:

MOQ: 10pcs

Payments: T/T, Western Union, Paypal are available.

General Payment: 30% deposit paid in advance, balance before delivery.
