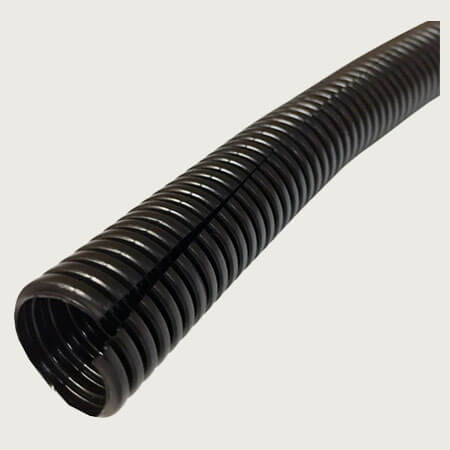

Split Wire Conduit

Products introduction: 1.  Material: Polyamide(pa)/nylon 2. Colors: default color is black, others are workable for us. 3. Working Temperature: -30℃~+120℃(+140℃ in a short time) 4. Certificates: SGS, CE, ISO9001:2008 5. Function: Split wire loom is used to protect the wire and cables, especially in wire harness. Such as automotive wiring harness, motor wiring harness etc. split wire conduit is us ...
  • PRODUCT DETAIL

Products introduction:

1.  Material:

Polyamide(pa)/nylon

2. Colors:

default color is black, others are workable for us.

3. Working Temperature:

-30℃~+120℃(+140℃ in a short time)

4. Certificates:

SGS, CE, ISO9001:2008

5. Function:

Split wire loom is used to protect the wire and cables, especially in wire harness. Such as automotive wiring harness, motor wiring harness etc.

split wire conduit is used for wire harness
split wire conduit is used for wire harness

6. Size Chart:

Types Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-PA-7 4.5 7.0 200
Flex-PA-8 5.5 8.5 100
Flex-PA-10 6.5 10.0 100
Flex-PA-11 8.5 11.5 100
Flex-PA-13 10.0 13.0 100
Flex-PA-15 12.0 15.8 100
Flex-PA-18 14.3 18.5 100
Flex-PA-20 16.0 20.0 100
Flex-PA-21 17.0 21.2 100
Flex-PA-25 21.0 25.0 100
Flex-PA-28 23.0 28.5 100
Flex-PA-34 29.0 34.5 50
Flex-PA-42 36.0 42.5 25
Flex-PA-54 48.0 54.5 25
Flex-PA-67 56.3 67.2 25
Flex-PA-80 66.5 80.0 20
Flex-PA-106 91.0 106.0 20

 Tolerance: ±0.2mm, split and non split are workable for us.

7. Warehouse
split wire conduit general sizes are in stock
split wire conduit general sizes are in stock



Payments Details:

MOQ: 100m
Payments: T/T, Western Union, Paypal are available. Others are negotiated.
Custom Service: split wire conduit custom service is workable for us. Such as materials, sizes, packing quantity, packages, split or not, fire-proof, pull the wire in etc.
