Product name :  Galvanized Steel Conduit
Material : Galvanized Steel(GI)
 Enlarge Image                   Back



Details:

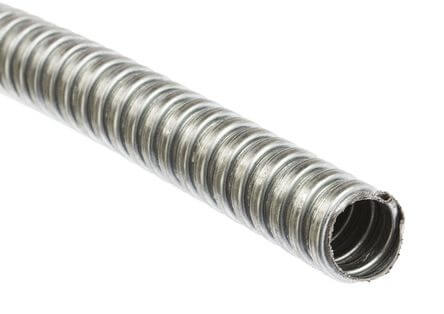

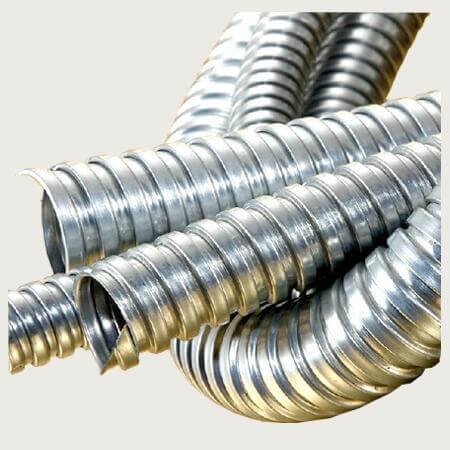

Galvanized Steel Conduit



Galvanized Steel Conduit Detail
1. Detail:

Material
Galvanized steel
Color
Silver
Temperature
-10℃~ 100℃
Characteristics
1.The counter-lock structure provide a powerful tensile resistance, hard to break and deform
2. High flexibility.
Usage field
Power plant, Power transmission system, communication system, building factory, metro, train, transportation system project, machines, automation. And protecting the electrical wire or cable outside the construction and machine.
Using method
Inserting the wire or cable into the conduit and the equipped with matched connector.

2. Size:

Types Inch Inner Diameter(mm) Outer Diameter(mm) Packing Quantity(m)
FLEX-DX-Φ6 3/16″ 5.7~6.0 8.20±0.25 100
FLEX-DX-Φ8 1/4″ 7.8~8.1 11.00±0.30 100
FLEX-DX-Φ10 5/16″ 9.7~10.0 13.50±0.35 50
FLEX-DX-Φ12 3/8″ 12.3~12.6 15.50±0.35 50
FLEX-DX-Φ16 1/2″ 15.7~16.0 20.00±0.35 50
FLEX-DX-Φ20 3/4″ 19.7~20.0 24.30±0.40 50
FLEX-DX-Φ25 1″ 25.3~25.8 30.30±0.45 50
FLEX-DX-Φ32 1-1/4″ 32.3~32.8 38.00±0.50 25
FLEX-DX-Φ38 1-1/2″ 38.3~38.8 45.00±0.60 25
FLEX-DX-Φ51 2″ 50.0~50.5 58.00±1.00 20
FLEX-DX-Φ64 2-1/2″ 62.5~63.2 72.50±1.50 10
FLEX-DX-Φ75 3″ 73.0~73.7 83.50±2.00 10
FLEX-DX-Φ100 4″ 97.5~98.5 108.50±3.00 10

3. Payment Details:
MOQ: 100m
Payments: T/T, Western Union, Paypal are available. 35% deposit, balance before delivery.
Customizable Service: materials, sizes, logo, packing quantity, packages customizable service are workable.
