Wire Loom Tee Connectors
- PRODUCT DETAIL
Products:
Materials:
Nylon(UL approved PA66)
Color:
black(general)
Temperature:
-40℃~+125℃ (+140℃ in a short time)
Usage:
Wire loom tee connectors are widely used in wire loom harness industry, to fix and manage plastic flexible conduit or wire loom tubing.
Brand:
FlexGlory, China
Show:

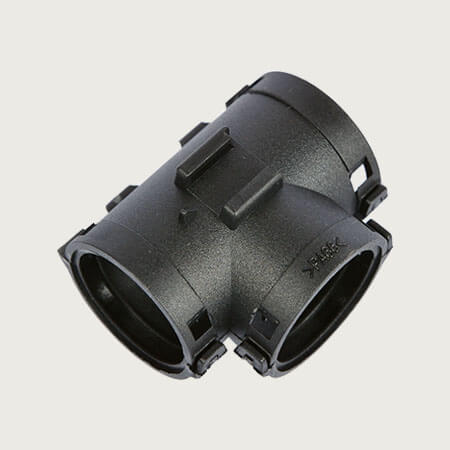

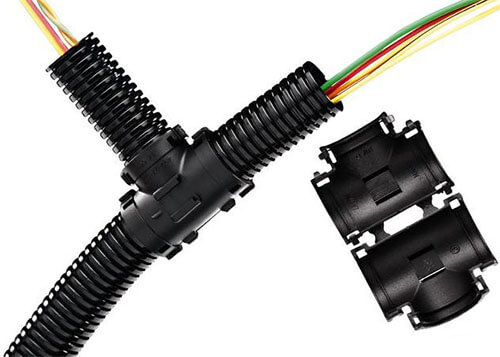

wire loom tee connectors show
Structure:

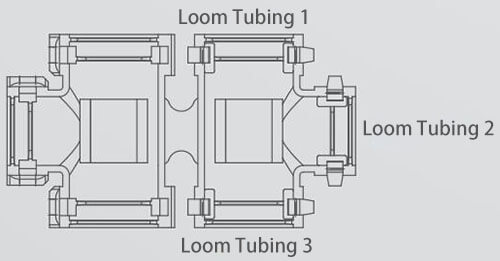

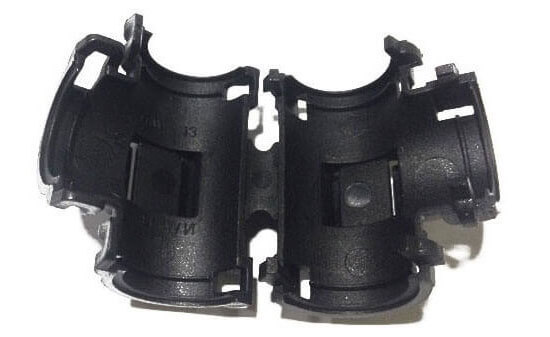

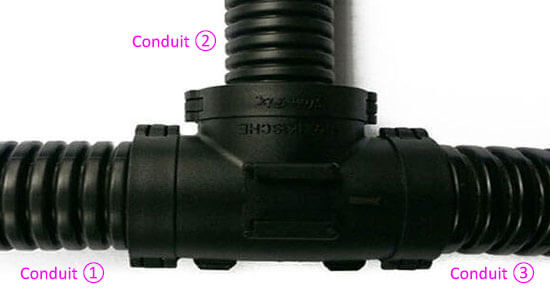

wire loom tee connectors structure show
Size Chart:
| Part No. | Left Loom Tubing 1 | Middle Loom Tubing 2 | Right Loom Tubing 3 | |||
|
Inch Size
|
I.D.*O.D.(mm) |
Inch Size
|
I.D.*O.D.(mm) |
Inch Size
|
I.D.*O.D.(mm) | |
| WLT-7/7/7 | 1/8″ | 4.5*7.0 | 1/8″ | 4.5*7.0 | 1/8″ | 4.5*7.0 |
| WLT-10/7/7 | 1/4″ | 7.5*10.0 | 1/8″ | 4.5*7.0 | 1/8″ | 4.5*7.0 |
| WLT-10/7/10 | 1/8″ | 4.5*7.0 | 1/4″ | 7.5*10.0 | ||
| WLT-10/10/10 | 1/4″ | 7.5*10.0 | 1/4″ | 7.5*10.0 | ||
| WLT-13/7/10 | 3/8″ | 10.0*13.0 | 1/8″ | 4.5*7.0 | 1/4″ | 7.5*10.0 |
| WLT-13/10/13 | 1/4″ | 7.5*10.0 | 3/8″ | 10.0*13.0 | ||
| WLT-13/13/13 | 3/8″ | 10.0*13.0 | 3/8″ | 10.0*13.0 | ||
| WLT-16/10/10 | 1/2″ | 12.0*16.0 | 1/4″ | 7.5*10.0 | 1/4″ | 7.5*10.0 |
| WLT-16/10/16 | 1/4″ | 7.5*10.0 | 1/2″ | 12.0*16.0 | ||
| WLT-16/13/13 | 3/8″ | 10.0*13.0 | 3/8″ | 10.0*13.0 | ||
| WLT-16/13/16 | 3/8″ | 10.0*13.0 | 1/2″ | 12.0*16.0 | ||
| WLT-16/16/16 | 1/2″ | 12.0*16.0 | 1/2″ | 12.0*16.0 | ||
| WLT-21/10/16 | 5/8″ | 17.0*21.0 | 1/4″ | 7.5*10.0 | 1/2″ | 12.0*16.0 |
| WLT-21/10/21 | 1/4″ | 7.5*10.0 | 5/8″ | 17.0*21.0 | ||
| WLT-21/13/16 | 3/8″ | 10.0*13.0 | 1/2″ | 12.0*16.0 | ||
| WLT-21/13/21 | 3/8″ | 10.0*13.0 | 5/8″ | 17.0*21.0 | ||
| WLT-21/16/16 | 1/2″ | 12.0*16.0 | 1/2″ | 12.0*16.0 | ||
| WLT-21/16/21 | 1/2″ | 12.0*16.0 | 5/8″ | 17.0*21.0 | ||
| WLT-21/21/13 | 5/8″ | 17.0*21.0 | 3/8″ | 10.0*13.0 | ||
| WLT-21/21/16 | 5/8″ | 17.0*21.0 | 1/2″ | 12.0*16.0 | ||
| WLT-21/21/21 | 5/8″ | 17.0*21.0 | 5/8″ | 17.0*21.0 | ||
| WLT-25/10/21 | 3/4″ | 20.0*25.0 | 1/4″ | 7.5*10.0 | 5/8″ | 17.0*21.0 |
| WLT-25/10/25 | 1/4″ | 7.5*10.0 | 3/4″ | 20.0*25.0 | ||
| WLT-25/13/13 | 3/8″ | 10.0*13.0 | 3/8″ | 10.0*13.0 | ||
| WLT-25/13/21 | 3/8″ | 10.0*13.0 | 5/8″ | 17.0*21.0 | ||
| WLT-25/13/25 | 3/8″ | 10.0*13.0 | 3/4″ | 20.0*25.0 | ||
| WLT-25/16/21 | 1/2″ | 12.0*16.0 | 5/8″ | 17.0*21.0 | ||
| WLT-25/16/25 | 1/2″ | 12.0*16.0 | 3/4″ | 20.0*25.0 | ||
| WLT-25/21/16 | 5/8″ | 17.0*21.0 | 1/2″ | 12.0*16.0 | ||
| WLT-25/21/21 | 5/8″ | 17.0*21.0 | 5/8″ | 17.0*21.0 | ||
| WLT-25/25/21 | 3/4″ | 20.0*25.0 | 5/8″ | 17.0*21.0 | ||
| WLT-25/25/25 | 3/4″ | 20.0*25.0 | 3/4″ | 20.0*25.0 | ||
| WLT-28/25/25 | 7/8″ | 23.0*28.5 | 3/4″ | 20.0*25.0 | 3/4″ | 20.0*25.0 |
| WLT-28/28/28 | 7/8″ | 23.0*28.5 | 7/8″ | 23.0*28.5 | ||
| WLT-34/21/21 | 1″ | 29.0*34.5 | 5/8″ | 17.0*21.0 | 5/8″ | 17.0*21.0 |
| WLT-34/21/34 | 5/8″ | 17.0*21.0 | 1″ | 29.0*34.5 | ||
| WLT-34/34/34 | 1″ | 29.0*34.5 | 1″ | 29.0*34.5 | ||
Shpping & Payment:
MOQ:
100pcs.
Payments:
T/T, Western Union, Paypal are available. Others are negotiated.
Customizable Service:
Wire loom tee connectors customizable is workable for us. Such as sizes, logo, packing quantity, packages etc.
