Product name :  Stainless Flexible Conduit
Material : Interlocked
 Enlarge Image                   Back



Details:

Stainless Steel Flexible Conduit



■ Products Description:

1. Structure show:

stainless steel flexible conduit Structure
stainless steel flexible conduit is inner lock, also called double lock.

2. Product show:

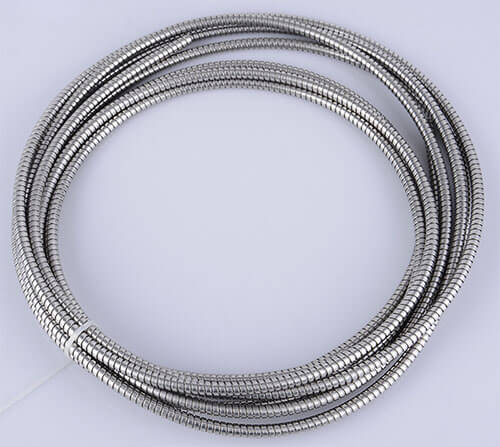

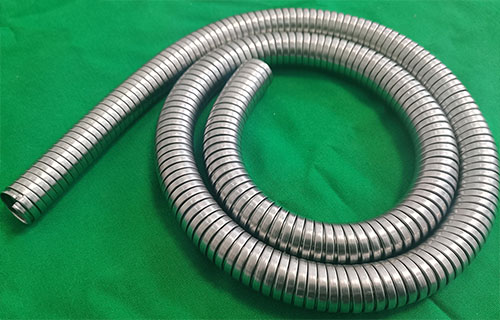

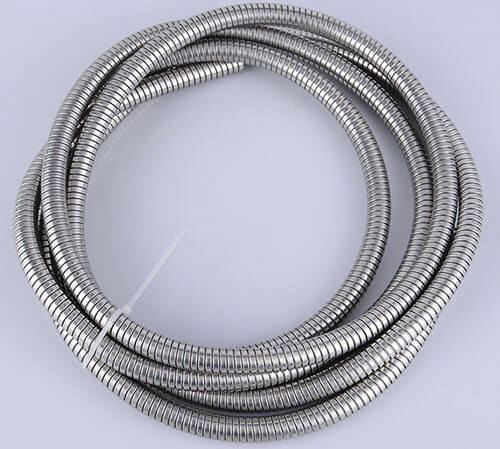

stainless steel flexible conduit show
stainless steel flexible conduit show

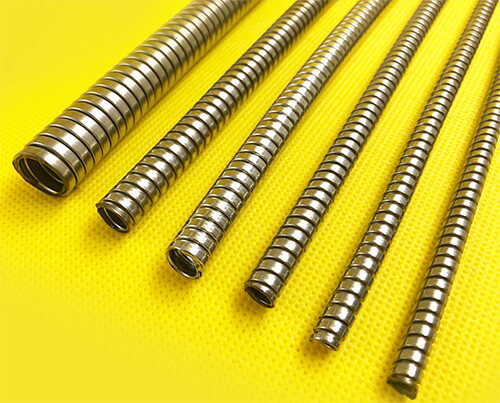

stainless steel flexible conduit show(I.D.4.0mm)
stainless steel flexible conduit show(I.D.4.0mm)

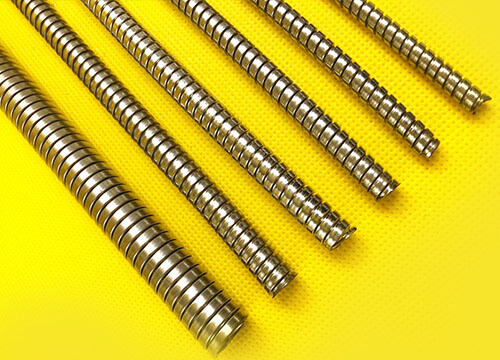

stainless steel flexible conduit show(I.D.10.0mm)
stainless steel flexible conduit show(I.D.10.0mm)
3. Materials:

304 stainless steel, 316 stainless steel.

general sizes of 304 stainless steel flexible conduit are in stock, 316 stainless steel flexible conduit for customizable service.

4. Usage:

stainless steel flexible conduit is widely used in wire and cable protection. especially in electronic communication.

5. Strength:

with the best available materials, and the surface is smooth. with better appearance, flexible and stable properties.

6. Sizes:

Types Inside Diameter(inch) Inside Diameter(mm) Outside Diameter(mm) Quantity Per Roll
Flex-DM-4 0.16″ 4.0 6.0 100m(327feet)
Flex-DM-5 0.20″ 5.0 7.0 100m(327feet)
Flex-DM-6 0.24″ 6.0 8.0 100m(327feet)
Flex-DM-7 0.30″ 7.4 10.0 100m(327feet)
Flex-DM-10 0.40″ 10.0 13.0 100m(327feet)
Flex-DM-12 0.50″ 12.5 15.7 100m(327feet)
Flex-DM-16 0.64″ 16.1 19.5 100m(327feet)
Flex-DM-19 0.75″ 19.1 22.2 50m(164feet)
Flex-DM-21 0.82″ 20.8 24.3 50m(164feet)
Flex-DM-22 0.87″ 22.0 25.7 50m(164feet)
Flex-DM-26 1.03″ 26.0 30.0 50m(164feet)
Flex-DM-34 1.34″ 34.0 39.0 30m(100feet)
Flex-DM-39 1.54″ 39.0 44.0 30m(100feet)
Flex-DM-51 2.00″ 51.0 56.0 30m(100feet)



■ Order details:

MOQ: 100m.

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Custom service:  stainless steel flexible conduit custom service is workable for us. Such as materials, sizes, packing quantity, packages etc.
