Corrugated Flexible Conduit

Products: Materials: nylon(polyamide) Customizable Materials: polypropylene(PP) or polyethylene(PE) is workable for us. Colors: black(general), others could be custom. Temperature: -40℃~+125℃ (+140℃ in a short time) Certificates: ROHS, CE, ISO9001:2015 Product Show: corrugated flexible conduit show Size: Part No. Inch Size Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m) Flex-PA-7 ...
  • PRODUCT DETAIL

Products:

Materials:

nylon(polyamide)

Customizable Materials:

polypropylene(PP) or polyethylene(PE) is workable for us.

Colors:

black(general), others could be custom.

Temperature:

-40℃~+125℃ (+140℃ in a short time)

Certificates:

ROHS, CE, ISO9001:2015

Product Show:

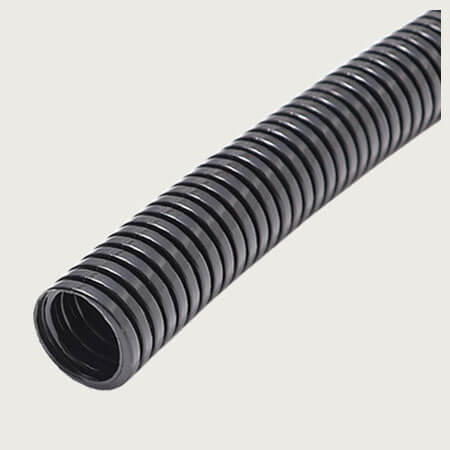

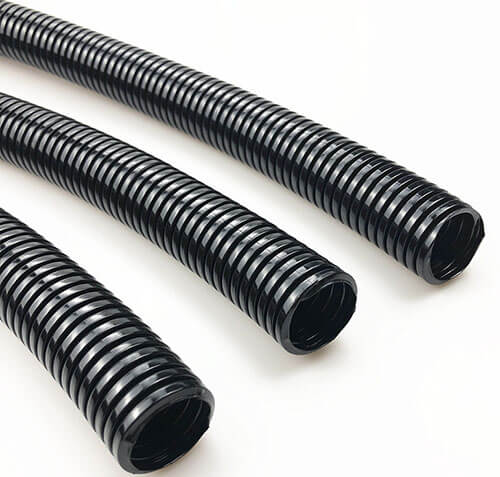

corrugated flexible conduit show
corrugated flexible conduit show

Size:

Part No. Inch Size Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-PA-7 4.5 7.0 200
Flex-PA-10 1/4″ 6.5 10.0 100
Flex-PA-11 8.5 11.5 100
Flex-PA-13 5/16″ 10.0 13.0 100
Flex-PA-14 11.0 14.0 100
Flex-PA-15 3/8″ 12.0 15.8 100
Flex-PA-18 14.3 18.5 100
Flex-PA-20 16.0 20.0 100
Flex-PA-21 1/2″ 17.0 21.2 100
Flex-PA-25 21.0 25.0 100
Flex-PA-28 3/4″ 23.0 28.5 100
Flex-PA-32 25.0 32.0 50
Flex-PA-34 1″ 29.0 34.5 50
Flex-PA-42 1-1/4″ 36.0 42.5 25
Flex-PA-54 2″ 48.0 54.5 25
Flex-PA-67 2-1/2″ 56.3 67.2 25
Flex-PA-80 3″ 66.5 80.0 20
Flex-PA-106 4″ 91.0 106.0 20

Tolerance: ±0.2mm, split and non split are workable for us.

Packages:

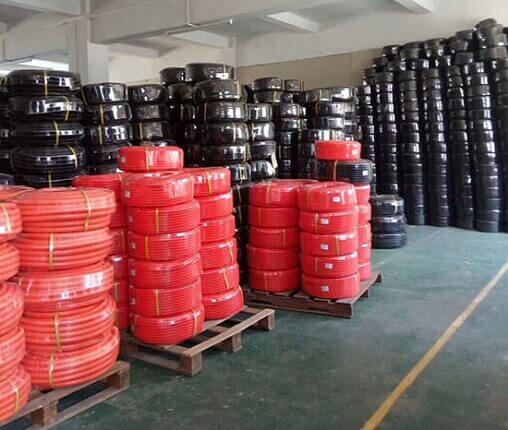

corrugated flexible conduit packages
corrugated flexible conduit packages



Remarks:

MOQ:

100m

Payment:

PayPal, T/T, Western Union are available, others are negotiated.

General Payment:

30% deposit paid in advance, T/T balance before delivery.

Customizable Service:
corrugated flexible conduit customizable service is available for us. Such as packing quantity, label, packages, color, fire-proof property, split etc.
