Home>Products>Flexible Metallic Conduit

Product name : Flexible Metallic Conduit

Material : Galvanized Steel(GI)

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

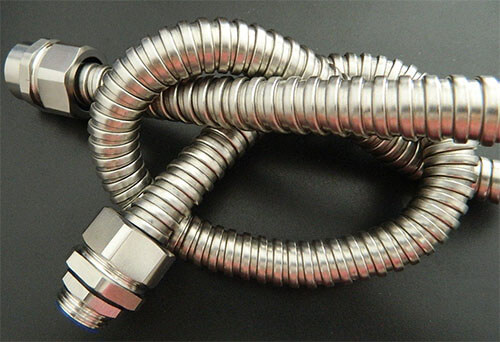

Flexible Metallic Conduit

Products introduction:

1. Material: Galvanized steel. Stainless steel is workable.

2. Market Location: Middle and High-grade Products

3. Our Thrength: With the best available materials, and the surface is smooth. With better flexible and stable properties.

4. Function: Flexible Metallic Conduit is widely used in the machinery, metra, construction. The general material of Flexible Metallic Conduit is galvanized steel, with competitive price and wider using place. Besides the material, the thickness and width of steel could also effect its service life. Please take the factors into consideration before you place an order.

5. Size:

Types	Inch Size	Inside Diameter(mm)	Outside Diameter(mm)	Length of Roll(m)
Flex-GM-5	3/16″	5.70~6.00	8.20~8.45	100
Flex-GM-7	1/4″	7.80~8.10	11.00~11.30	100
Flex-GM-9	5/16″	9.70~10.00	13.50~13.85	50
Flex-GM-12	3/8″	12.30~12.60	15.50~15.85	50
Flex-GM-15	1/2″	15.70~16.00	20.00~20.35	50
Flex-GM-19	3/4″	19.70~20.00	24.30~24.70	50
Flex-GM-25	1″	25.30~25.80	30.30~30.75	50
Flex-GM-32	1-1/4″	32.30~32.80	38.00~38.50	25
Flex-GM-38	1-1/2″	38.30~38.80	45.00~45.60	25
Flex-GM-50	2″	50.00~50.50	58.00~59.00	20
Flex-GM-62	2-1/2″	62.50~63.20	72.50~74.00	10
Flex-GM-73	3″	73.00~73.70	83.50~85.50	10
Flex-GM-97	4″	97.50~98.50	108.50~111.50	10

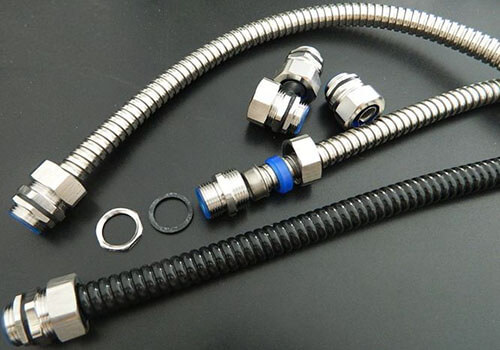

6. Flexible Metallic Conduit with Connector:

Remarks:

MOQ: 100m

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

General Payment: 30% deposit, T/T balance before delivery.

Customizable Service: Flexible metallic conduit customizable is workable for us. Such as materials, sizes, logo, packing quantity, packages etc.
