Home>Products>Metal Flexible Conduit>Liquid Tight Flexible Conduit
Product name :  Liquid Tight Flexible Conduit
Material : PVC + GI
 Enlarge Image                   Back



Details:

Liquid Tight Flexible Conduit



■ Product Show:

1. Structure:

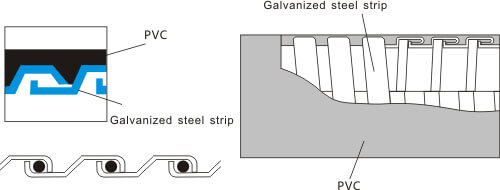

liquid tight flexible conduit structure
liquid tight flexible conduit structure – interlock

2. Show:

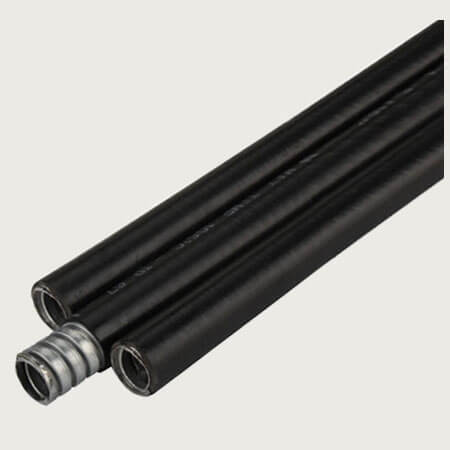

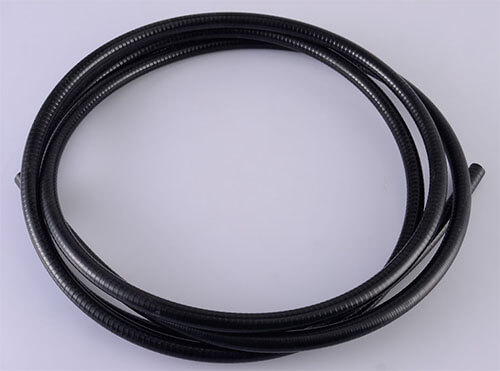

liquid tight flexible conduit show
liquid tight flexible conduit show

3. Materials:

galvanised steel with PVC(default), 304stainless steel with PVC(default)

316 stainless steel also workable for us.

4. Usage:

liquid tight flexible conduit are widely used in various engineering,ship,aviation,electronics,machinery,mineral industries.

5. Strength:

with the best available materials, and the surface is smooth. with better appearance, flexible and stable properties.

6. Sizes:

galvanised steel:

Types Inch Size Inner Diameter(mm) Outer Diameter(mm)
Flex-LTGI-10 1/4″ 9.5 14.1
Flex-LTGI-13 3/8″ 12.5 17.7
Flex-LTGI-16 1/2″ 16.1 21.5
Flex-LTGI-21 3/4″ 20.8 26.7
Flex-LTGI-26 1″ 26.0 33.0
Flex-LTGI-34 1-1/4″ 34.0 42.2
Flex-LTGI-39 1-1/2″ 39.0 47.4
Flex-LTGI-51 2″ 51.0 59.6

304stainless steel:

Types Inch Size Inner Diameter(mm) Outer Diameter(mm)
Flex-LTSS-10 1/4″ 9.5 14.1
Flex-LTSS-13 3/8″ 12.5 17.7
Flex-LTSS-16 1/2″ 16.1 21.5
Flex-LTSS-21 3/4″ 20.8 26.7
Flex-LTSS-26 1″ 26.0 33.0
Flex-LTSS-34 1-1/4″ 34.0 42.2
Flex-LTSS-39 1-1/2″ 39.0 47.4
Flex-LTSS-51 2″ 51.0 59.6

7. Packages:

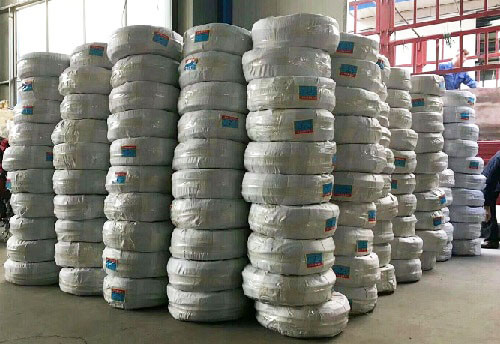

liquid tight flexible conduit packages
above is the general package. we could also add palet for export



■ Order details:

MOQ: 100m.

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Custom service: liquid tight flexible conduit custom service is workable for us. Such as materials, sizes, packing quantity, packages etc.
