Home>Products>Wire Loom>Split Wire Loom Tubing

Product name : Split Wire Loom Tubing

Material : PA or PP or PE

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

Split Wire Loom Tubing

Products introduction:

1. Products Show:

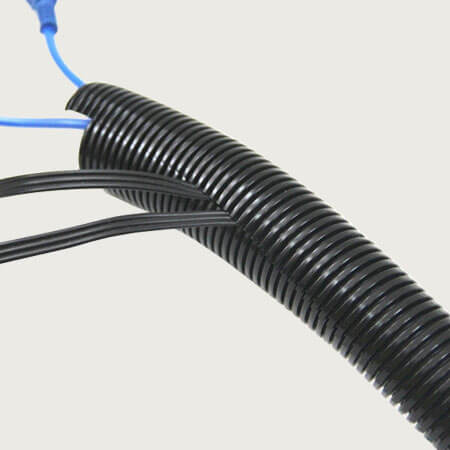

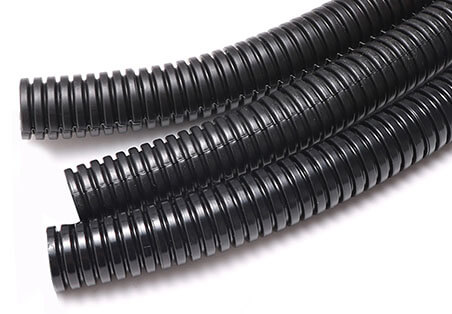

split wire loom tubing

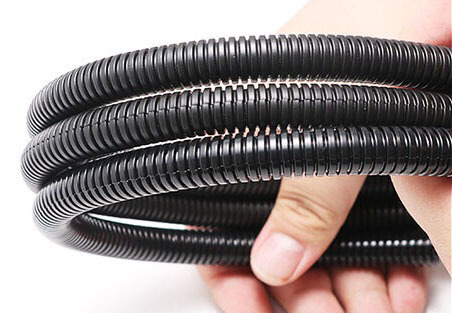

split wire loom tubing

2. Material:

Polypropylene(pp) is the default material for wire harness cable protection.

Polyamide(pa) and polyethylene(pe) are also workable.

3. Split or Non Split:

Split and non split are also workable for us. please let me know your requirements in email.

4. Colors:

Black color, other colors could be custom.

5. Working Temperature:

-20℃~+110℃(+130℃ in a short time)

6. Certificates:

SGS, CE, ISO9001:2008

7. Function:

Split wire loom tubing is used to protect the wire and cables, especially in wire harness. Such as automotive wiring harness, motor wiring harness etc.

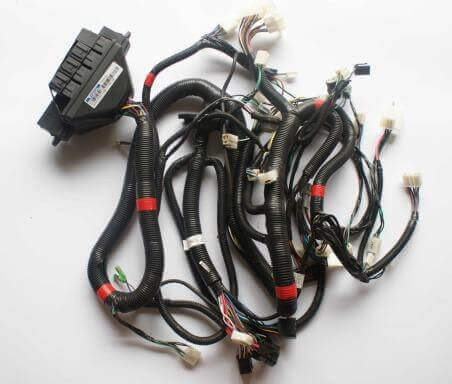

split wire loom usage
split wire loom tubing is used in wire harness

8. Size Chart:

Types	Inch Size	Inside Diameter(mm)	Outside Diameter(mm)	Length of Roll(m)
Flex-SPP-7		4.5	7.0	200
Flex-SPP-10	1/4″	6.5	10.0	100
Flex-SPP-11		8.5	11.5	100
Flex-SPP-13	5/16″	10.0	13.0	100
Flex-SPP-14		11.0	14.0	100
Flex-SPP-15	3/8″	12.0	15.8	100
Flex-SPP-18		14.3	18.5	100
Flex-SPP-20		16.0	20.0	100
Flex-SPP-21	1/2″	17.0	21.2	100
Flex-SPP-25		21.0	25.0	100
Flex-SPP-28	3/4″	23.0	28.5	100
Flex-SPP-32		25.0	32.0	50
Flex-SPP-34	1″	29.0	34.5	50
Flex-SPP-42	1-1/4″	36.0	42.5	25
Flex-SPP-54	2″	48.0	54.5	25
Flex-SPP-67	2-1/2″	56.3	67.2	25
Flex-SPP-80	3″	66.5	80.0	20
Flex-SPP-106	4″	91.0	106.0	20
Tolerance: ±0.2mm, split and non split are workable for us.

9. Warehouse

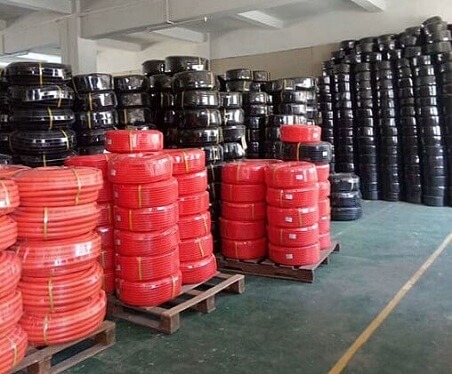

split wire loom warehouse
general sizes split wire loom tubing are in stock.

Remarks:

MOQ: 100m
Payments: T/T, Western Union, Paypal are available. Others are negotiated.
Custom Service: split wire loom tubing custom service is workable for us. Such as materials, sizes, packing quantity, packages, split or not, fire-proof, pull the wire in etc.
