Home>Products>PA Conduit>Corrugated Wire Loom

Product name : Corrugated Wire Loom

Material : Polyamide(PA)

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

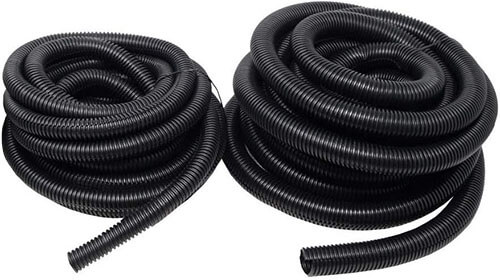

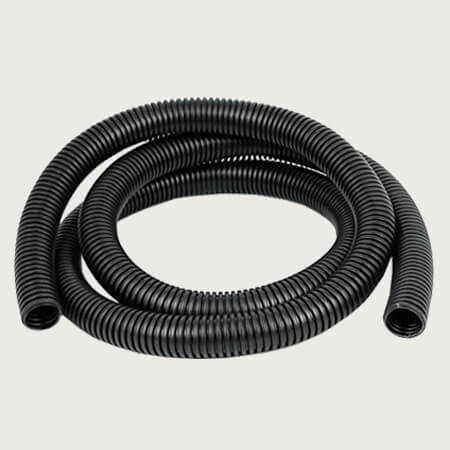

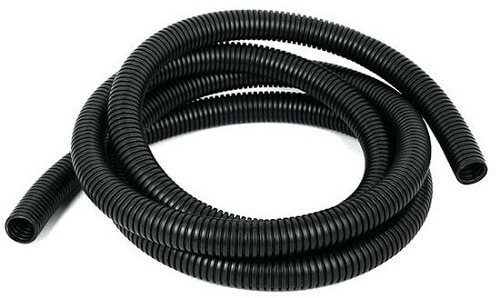

Corrugated Wire Loom

Products introduction:

1. Material:

polyamide(PA)

polyethylene(PE), polypropylene(PP) are also workable for us.

2. Colors:

black(general)

other colors are under custom service

3. Working Temperature:

-40℃~+135℃

4. Function:

corrugated wire loom is used to protect wire and cables. Nylon is the most durable and stable plastic material for it. Especially it can be recovered by itself after a terrible bending

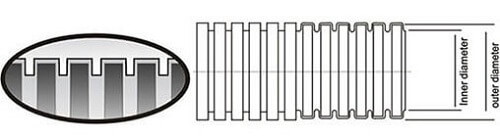

5. Size:

Types	Inch Size	Inside Diameter(mm)	Outside Diameter(mm)	Length of Roll(m)
Flex-PA-7		4.5	7.0	200
Flex-PA-10	1/4″	6.5	10.0	100
Flex-PA-11		8.5	11.5	100
Flex-PA-13	5/16″	10.0	13.0	100
Flex-PA-14		11.0	14.0	100
Flex-PA-15	3/8″	12.0	15.8	100
Flex-PA-18		14.3	18.5	100
Flex-PA-20		16.0	20.0	100
Flex-PA-21	1/2″	17.0	21.2	100
Flex-PA-25		21.0	25.0	100
Flex-PA-28	3/4″	23.0	28.5	100
Flex-PA-32		25.0	32.0	50
Flex-PA-34	1″	29.0	34.5	50
Flex-PA-42	1-1/4″	36.0	42.5	25
Flex-PA-54	2″	48.0	54.5	25
Flex-PA-67	2-1/2″	56.3	67.2	25
Flex-PA-80	3″	66.5	80.0	20
Flex-PA-106	4″	91.0	106.0	20
Tolerance: ±0.2mm, split and non split are workable for us.

6. Warehouse:

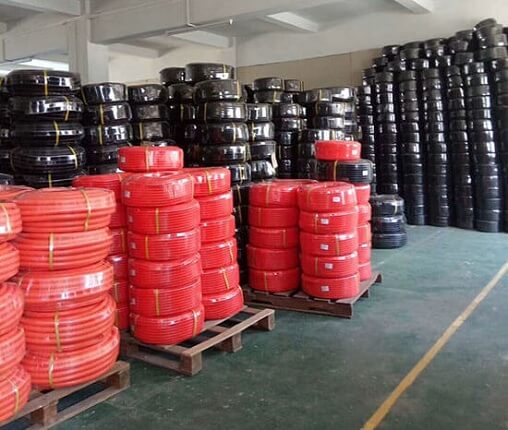

Corrugated Wire Loom Warehouse

Payment Details:

MOQ: 100m

General Terms: 30% deposit, T/T balance before delivery.

Payments Method: T/T, Western Union, Paypal are available. Others are negotiated.

Custom Service: corrugated wire loom custom service is workable for us. Such as materials, sizes, logo, packing quantity, packages, split, fire-proof etc.
