Product name :  Orange Flexible Conduit
Material : Polyamide(PA)
 Enlarge Image                   Back



Details:

Orange Flexible Conduit



Products introduction:

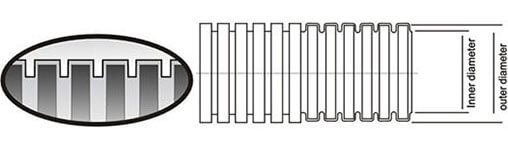

1. Structure:

Orange Flexible Conduit Structure

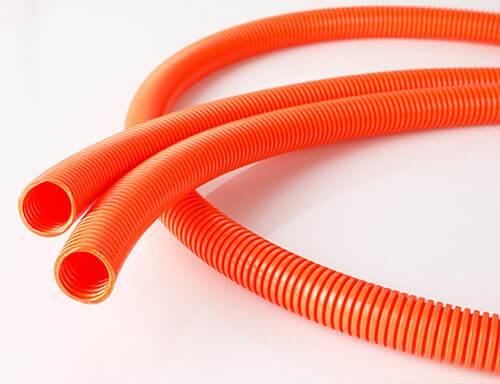

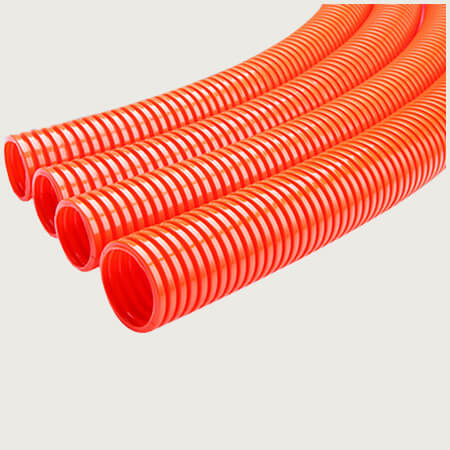

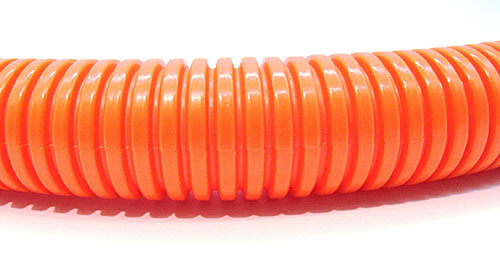

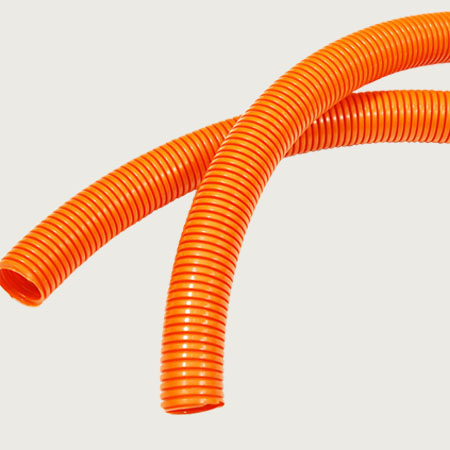

2. Product Show:

Orange Flexible Conduit Details

Orange Flexible Conduit Details

3. General Materials:

polyamida(PA), also called nylon.

polypropylene(PP), polyethylene(PE) are workable for us.

4. Fireproof Level:

V2 fireproof level orange flexible conduit are in stock.

If you need V0, please contact our sales.

5. Working Temperature:

-40℃~+130℃ (+140℃ in a short time)

6. Usage:

orange flexible conduit is widely used in wire and cable protection industry. Especially in motor industry.

7. Size Chart:

Types Inch Size Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-O-PA-7 4.5 7.0 200
Flex-O-PA-10 1/4″ 6.5 10.0 100
Flex-O-PA-11 8.5 11.5 100
Flex-O-PA-13 5/16″ 10.0 13.0 100
Flex-O-PA-14 11.0 14.0 100
Flex-O-PA-15 3/8″ 12.0 15.8 100
Flex-O-PA-18 14.3 18.5 100
Flex-O-PA-20 16.0 20.0 100
Flex-O-PA-21 1/2″ 17.0 21.2 100
Flex-O-PA-25 21.0 25.0 100
Flex-O-PA-28 3/4″ 23.0 28.5 100
Flex-O-PA-32 25.0 32.0 50
Flex-O-PA-34 1″ 29.0 34.5 50
Flex-O-PA-42 1-1/4″ 36.0 42.5 25
Flex-O-PA-54 2″ 48.0 54.5 25
Flex-O-PA-67 2-1/2″ 56.3 67.2 25
Flex-O-PA-80 3″ 66.5 80.0 20
Flex-O-PA-106 4″ 91.0 106.0 20

Tolerance: ±0.2mm, split and non split are workable for us.

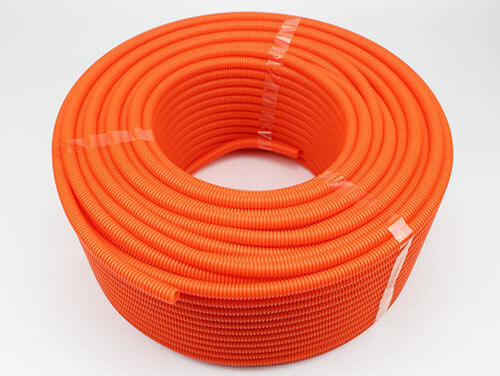

8. Package:

Orange Flexible Conduit Package

orange flexible conduit package.

For large quantity, we will use PE film covered with knitted bag outside.

For small order, we will use PE film covered with carton outside.



Order Details:

MOQ: 100m

Payments: T/T, Western Union, PayPal are available. Others are negotiated.

Custom Service: orange flexible conduit custom service is workable for us. Such as materials, sizes, logo, packing quantity, packages, split or not, fire-proof, pull the wire in etc.
