Elbow Cable Gland

■ Product Introduction: 1. Material: Nylon66(UL approved), rubber(EPDM approved) 2. Thread: Metric, PG 3. Working Temperature: -40℃~+100℃ 4. Feature: For cable outlet holes, all the cables can not easily entangled and waterproof respectively.   ■ Product Show: elbow cable gland show elbow cable gland structure   ■ Specifictaion: Metric Thread Thread Product Type Cable Range ...
  • PRODUCT DETAIL

■ Product Introduction:

1. Material:

Nylon66(UL approved), rubber(EPDM approved)

2. Thread:

Metric, PG

3. Working Temperature:

-40℃~+100℃

4. Feature:

For cable outlet holes, all the cables can not easily entangled and waterproof respectively.



■ Product Show:

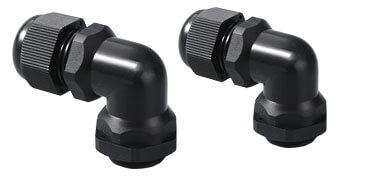

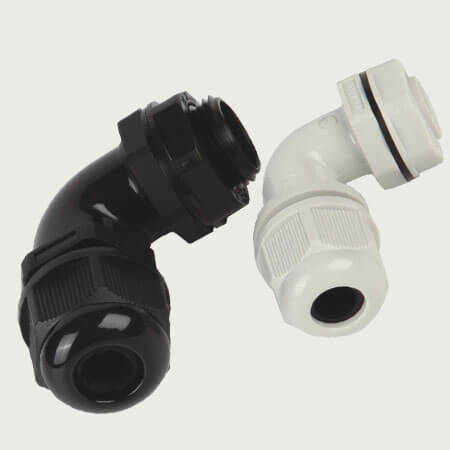

elbow cable gland show
elbow cable gland show

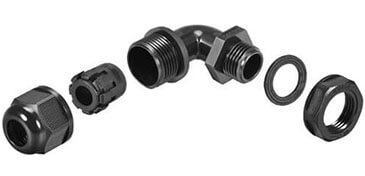

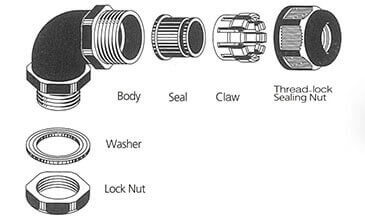

elbow cable gland structure
elbow cable gland structure



■ Specifictaion:

Metric Thread

Thread
Product Type
Cable Range
Thread Length
Package
M12*1.5
FLEX-WDL-M12A-5.5
3-5.5
8.5
50
FLEX-WDL-M12A-8
4-8
8.5
50
M16*1.5
FLEX-WDL-M16A-7
4-7
10
50
FLEX-WDL-M16A-10
6-10
10
50
M20*1.5
FLEX-WDL-M20A-11
6-11
15
50
FLEX-WDL-M20A-14
9-14
15
50
M25*1.5
FLEX-WDL-M25A-16
10-16
15
50
FLEX-WDL-M25A-18
13-18
15
50
M32*1.5
FLEX-WDL-M32A-22
15-22
15 10
FLEX-WDL-M32A-25
18-25
15 10
M40*1.5
FLEX-WDL-M40A-26
20-26
20 10
FLEX-WDL-M40A-31
24-31
20 10
M50*1.5
FLEX-WDL-M50A-33
25-33
20 5
FLEX-WDL-M50A-41
33-41
20 5

PG Thread(structure is different)

Thread
Product Type
Cable Range
Thread Length
Package
PG7
FLEX-WDL-PG7-6.5
3-6.5 8
100
PG9
FLEX-WDL-PG9-8
4-8 8
50
PG11
FLEX-WDL-PG11-10
5-10 8
50
PG13.5
FLEX-WDL-PG13.5-12
6-12 9
50
PG16
FLEX-WDL-PG16-14
10-14 10
50
PG21
FLEX-WDL-PG21-18
13-18 11 20
PG29
FLEX-WDL-PG29-25
18-25 11 20



■ Payment Detail:

MOQ:

50pcs

Payments:

T/T, Western Union, Paypal are available.

General Payment:

30% deposit in advance, balance payment before shipment.
