Home>Products>Metal Flexible Conduit>PVC Coated Metal Conduit

Product name : PVC Coated Metal Conduit

Material : PVC + GI

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

PVC Coated Flexible Metal Conduit

Products introduction:

1. Material:

galvanized steel with PVC coated

stainless steel with PVC also workable for us

2. Structure:

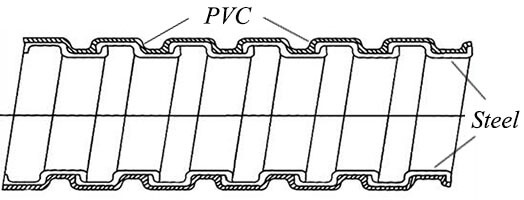

PVC Coated Flexible Metal Conduit Structure

3. Colors:

black and grey is the general color

other colors, please contact our sales

4. Working Temperature:

-10℃~+80℃

5. Certificates:

CE, Rohs, ISO9001:2008.

6. Strength:

compared with flexible metal conduit, PVC coated flexible conduit is more durable. Because coated PVC can protect flexible metal conduit well. Compare with liquid tight flexible conduit, it is more flexible and cheaper. So it is widely used in wire and cable protection industry. Like construction, electronic, electricity and machinery etc.

7. Show:

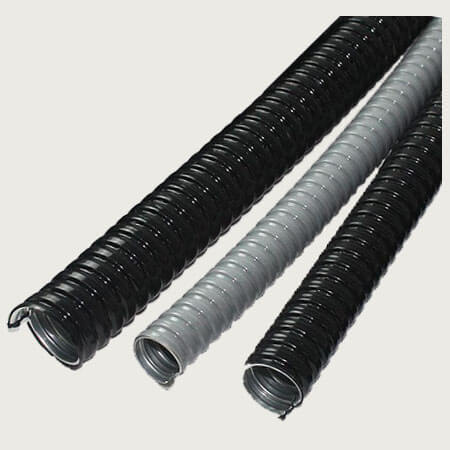

PVC Coated Flexible Metal Conduit Show

8. Size:

Types	Inch Size	Inside Diameter(mm)	Outside Diameter(mm)	Length Per Roll(m)
Flex-BS-6	3/16″	6.00	9.00	100
Flex-BS-8	1/4″	8.00	12.00	100
Flex-BS-10	5/16″	10.00	14.00	100
Flex-BS-12	3/8″	12.00	16.50	100
Flex-BS-15	1/2″	15.00	20.50	100
Flex-BS-20	3/4″	20.00	25.00	100
Flex-BS-25	1″	25.00	31.00	50
Flex-BS-32	1-1/4″	32.00	39.00	50
Flex-BS-38	1-1/2″	38.00	46.00	25
Flex-BS-51	2″	51.00	59.00	20
Flex-BS-64	2-1/2″	64.00	74.00	20
Flex-BS-75	3″	75.00	85.00	20
Flex-BS-100	4″	100.00	110.00	10
Flex-BS-125	5″	125.00	128.00	10
Flex-BS-150	6″	150.00	165.00	10

Remarks:

MOQ: 100m

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Custom Service: PVC coated flexible metal conduit custom service is workable for us. Such as material, sizes, logo, packing quantity, packages etc.
