Product name :  Stainless Steel Conduit
Material : Stainless Steel(SS)
 Enlarge Image                   Back



Details:

Stainless Steel Conduit



■ stainless steel conduit(single lock):

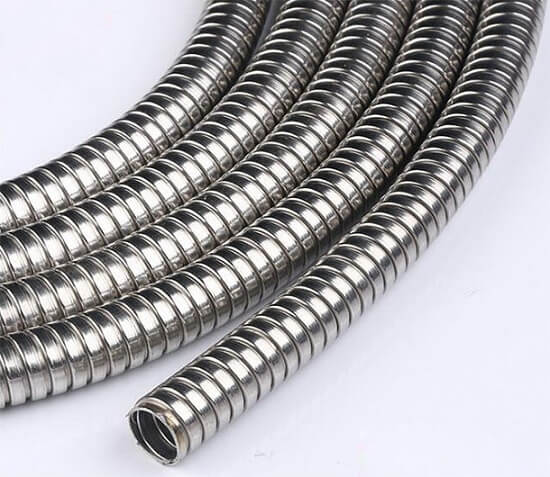

1. Product show:

Stainless Steel Conduit

2. Structure show:

Stainless Steel Conduit structure

3. Materials:

201 stainless steel. 304 stainless steel and galvanized steel are also workable.

4. Using Place:

Stainless steel conduit is widely used in wire and cable protection. Especially in electronic communication. The price depends on materials, thickness of stainless steel, the width of stainless steel.

5. Size:

Types Inch Size Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-SM-3 3.0 5.0 200
Flex-SM-4 4.0 6.0 200
Flex-SM-5 5.0 7.0 200
Flex-SM-6 3/16″ 6.0 8.0 200
Flex-SM-8 1/4″ 8.0 10.0 100
Flex-SM-10 5/16″ 10.0 13.0 100
Flex-SM-13 3/8″ 13.0 16.0 100
Flex-SM-16 1/2″ 16.0 20.0 100
Flex-SM-20 3/4″ 20.0 25.0 100
Flex-SM-25 1″ 25.0 31.0 50
Flex-SM-32 1-1/4″ 32.0 39.0 25
Flex-SM-38 1-1/2″ 38.0 46.0 25
Flex-SM-51 2″ 51.0 60.0 20
Flex-SM-64 2-1/2″ 64.0 73.0 20
Flex-SM-75 3″ 75.0 88.0 15
Flex-SM-100 4″ 100.0 106.0 10



■ Stainless steel conduit(double lock):

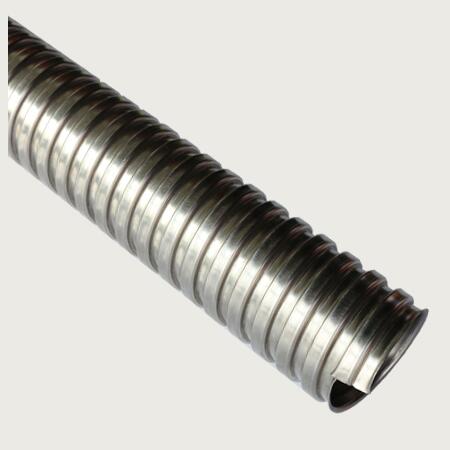

1. Product show:

Stainless Steel Conduit

2. Structure show:

Stainless Steel Conduit structure
3. Materials:

304 stainless steel, 316 stainless steel.

4. Usage:

stainless steel conduit is widely used in wire and cable protection, especially in electronic communication. the price depends on materials, thickness of steel, the width of steel.

5. Sizes:

Types Inch Size Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-DM-4 4.0 6.0 100
Flex-DM-5 5.0 7.0 100
Flex-DM-6 6.0 8.0 100
Flex-DM-7 7.4 10.0 100
Flex-DM-9 1/4″ 9.5 12.7 50
Flex-DM-12 3/8″ 12.5 15.7 50
Flex-DM-16 1/2″ 16.1 19.5 50
Flex-DM-19 5/8″ 19.1 22.2 50
Flex-DM-21 3/4″ 20.8 24.3 50
Flex-DM-22 13/16″ 22.0 25.7 50
Flex-DM-26 1″ 26.0 30.0 50
Flex-DM-34 1-1/4″ 34.0 39.0 20
Flex-DM-39 1-1/2″ 39.0 44.0 20
Flex-DM-51 2″ 51.0 56.0 10
Flex-DM-63 2-1/2″ 63.0 69.5 10
Flex-DM-78 3″ 78.0 85.6 10
Flex-DM-102 4″ 102.5 110.0 10



■ Order details:

MOQ: 100m.

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Customizable service: we can offer materials, sizes, logo, packing quantity, packages customizable service.
