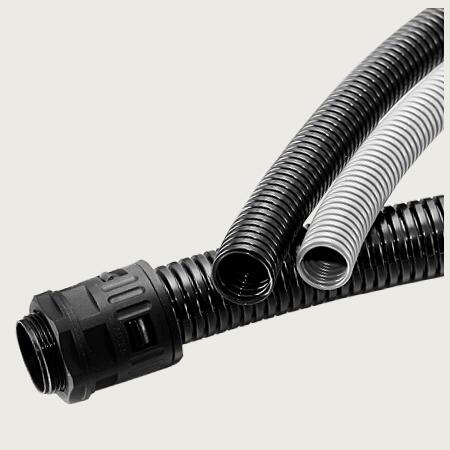

Corrugated Tubes
- PRODUCT DETAIL
Products introduction:
1. General Material:
Nylon(pa).
Polypropylene(pp) or Polyethylene(pe) are also workable.
2. Colors:
black color, other colors could be customizable.
3. Working Temperature:
-40℃~+125℃ (+140℃ in a short time)
4. Usage:
Corrugated tubes are used to protect the wire and cables. Widely used in machine, auto, shipping, lighting, automation etc.
5. Corrugated Tubes Sizes Chart:
| Types | Inch Size | Inside Diameter(mm) | Outside Diameter(mm) | Length of Roll(m) |
| Flex-PA-7 | 4.5 | 7.0 | 200 | |
| Flex-PA-10 | 1/4″ | 6.5 | 10.0 | 100 |
| Flex-PA-11 | 8.5 | 11.5 | 100 | |
| Flex-PA-13 | 5/16″ | 10.0 | 13.0 | 100 |
| Flex-PA-14 | 11.0 | 14.0 | 100 | |
| Flex-PA-15 | 3/8″ | 12.0 | 15.8 | 100 |
| Flex-PA-18 | 14.3 | 18.5 | 100 | |
| Flex-PA-20 | 16.0 | 20.0 | 100 | |
| Flex-PA-21 | 1/2″ | 17.0 | 21.2 | 100 |
| Flex-PA-25 | 21.0 | 25.0 | 100 | |
| Flex-PA-28 | 3/4″ | 23.0 | 28.5 | 100 |
| Flex-PA-32 | 25.0 | 32.0 | 50 | |
| Flex-PA-34 | 1″ | 29.0 | 34.5 | 50 |
| Flex-PA-42 | 1-1/4″ | 36.0 | 42.5 | 25 |
| Flex-PA-54 | 2″ | 48.0 | 54.5 | 25 |
| Flex-PA-67 | 2-1/2″ | 56.3 | 67.2 | 25 |
| Flex-PA-80 | 3″ | 66.5 | 80.0 | 20 |
| Flex-PA-106 | 4″ | 91.0 | 106.0 | 20 |
|
Tolerance: ±0.2mm, split and non split are workable for us. |
||||
6. Warehouse:
Remarks:
MOQ: 100m
Payments: T/T, Western Union, Paypal are available. Others are negotiated.
General Payment: 30% deposit, T/T balance before delivery.
Customizable Service: Customizable is workable for us. Such as materials, sizes, logo, packing quantity, packages, split or not, fire-proof, pull the wire in requirements etc.
