Flexible Conduit Pipe
- PRODUCT DETAIL

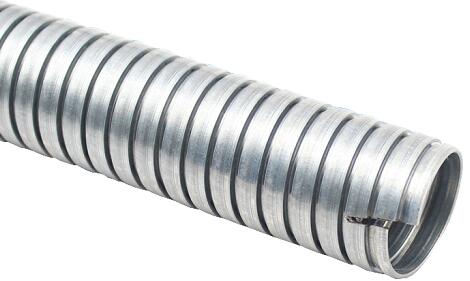

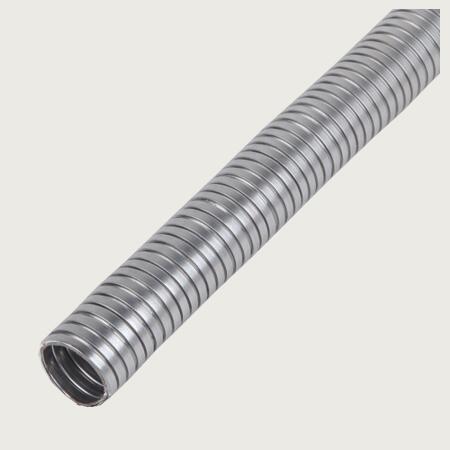

flexible conduit pipe structure
Products introduction:
1. Material: Galvanized steel, stainless steel, Aluminum, copper.
2. Certificates: CE, Rohs, ISO9001:2008.
3. Our Thrength: With the best available materials, and the surface is smooth. With better appearance, flexible and stable properties.
4. Function: Flexible conduit pipe is widely used in wire and cable protection. Especially in electronic communication. The price depends on materials, thickness of steel, the width of steel.
5. Sizes:
| Types | Inch Size | Inside Diameter(mm) | Outside Diameter(mm) | Length of Roll(m) |
| Flex-DM-4 | – | 4.0 | 6.0 | 100 |
| Flex-DM-5 | – | 5.0 | 7.0 | 100 |
| Flex-DM-6 | – | 6.7 | 9.0 | 100 |
| Flex-DM-9 | 1/4″ | 9.5 | 12.5 | 50 |
| Flex-DM-10 | 3/8″ | 10.0 | 12.5 | 50 |
| Flex-DM-12 | 1/2″ | 12.5 | 15.7 | 50 |
| Flex-DM-16 | – | 16.1 | 19.5 | 50 |
| Flex-DM-19 | – | 19.1 | 22.0 | 50 |
| Flex-DM-20 | 3/4″ | 20.8 | 24.3 | 40 |
| Flex-DM-22 | – | 22.0 | 25.7 | 40 |
| Flex-DM-26 | 1″ | 26.0 | 30.0 | 30 |
| Flex-DM-34 | 1-1/4″ | 34.0 | 39.0 | 30 |
| Flex-DM-39 | 1-1/2″ | 39.0 | 44.0 | 20 |
| Flex-DM-51 | 2″ | 51.0 | 56.0 | 10 |
| Flex-DM-63 | 2-1/2″ | 63.0 | 69.5 | 10 |
| Flex-DM-78 | 3″ | 78.0 | 85.6 | 10 |
| Flex-DM-102 | 4″ | 102.5 | 110.1 | 10 |
| Tolerance: ±0.2mm | ||||
Remarks:
MOQ: 100m
Payments: T/T, Western Union, Paypal are available. Others are negotiated.
Customizable Service: Flexible conduit pipe customizable is workable for us. Such as materials, sizes, logo, packing quantity, packages etc.
If you have any questions about flexible conduit pipe, welcome to ask for help.
