Home>Products>Metal Flexible Conduit>Flexible Electrical Conduit

Product name : Flexible Electrical Conduit

Material : GI or SS

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

Flexible Electrical Conduit

■ US(UL) Flexible Electrical Conduit:

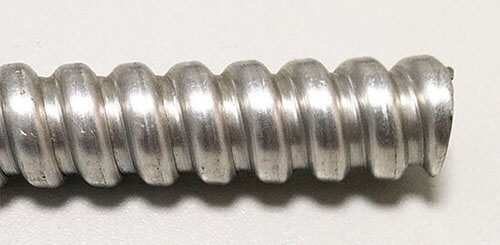

1. Products Show:

US flexible electrical conduit show

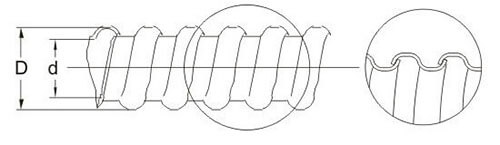

2. Structure:

US flexible electrical conduit structure

3. Material:

Galvanized steel

4. Certificates:

UL approved

5. Usage:

US flexible electrical conduit is widely used in wire and cable protection. Especially in household wiring cable protection.

6. Size:

Types	Inch Size	Inside Diameter(mm)	Outside Diameter(mm)	Length of Roll(m)
FLEX-GI-7	5/16″	7.92~8.32	11.94~12.95	100
FLEX-GI-9	3/8″	9.52~9.96	14.22~15.49	100
FLEX-GI-13	9/16″	13.89~14.61	17.90~18.67	100
FLEX-GI-15	1/2″	15.88~16.38	21.84~23.37	100
FLEX-GI-20	3/4″	20.62~21.21	26.54~28.07	100
FLEX-GI-25	1″	25.40~26.42	33.02~35.05	50
FLEX-GI-31	1-1/4″	31.75~33.02	39.37~41.40	50
FLEX-GI-38	1-1/2″	38.10~40.01	46.99~49.53	25
FLEX-GI-50	2″	50.80~52.83	59.69~62.23	25
FLEX-GI-63	2-1/2″	＞63.5	72.64~77.72	25
FLEX-GI-76	3″	＞76.2	85.34~90.42	25
FLEX-GI-88	3-1/2″	＞88.90	98.04~103.12	25
FLEX-GI-101	4″	＞101.6	110.72~115.82	25

■ General Flexible Electrical Conduit:

1. Product Show

general flexible electrical conduit show

2. Structure:

general flexible electrical conduit structure

3. Material:

galvanized steel

201 stainless steel, 304 stainless steel and 316 stainless steel are also workable.

4. Certificates:

CE, Rohs, ISO9001:2008

5. Strength:

with the best available materials, and the surface is smooth. With better appearance, flexible and stable properties.

6. Usage:

general flexible electrical conduit is widely used in wire and cable protection. Especially in electronic communication.

7. Size:

Types	Inch Size	Inside Diameter(mm)	Outside Diameter(mm)	Length of Roll(m)
Flex-GGI-3	–	3.0	5.0	100
Flex-GGI-4	–	4.0	6.0	100
Flex-GGI-5	–	5.0	7.0	100
Flex-GGI-6	–	6.0	8.0	100
Flex-GGI-7	–	7.0	9.0	100
Flex-GGI-8	1/4″	8.0	10.0	50
Flex-GGI-10	1/2″	10.0	12.7	50
Flex-GGI-13	–	13.0	15.5	50
Flex-GGI-16	–	16.0	18.7	50
Flex-GGI-20	3/4″	20.0	23.2	50
Flex-GGI-25	1″	25.0	28.7	50
Flex-GGI-32	1-1/4″	32.0	36.0	20
Flex-GGI-38	1-1/2″	38.0	44.0	20
Flex-GGI-51	2″	51.0	58.0	10
Flex-GGI-64	2-1/2″	64.0	73.0	10
Tolerance: ±0.2mm

Order Details:

MOQ: 100m
Payments: T/T, Western Union, PayPal. Others are negotiated.

Custom Service: flexible electrical conduit custom service is workable for us. Such as materials, sizes, logo, packing quantity, packages etc.
