Straight Connector
- PRODUCT DETAIL
Flexible Metal Conduit Connectors

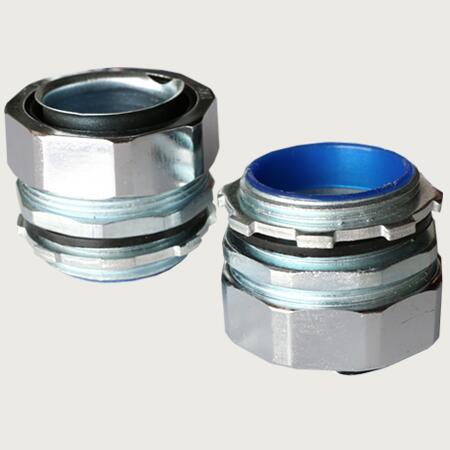

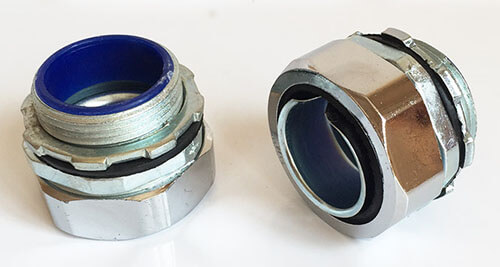

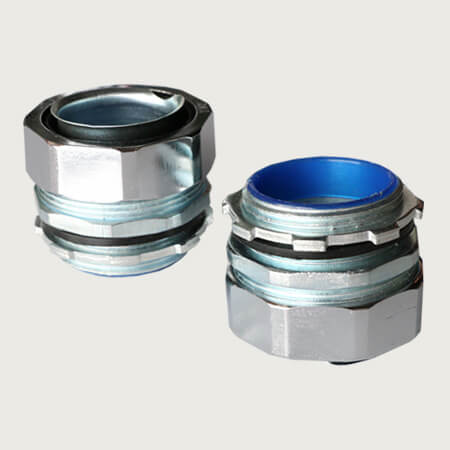

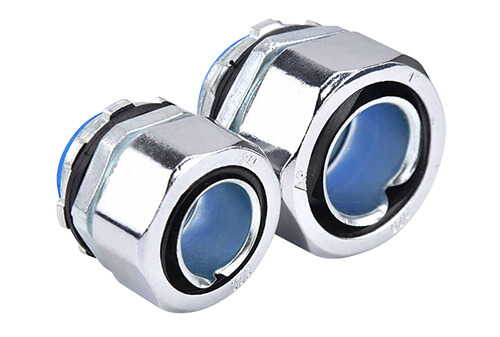

flexible metal conduit connectors(zinic alloy)

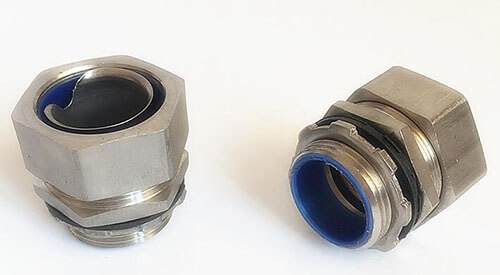

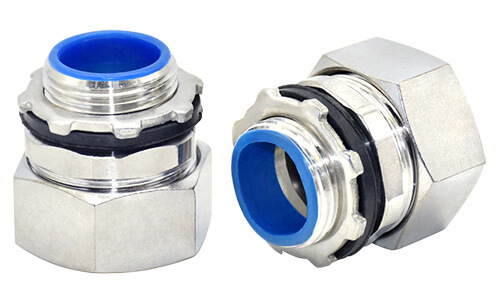

flexible metal conduit connectors(stainless steel)
Product introduction
1. Material:
zinc alloy
304 stainless steel and 316 stainless steel are also workable for us
2. Coating:
zinc, nickel, chrome
3. Protection Rating:
IP67
4. Using place: flexible metal conduit connectors are widely used in the wire and cable protection, and connector the flexible metal conduit or pvc coated conduit with machine.
Structure & Sizes:

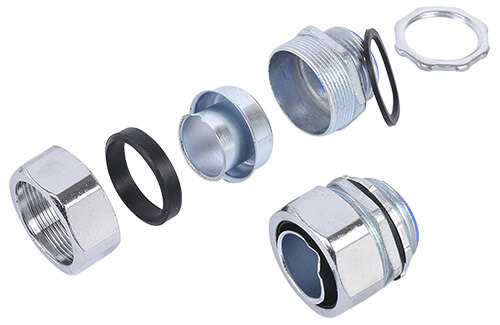

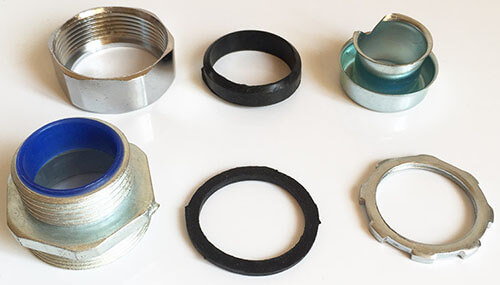

flexible metal conduit connectors structure
|
Mached Flexible Conduit Inner Diameter(mm) |
Thread |
||||
|
Metric |
Inch |
G |
Metric |
NPT |
PG |
| φ6 | 1/16″ | G1/4″ | M14×1.5 | 1/4″NPT | PG7 |
| φ8 | 1/8″ | G3/8″ | M16×1.5 | 3/8″NPT | PG9 |
| φ10 | 1/4″ | G3/8″ | M16×1.5 | 3/8″NPT | PG9 |
|
φ12 |
3/8″ |
G3/8″ |
M20×1.5 |
3/8″NPT |
PG11 or PG13.5 |
|
φ15（16） |
1/2″ |
G1/2″ |
M20×1.5 or M24×1.5 |
1/2″NPT |
PG13.5 or PG16 |
|
φ20（19） |
3/4″ |
G3/4″ |
M27×2.0 or M30×2.0 |
3/4″NPT |
PG21 |
|
φ25 |
1″ |
G1″ |
M33×2.0 or M36×2.0 |
1″NPT |
PG29 |
|
φ32 |
1-1/4″ |
G1-1/4″ |
M42×2.0 or M48×2.0 |
1-1/4″NPT |
PG29 |
|
φ38（40） |
1-1/2″ |
G1-1/2″ |
M48×2.0 or M60×2.0 |
1-1/2″NPT |
PG36 or PG42 |
|
φ51（50） |
2″ |
G2″ |
M60×2.0 or M70×2.0 |
2″NPT |
PG48 |
|
φ64（70） |
2-1/2″ |
G2-1/2″ |
M76×2.0 |
2-1/2″NPT |
|
|
φ75（80） |
3″ |
G3″ |
M88×2.0 |
3″NPT |
|
|
φ100 |
4″ |
G4″ |
M114×2.0 |
4″NPT |
|
|
φ125 |
5″ |
G5″ |
M140×2.0 |
5″NPT |
|
|
φ150 |
6″ |
G6″ |
M164×2.0 |
6″NPT |
|
|
φ200 |
8″ |
G8″ |
M188×2.0 |
8″NPT |
|
| PS: Above threads are all workable for us. | |||||
Remarks:
MOQ: 50pcs
Payment: Paypal, T/T, Western Union are available.
Payment Terms: 30% deposit, balance payment before shipment.
Customizable Service: flexible metal conduit connectors custom service are vailable for us. Such as thread, material, packing quantity, label, packages, etc.
