Product name : Liquid Tight Connectors

Material : Zinc Alloy

Enlarge Image

Back

←[Previous Product] [Next Product]→

Details:

Liquid Tight Connectors

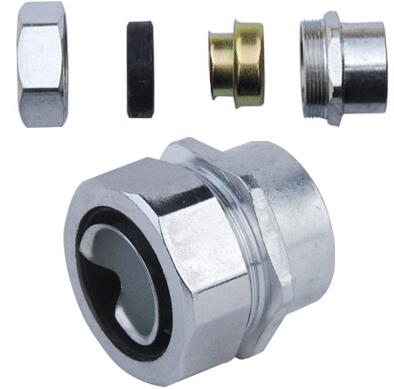

Liquid Tight Connectors Structure

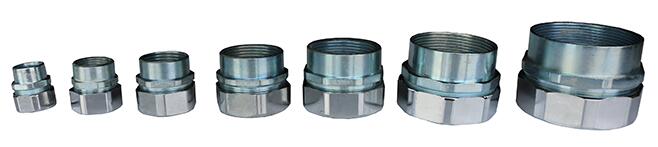

Full Sizes Liquid Tight Connectors

Product introduction

1. Material: Zinc Alloy

2. Coating: Zinc, Nickel, Chrome

3. Protection Rating: IP67

4. Using place: Liquid Tight Connectors are widely used in the wire and cable protection, and connect the flexible metal conduit or pvc coated conduit with others.

5. Size:

Conduit Size		Thread Standard
Metric	Inch	G	M	NPT	PG
φ12	3/8″	G3/8″	M20×1.5	3/8″NPT	PG13.5
φ15（16）	1/2″	G1/2″	M20×1.5	1/2″NPT	PG13.5
φ20（19）	3/4″	G3/4″	M27×2.0	3/4″NPT	PG21
φ25	1″	G1″	M33×2.0	1″NPT	PG29
φ32	1-1/4″	G1-1/4″	M42×2.0	1-1/4″NPT	PG29
φ38（40）	1-1/2″	G1-1/2″	M48×2.0	1-1/2″NPT	PG36
φ51（50）	2″	G2″	M60×2.0	2″NPT	PG48
φ64（70）	2-1/2″	G2-1/2″	M76×2.0	2-1/2″NPT
φ75（80）	3″	G3″	M88×2.0	3″NPT
φ100	4″	G4″	M114×2.0	4″NPT
φ125	5″	G5″	M140×2.0	5″NPT
φ150	6″	G6″	M164×2.0	6″NPT
φ200	8″	G8″	M188×2.0	8″NPT

Remarks:

MOQ: 20pcs

General Payment: Paypal, T/T, Western Union. Others are negotiated.

Customizable Service: Customizable are vailable for us. Such as packing quantity, label, packages, etc.

If you have any questions about Liquid Tight Connectors, welcome to send us an email for assisatance.
