Metal Cable Gland
- PRODUCT DETAIL
Metal Cable Gland

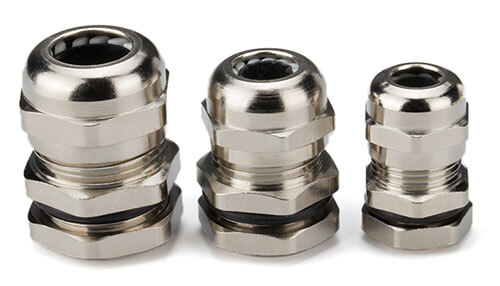

metal cable gland details

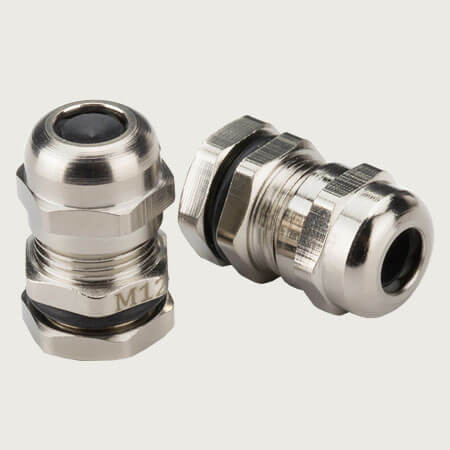

metal cable gland details
■ Product introduction:
1. Material:
Nickel plated brass is default material
304 stainless steel and 316 stainless steel are also workable for us.
2. Thread:
Metric, PG, G(PF), NPT
3. Working Temperature:
-40℃~+100℃
4. Feature:
Metal cable gland can hold cable firmly and have a wider cable range. And also resistant to salt water, weak acid, alcohol, oil, grease and common solvency.
■ Product Structure:

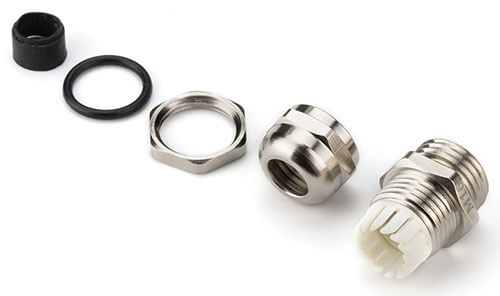

metal cable gland structure
■ Product Size:
|
Thread
|
Products Types
|
Cable Range
|
Thread Length
|
Package
|
| M8*1.0 | MBA08-05 | 2-5 | 6 | 50 |
| M10*1.5 | MBA10-06 | 3-6.5 | 6.5 | 50 |
|
M12*1.5
|
MBA12-05
|
5.3-3
|
8
|
50
|
|
MBA12-08
|
7.8-4.5
|
8
|
50
|
|
|
M16*1.5
|
MBA16-06
|
7-4
|
9
|
10
|
|
MBA16-10
|
10-6
|
9
|
10
|
|
|
M20*1.5
|
MBA20M-08
|
8.8-5
|
9.5
|
10
|
|
MBA20-11
|
12-7
|
9.5
|
10
|
|
|
MBA20-13
|
14-9
|
9.5
|
10
|
|
|
M25*1.5
|
MBA25-16
|
16-12
|
12
|
10
|
|
MBA25-18
|
18-14
|
12
|
10
|
|
|
M32*1.5
|
MBA32-22
|
22-16
|
12.5
|
10
|
|
MBA22-25
|
25-18
|
12.5
|
10
|
|
|
M40*1.5
|
MBA40-25
|
25-21
|
15
|
5
|
|
MBA40-30
|
30-24
|
15
|
5
|
|
|
M50*1.5
|
MBA50-32
|
32-26
|
15
|
2
|
|
MBA50-39
|
41-31
|
15
|
2
|
|
|
M63*1.5
|
MBA63-46
|
46-40
|
15
|
2
|
|
MBA63-49
|
51-44
|
15
|
2
|
|
|
M75*1.5
|
MBA75-56
|
56-50
|
15
|
1
|
|
MBA75-66
|
66-56
|
15
|
1
|
|
|
M90*1.5
|
MBA90-68
|
68-58
|
20
|
1
|
|
MBA90-77
|
77-66
|
20
|
1
|
|
|
M100*1.5
|
MBA100-68
|
68-58
|
25
|
1
|
|
MBA100-77
|
77-66
|
25
|
1
|
|
|
PG7
|
PBA7-05
|
5.3-3
|
8
|
10
|
|
PBA7-08
|
7.8-4.5
|
8
|
10
|
|
|
PG9
|
PBA9-05
|
5.3-3
|
8
|
10
|
|
PBA9-08
|
7.8-4.5
|
8
|
10
|
|
|
PG11
|
PBA11-06
|
7-4
|
9
|
10
|
|
PBA11-10
|
10-6
|
9
|
10
|
|
|
PG13.5
|
PBA13.5-08
|
8.8-5
|
9.5
|
10
|
|
PBA13.5-11
|
12-7
|
9.5
|
10
|
|
|
PG16
|
PBA16-10
|
11-7
|
9.5
|
10
|
|
PBA16-13
|
14-9
|
9.5
|
10
|
|
|
PG21
|
PBA21-16
|
16-12
|
12
|
10
|
|
PBA21-18
|
18-14
|
12
|
10
|
|
|
PG29
|
PBA29-22
|
22-16
|
12.5
|
10
|
|
PBA29-25
|
25-18
|
12.5
|
10
|
|
|
PG36
|
PBA36-25
|
25-21
|
15
|
5
|
|
PBA36-30
|
30-24
|
15
|
5
|
|
|
G(PF)1/4″
|
FBA13-05
|
5.3-3
|
8
|
10
|
|
FBA13-08
|
7.8-4.5
|
8
|
10
|
|
|
G(PF)3/8″
|
FBA17-06
|
7-4
|
9
|
10
|
|
FBA17-10
|
10-6
|
9
|
10
|
|
|
G(PF)1/2″
|
FBA21-10
|
11-7
|
9.5
|
10
|
|
FBA21-13
|
14-9
|
9.5
|
10
|
|
|
G(PF)3/4″
|
FBA26-16
|
16-12
|
12
|
10
|
|
FBA26-18
|
18-14
|
12
|
10
|
|
|
G(PF)1″
|
FBA33-22
|
22-16
|
12.5
|
10
|
|
FBA33-25
|
25-18
|
12.5
|
10
|
|
|
G(PF)1-1/4″
|
FBA42-25
|
25-21
|
15
|
5
|
|
FBA42-30
|
30-24
|
15
|
5
|
|
|
G(PF)1-1/2″
|
FBA48-32
|
32-26
|
15
|
2
|
|
FBA48-39
|
41-31
|
15
|
2
|
|
|
G(PF)2″
|
FBA60-46
|
46-40
|
15
|
2
|
|
FBA60-49
|
51-44
|
15
|
2
|
|
|
G(PF)2-1/2″
|
FBA75-56
|
56-50
|
18
|
1
|
|
FBA75-66
|
66-56
|
18
|
1
|
|
|
NPT3/8″
|
NBA17-06
|
7-4
|
13 |
10
|
|
NBA17-10
|
10-6
|
13
|
10
|
|
|
NPT1/2″
|
NBA21-10
|
11-7
|
13
|
10
|
|
NBA21-13
|
14-9
|
13
|
10
|
|
|
NPT3/4″
|
NBA26-16
|
16-12
|
14
|
10
|
|
NBA26-18
|
18-14
|
14
|
10
|
|
|
NPT1″
|
NBA33-22
|
22-16
|
15
|
10
|
|
NBA33-25
|
25-18
|
15
|
10
|
|
|
NPT1-1/4″
|
NBA42-25
|
25-21
|
15
|
5
|
|
NBA42-30
|
30-24
|
15
|
5
|
PS: more sizes, more material customized service, please feel free to contact our sales.
■ Payment Detail:
MOQ: 100pcs
Payments: T/T, Western Union, Paypal are available.
Customers Service: metal cable gland customers service is workable for us. Such as material, sizes, package, logo print etc.
