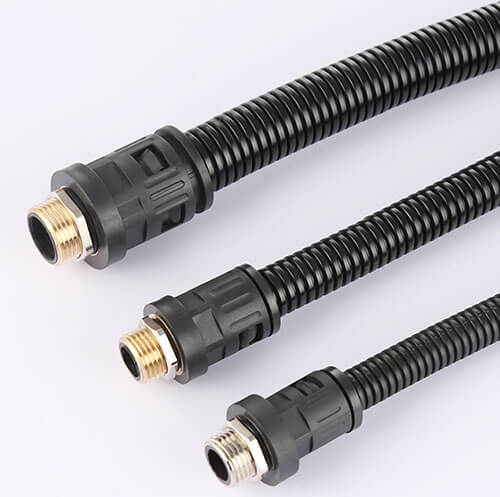

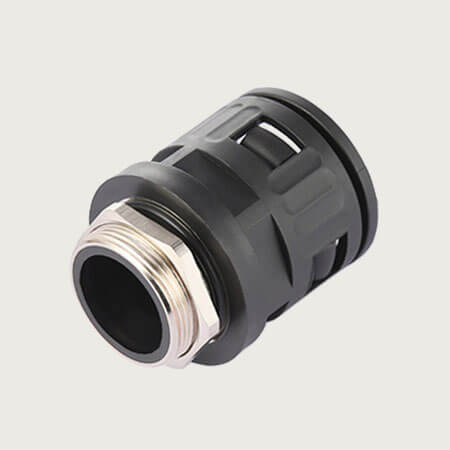

Metal Thread Quick Connector

Products Technical Date:

1. Material: Polyamide(pa), thread is nickel plated brass

2. Working Temperature: -40℃~ +110℃

3. Threads: PG and Metric

4. Protection Level: IP66.

5. Packaging: PE coated with carton.

6. Size:
Metric Thread

Specification	Matched Conduit Outer Diameter	Thread	Thread Length
FLEX-TR-AD15.8/M16	AD15.8	M16*1.5	12mm
FLEX-TR-AD15.8/M20	AD15.8	M20*1.5	12mm
FLEX-TR-AD21.2/M20	AD21.2	M20*1.5	13mm
FLEX-TR-AD28.5/M25	AD28.5	M25*1.5	13mm
FLEX-TR-AD28.5/M32	AD28.5	M32*1.5	13mm
FLEX-TR-AD34.5/M32	AD34.5	M32*1.5	13mm
FLEX-TR-AD34.5/M40	AD34.5	M40*1.5	13mm
FLEX-TR-AD42.5/M40	AD42.5	M40*1.5	14mm
FLEX-TR-AD42.5/M50	AD42.5	M50*1.5	14mm
FLEX-TR-AD54.5/M50	AD54.5	M50*1.5	14mm
FLEX-TR-AD54.5/M63	AD54.5	M63*1.5	14mm

PG Thread

Specification	Matched Conduit Outer Diameter	Thread	Thread Length
FLEX-TR-AD15.8/PG11	AD15.8	PG11	12mm
FLEX-TR-AD21.2/PG13.5	AD21.2	PG13.5	13mm
FLEX-TR-AD21.2/PG16	AD21.2	PG16	13mm
FLEX-TR-AD28.5/PG21	AD28.5	PG21	14mm
FLEX-TR-AD34.5/PG29	AD34.5	PG29	14mm
FLEX-TR-AD42.5/PG36	AD42.5	PG36	17mm
FLEX-TR-AD54.5/PG48	AD54.5	PG48	17mm
