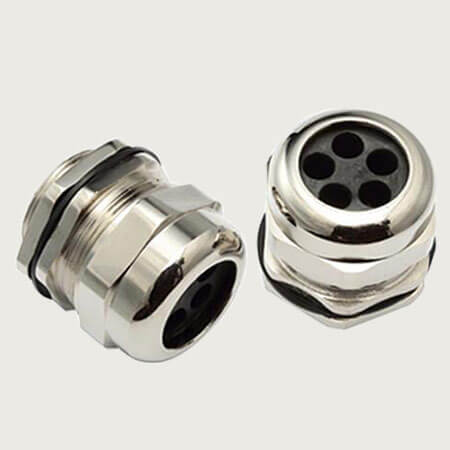

Metal Multiple Cable Gland
- PRODUCT DETAIL
■ Product introduction:
1. Material:
nickel plated brass
2. Thread:
metric, PG, G(PF), NPT
3. Working Temperature:
-40℃~+100℃
4. Feature:
metal multiple cable gland can hold cable firmly and have a wider cable range. And also resistant to salt water, weak acid, alcohol, oil, grease and common solvency.

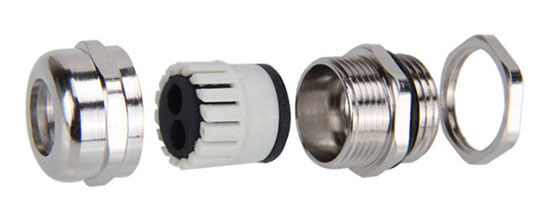

■ Product Structure:
metal multiple cable gland structure
■ Product Size:
2 Holes
|
Thread
|
Part No.
|
Cable Range
|
Thread Length
|
Spanner Size
|
|
M12*1.5
|
FLEX-H2-M12
|
3-1.2
|
7
|
14
|
|
M16*1.5
|
FLEX-H2-M16
|
4-1.6
|
8
|
18
|
|
M18*1.5
|
FLEX-H2-M18
|
3.5-2
|
8
|
20
|
|
M20*1.5
|
FLEX-H2-M20A
|
5.3-1.5
|
8
|
22
|
|
M20*1.5
|
FLEX-H2-M20B
|
3.5-2
|
8
|
22
|
|
M22*1.5
|
FLEX-H2-M22
|
6-2.5
|
8
|
24
|
|
M25*1.5
|
FLEX-H2-M25
|
8.7-4
|
9
|
30
|
|
M32*1.5
|
FLEX-H2-M32
|
10-5
|
9
|
35
|
|
PG7
|
FLEX-H2-PG7
|
3-1.2
|
8
|
14
|
|
PG9
|
FLEX-H2-PG9
|
4-1.6
|
8
|
17
|
|
PG11
|
FLEX-H2-PG11
|
3.5-21
|
8
|
20
|
|
PG13.5
|
FLEX-H2-PG13.5
|
5.3-1.5
|
8
|
22
|
|
PG16
|
FLEX-H2-PG16
|
6-2.5
|
8
|
24
|
|
PG21
|
FLEX-H2-PG21
|
8.7-4.5
|
9
|
30
|
|
PG29
|
FLEX-H2-PG29
|
10-5
|
10
|
40
|
|
G1/4
|
FLEX-H2-G1/4
|
3-1.2
|
7
|
14
|
|
G3/8
|
FLEX-H2-G3/8
|
4-1.6
|
8
|
18
|
|
G1/2
|
FLEX-H2-G1/2A
|
3.5-2
|
8
|
22
|
|
G1/2
|
FLEX-H2-G1/2B
|
5.3-1.5
|
8
|
22
|
|
G3/4
|
FLEX-H2-G3/4
|
8.7-4.5
|
9
|
30
|
|
G1
|
FLEX-H2-G1
|
10-5
|
10
|
35
|
|
NPT3/8
|
FLEX-H2-NPT3/8
|
4-1.6
|
8
|
18
|
|
NPT1/2
|
FLEX-H2-NPT1/2A
|
3.5-2
|
8
|
22
|
|
NPT1/2
|
FLEX-H2-NPT1/2B
|
5.3-1.5
|
8
|
22
|
|
NPT3/4
|
FLEX-H2-NPT3/4
|
8.7-4.5
|
9
|
30
|
|
NPT1
|
FLEX-H2-NPT1
|
10-5
|
10
|
35
|
3 Holes
|
Thread
|
Part No.
|
Cable Range
|
Thread Length
|
Spanner Size
|
|
M12*1.5
|
FLEX-H3-M12
|
2.6-1.2
|
7
|
14
|
|
M16*1.5
|
FLEX-H3-M16
|
2.6-1.2
|
8
|
18
|
|
M18*1.5
|
FLEX-H3-M18
|
4-1.6
|
8
|
20
|
|
M20*1.5
|
FLEX-H3-M20A
|
5-2
|
8
|
22
|
|
M20*1.5
|
FLEX-H3-M20B
|
3.5-1.5
|
8
|
22
|
|
M22*1.5
|
FLEX-H3-M22
|
3.5-1.5
|
8
|
24
|
|
M25*1.5
|
FLEX-H3-M25
|
8-4
|
9
|
30
|
|
M32*1.5
|
FLEX-H3-M32
|
10-5
|
9
|
35
|
|
PG7
|
FLEX-H3-PG7
|
2.6-1.2
|
8
|
14
|
|
PG9
|
FLEX-H3-PG9
|
2.6-1.2
|
8
|
17
|
|
PG11
|
FLEX-H3-PG11
|
4-1.6
|
8
|
20
|
|
PG13.5
|
FLEX-H3-PG13.5
|
5-2
|
8
|
22
|
|
PG16
|
FLEX-H3-PG16
|
3.5-1.5
|
8
|
24
|
|
PG21
|
FLEX-H3-PG21
|
5-2
|
9
|
30
|
|
PG29
|
FLEX-H3-PG29
|
10-5
|
10
|
40
|
|
G1/4
|
FLEX-H3-G1/4
|
2.6-1.2
|
7
|
14
|
|
G3/8
|
FLEX-H3-G3/8
|
4-1.6
|
8
|
18
|
|
G1/2
|
FLEX-H3-G1/2A
|
5-2
|
8
|
22
|
|
G1/2
|
FLEX-H3-G1/2B
|
3.5-1.5
|
8
|
22
|
|
G3/4
|
FLEX-H3-G3/4
|
8-4
|
9
|
30
|
|
G1
|
FLEX-H3-G1
|
10-5
|
10
|
35
|
|
NPT3/8
|
FLEX-H3-NPT3/8
|
4-1.6
|
8
|
18
|
|
NPT1/2
|
FLEX-H3-NPT1/2A
|
3.5-1.5
|
8
|
22
|
|
NPT1/2
|
FLEX-H3-NPT1/2B
|
5-2
|
8
|
22
|
|
NPT3/4
|
FLEX-H3-NPT3/4
|
8-4
|
9
|
30
|
|
NPT1
|
FLEX-H3-NPT1
|
10-5
|
10
|
35
|
4 Holes
|
Thread
|
Part No.
|
Cable Range
|
Thread Length
|
Spanner Size
|
|
M12*1.5
|
FLEX-H4-M12
|
2.3-1
|
7
|
14
|
|
M16*1.5
|
FLEX-H4-M16
|
2.3-1
|
8
|
18
|
|
M18*1.5
|
FLEX-H4-M18
|
3-1.2
|
8
|
20
|
|
M20*1.5
|
FLEX-H4-M20A
|
4.2-1.7
|
8
|
22
|
|
M20*1.5
|
FLEX-H4-M20B
|
3.5-1.5
|
8
|
22
|
|
M22*1.5
|
FLEX-H4-M22
|
4.5-2
|
8
|
24
|
|
M25*1.5
|
FLEX-H4-M25
|
5-2
|
9
|
30
|
|
M32*1.5
|
FLEX-H4-M32
|
9-4.5
|
9
|
35
|
|
PG7
|
FLEX-H4-PG7
|
2.3-1
|
8
|
14
|
|
PG9
|
FLEX-H4-PG9
|
2.3-1
|
8
|
17
|
|
PG11
|
FLEX-H4-PG11
|
3-1.2
|
8
|
20
|
|
PG13.5
|
FLEX-H4-PG13.5
|
4.2-1.7
|
8
|
22
|
|
PG16
|
FLEX-H4-PG16
|
4.5-2
|
8
|
24
|
|
PG21
|
FLEX-H4-PG21
|
7-3.5
|
9
|
30
|
|
PG29
|
FLEX-H4-PG29
|
9-4.5
|
10
|
40
|
|
G1/4
|
FLEX-H4-G1/4
|
2.3-1
|
7
|
14
|
|
G3/8
|
FLEX-H4-G3/8
|
3-1.2
|
8
|
18
|
|
G1/2
|
FLEX-H4-G1/2A
|
3.5-1.5
|
8
|
22
|
|
G1/2
|
FLEX-H4-G1/2B
|
4.5-2
|
8
|
22
|
|
G3/4
|
FLEX-H4-G3/4
|
7-3.5
|
9
|
30
|
|
G1
|
FLEX-H4-G1
|
9-4.5
|
10
|
35
|
|
NPT3/8
|
FLEX-H4-NPT3/8
|
2.3-1
|
8
|
18
|
|
NPT1/2
|
FLEX-H4-NPT1/2A
|
3.5-1.5
|
8
|
22
|
|
NPT1/2
|
FLEX-H4-NPT1/2B
|
4.5-2
|
8
|
22
|
|
NPT3/4
|
FLEX-H4-NPT3/4
|
7-3.5
|
9
|
30
|
|
NPT1
|
FLEX-H4-NPT1
|
9-4.5
|
10
|
35
|
5 Holes
|
Thread
|
Part No.
|
Cable Range
|
Thread Length
|
Spanner Size
|
|
M16*1.5
|
FLEX-H5-M16
|
2.5-1
|
8
|
18
|
|
M20*1.5
|
FLEX-H5-M20A
|
3-1.2
|
8
|
22
|
|
M20*1.5
|
FLEX-H5-M20B
|
4.2-1.7
|
8
|
22
|
|
M25*1.5
|
FLEX-H5-M25A
|
3.5-1.5
|
9
|
30
|
|
M25*1.5
|
FLEX-H5-M25B
|
6-3
|
9
|
30
|
|
M32*1.5
|
FLEX-H5-M32
|
8-4
|
9
|
35
|
|
PG9
|
FLEX-H5-PG9
|
2.5-1
|
8
|
17
|
|
PG13.5
|
FLEX-H5-PG13.5A
|
3-1.2
|
8
|
22
|
|
PG13.5
|
FLEX-H5-PG13.5B
|
4.2-1.7
|
8
|
22
|
|
PG21
|
FLEX-H5-PG21A
|
3.5-1.5
|
9
|
30
|
|
PG21
|
FLEX-H5-PG21B
|
6-3
|
9
|
30
|
|
PG29
|
FLEX-H5-PG29
|
8-4
|
10
|
40
|
|
G3/8
|
FLEX-H5-G3/8
|
2.5-1
|
8
|
18
|
|
G1/2
|
FLEX-H5-G1/2A
|
3-1.2
|
8
|
22
|
|
G1/2
|
FLEX-H5-G1/2B
|
4.2-7
|
8
|
22
|
|
G3/4
|
FLEX-H5-G3/4
|
6-3
|
9
|
30
|
|
G1
|
FLEX-H5-G1
|
8-4
|
10
|
35
|
|
NPT3/8
|
FLEX-H5-NPT3/8
|
2.5-1
|
8
|
18
|
|
NPT1/2
|
FLEX-H5-NPT1/2A
|
3-1.2
|
8
|
22
|
|
NPT1/2
|
FLEX-H5-NPT1/2B
|
4.2-1.7
|
8
|
22
|
|
NPT3/4
|
FLEX-H5-NPT3/4
|
6-3
|
9
|
30
|
|
NPT1
|
FLEX-H5-NPT1
|
8-4
|
10
|
35
|
6 Holes
|
Thread
|
Part No.
|
Cable Range
|
Thread Length
|
Spanner Size
|
|
M16*1.5
|
FLEX-H6-M16
|
2-1
|
8
|
18
|
|
M20*1.5
|
FLEX-H6-M20
|
3-1.2
|
8
|
22
|
|
M25*1.5
|
FLEX-H6-M25A
|
3.5-1.5
|
9
|
30
|
|
M25*1.5
|
FLEX-H6-M25B
|
5.3-2.4
|
9
|
30
|
|
M32*1.5
|
FLEX-H6-M32
|
7-3.5
|
9
|
35
|
|
PG9
|
FLEX-H6-PG9
|
2-1
|
8
|
17
|
|
PG13.5
|
FLEX-H6-PG13.5
|
3-1.2
|
8
|
22
|
|
PG21
|
FLEX-H6-PG21A
|
3.5-1.5
|
9
|
30
|
|
PG21
|
FLEX-H6-PG21B
|
5.3-2.4
|
9
|
30
|
|
PG29
|
FLEX-H6-PG29
|
7-3.5
|
10
|
40
|
|
G3/8
|
FLEX-H6-G3/8
|
2-1
|
8
|
18
|
|
G1/2
|
FLEX-H6-G1/2
|
3-1.2
|
8
|
22
|
|
G3/4
|
FLEX-H6-G3/4A
|
3.5-1.5
|
8
|
22
|
|
G3/4
|
FLEX-H6-G3/4B
|
5.3-2.4
|
9
|
30
|
|
G1
|
FLEX-H6-G1
|
7-3.5
|
10
|
35
|
|
NPT3/8
|
FLEX-H6-NPT3/8
|
2-1
|
8
|
18
|
|
NPT1/2
|
FLEX-H6-NPT1/2
|
3-1.2
|
8
|
22
|
|
NPT3/4
|
FLEX-H6-NPT3/4A
|
3.5-1.5
|
8
|
22
|
|
NPT3/4
|
FLEX-H6-NPT3/4B
|
5.3-2.4
|
9
|
30
|
|
NPT1
|
FLEX-H6-NPT1
|
7-3.5
|
10
|
35
|
7 Holes
|
Thread
|
Part No.
|
Cable Range
|
Thread Length
|
Spanner Size
|
|
M20*1.5
|
FLEX-H7-M20
|
3-1.2
|
8
|
22
|
|
M25*1.5
|
FLEX-H7-M25
|
3.5-1.5
|
9
|
30
|
|
M32*1.5
|
FLEX-H7-M32
|
6-3
|
9
|
35
|
|
PG13.5
|
FLEX-H7-PG13.5
|
3-1.2
|
8
|
22
|
|
PG21
|
FLEX-H7-PG21
|
3.5-1.5
|
9
|
30
|
|
PG29
|
FLEX-H7-PG29
|
6-3
|
10
|
40
|
|
G1/2
|
FLEX-H7-G1/2
|
3-1.2
|
8
|
22
|
|
G3/4
|
FLEX-H7-G3/4
|
3.5-1.5
|
9
|
30
|
|
G1
|
FLEX-H7-G1
|
6-3
|
10
|
35
|
|
NPT1/2
|
FLEX-H7-NPT1/2
|
3-1.2
|
8
|
22
|
|
NPT3/4
|
FLEX-H7-NPT3/4
|
3.5-1.5
|
9
|
30
|
|
NPT1
|
FLEX-H7-NPT1
|
6-3
|
10
|
35
|
8 Holes
|
Thread
|
Part No.
|
Cable Range
|
Thread Length
|
Spanner Size
|
|
M20*1.5
|
FLEX-H8-M20
|
2.8-1
|
8
|
22
|
|
M25*1.5
|
FLEX-H8-M25
|
3.5-1.5
|
9
|
30
|
|
PG13.5
|
FLEX-H8-PG13.5
|
2.8-1
|
8
|
22
|
|
PG21
|
FLEX-H8-PG21
|
3.5-1.5
|
9
|
30
|
|
G1/2
|
FLEX-H8-G1/2
|
2.8-1
|
8
|
22
|
|
G3/4
|
FLEX-H8-G3/4
|
3.5-1.5
|
9
|
30
|
|
NPT1/2
|
FLEX-H8-NPT1/2
|
2.8-1
|
8
|
22
|
|
NPT3/4
|
FLEX-H8-NPT3/4
|
3.5-1.5
|
9
|
30
|
■ Payment Detail:
MOQ:
100pcs
Payments:
T/T, Western Union, Paypal are available.
Customers Service:
metal multiple cable gland customers service is workable for us. Such as material, sizes, package, logo print etc.
