Nylon Flexible Metal Conduit Caps

grey and black nylon flexible metal conduit caps Products introduction: 1. Material: Polyamide(pa66) 2. Colors: Black(general), grey 3. Working Temperature: -40℃~+130℃ 4. Fire-proof: Only for customizable 5. Packaging: Exported cartons with PE bags. Packing quantity based on the specification.   Products introduction: nylon flexible metal conduit caps structure Part No. Matched Conduit I ...
  • PRODUCT DETAIL

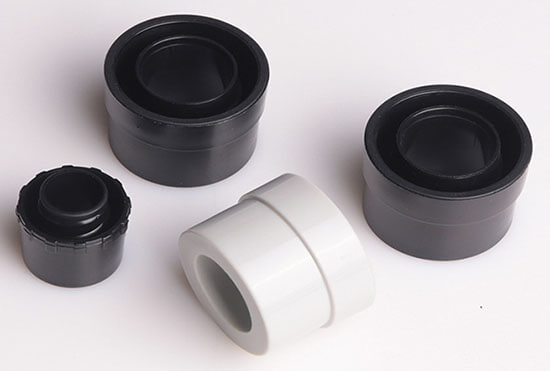

grey and black nylon flexible metal conduit caps
grey and black nylon flexible metal conduit caps

Products introduction:

1. Material:

Polyamide(pa66)

2. Colors:

Black(general), grey

3. Working Temperature:

-40℃~+130℃

4. Fire-proof:

Only for customizable

5. Packaging:

Exported cartons with PE bags. Packing quantity based on the specification.



Products introduction:

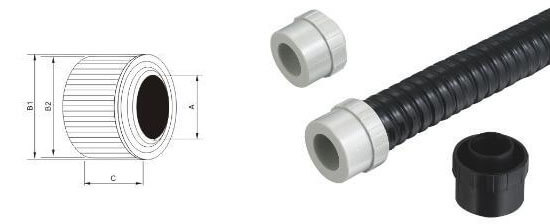

nylon flexible metal conduit caps structure
nylon flexible metal conduit caps structure

Part No. Matched Conduit ID A(mm) B1(mm) B2(mm) C(mm)
Flex-NMEC-5/16 5/16″ 9.2 20 20.5 20
Flex-NMEC-3/8 3/8″ 10.8 20 20.5 21
Flex-NMEC-1/2 1/2″ 14.2 25 26 24
Flex-NMEC-3/4 3/4″ 18 30.5 31.5 26
Flex-NMEC-1 1″ 23.5 36 38 31
Flex-NMEC-1-1/4 1-1/4″ 32.5 45 40 33
Flex-NMEC-1-1/2 1-1/2″ 37 52 53 36
Flex-NMEC-2 2″ 49 64.5 65 35



Remarks:

MOQ: 10pcs.

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Customizable Service: Nylon flexible metal conduit caps customizable is workable for us. Such as fire-proof, sizes, logo, packing quantity, packages etc.
