Product name :  PET Braided Sleeving
Material : PET
 Enlarge Image                   Back



Details:

PET Expandable Braided Sleeving



■ Product introduction:

1. Material:

Polyester(PET)

2. Working Temperature:

-50℃~+150℃

3. Melting Point:

240℃±10℃

4. Flame Retardant Rating:

VW-1

5. Color:

Black. Others are for customizable service

6. Certificate:

Rohs, UL, Halogen Free

7. Cutting Tools:

Keen knife



■ Product Show:

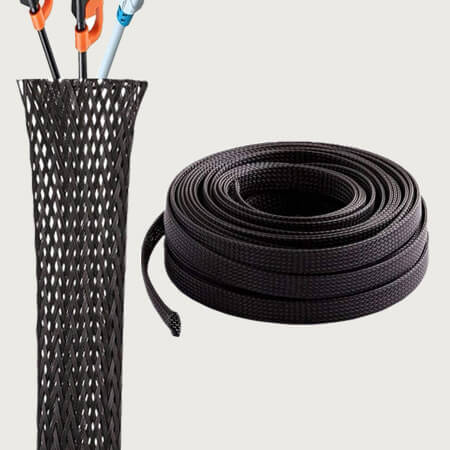

PET Expandable Braided Sleeving

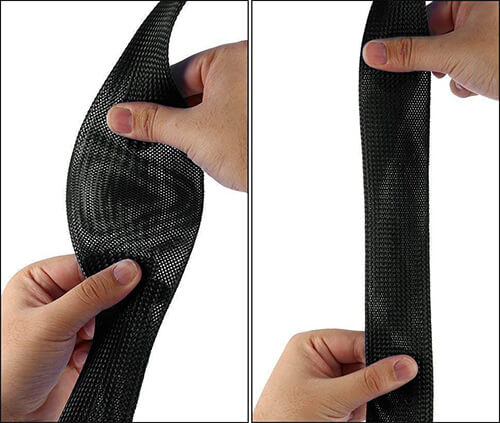

PET expandable braided sleeving can expand I.D. to 1.5 times.



■ Product Specification:

Specification
Bending Diameter
Telescopic Range
Package
(inch) (mm) Min(mm) Max(mm)
FLEX-PET-003
1/8″ 3 1 6 1000m/roll
FLEX-PET-006 1/4″ 6 3 9 500m/roll
FLEX-PET-008 5/16″ 8 5 12 350m/roll
FLEX-PET-010 3/8″ 10 7 19 350m/roll
FLEX-PET-012 1/2″ 12 8 24 300m/roll
FLEX-PET-016 5/8″ 15 10 27 250m/roll
FLEX-PET-019 3/4″ 20 14 30 200m/roll
FLEX-PET-025 1″ 25 18 35 200m/roll
FLEX-PET-032 1-1/4″ 30 20 50 150m/roll
FLEX-PET-038 1-1/2″ 40 30 60 100m/roll
FLEX-PET-045 1-3/4″ 45 35 75 100m/roll
FLEX-PET-050 2″ 50 40 80 100m/roll
FLEX-PET-064 2-1/2″ 64 45 105 100m/roll
FLEX-PET-076 3″ 76 64 120 100m/roll



■ Payment Detail:

MOQ: 100m

Payments: T/T, Western Union, Paypal are available.

General Payment: 30% deposit, T/T balance before delivery.

Custom Service: PET expandable braided sleeving custom service are workable for us, such as packing quantity, packages, colors etc.
