Plastic Cable Conduit

  Products introduction: 1. General Material: Polyethylene(PE).            Nylon(pa) and Polypropylene(pp) are workable. 2. Colors: black, other colors could be customizable. 3. Working Temperature: -30℃~+100℃ (+120℃ in a short time) 4. Market Location: Middle-grade Products 5. Usage: Plastic cable conduit is used to protect the wire and cables. Widely used in machine, auto, shipping, lighti ...
  • PRODUCT DETAIL

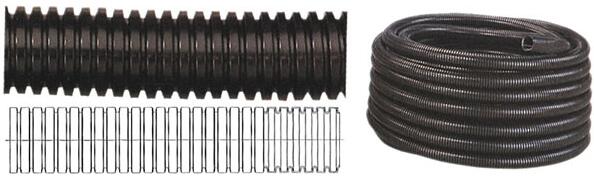

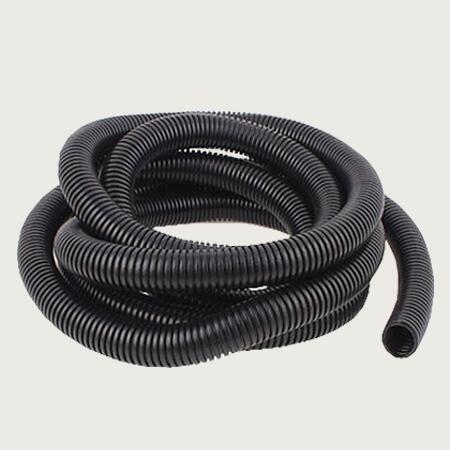

Plastic Cable Conduit



Products introduction:

1. General Material: Polyethylene(PE).            Nylon(pa) and Polypropylene(pp) are workable.

2. Colors: black, other colors could be customizable.

3. Working Temperature: -30℃~+100℃ (+120℃ in a short time)

4. Market Location: Middle-grade Products

5. Usage: Plastic cable conduit is used to protect the wire and cables. Widely used in machine, auto, shipping, lighting, automation etc.

6. General Size:

Types Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-PE-7 4.5 7.0 200
Flex-PE-8 5.5 8.5 100
Flex-PE-10 6.5 10.0 100
Flex-PE-11 8.5 11.5 100
Flex-PE-13 10.0 13.0 100
Flex-PE-15 12.0 15.8 100
Flex-PE-18 14.3 18.5 100
Flex-PE-20 16.0 20.0 100
Flex-PE-21 17.0 21.2 100
Flex-PE-25 21.0 25.0 100
Flex-PE-28 23.0 28.5 100
Flex-PE-34 29.0 34.5 50
Flex-PE-42 36.0 42.5 25
Flex-PE-54 48.0 54.5 25
Flex-PE-67 56.3 67.2 25
Flex-PE-80 66.5 80.0 20
Flex-PE-106 91.0 106.0 20

Tolerance: ±0.2mm

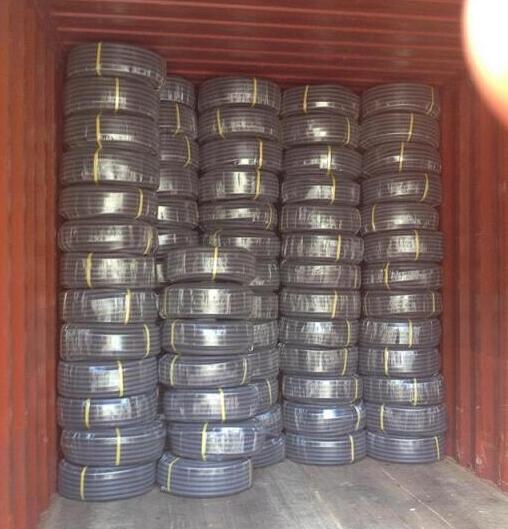

7. Loading:

Plastic-Cable-Conduit-03



Remarks:

MOQ: 100m

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Customizable Service: Plastic cable conduit customizable is workable for us. Such as materials, sizes, logo, packing quantity, packages, split or not, fire-proof, pull the wire in requirements etc.
