Round Plastic Conduit Clamps
- PRODUCT DETAIL
Products Details:
Show:

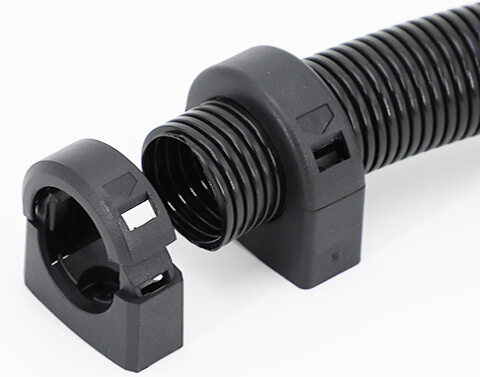

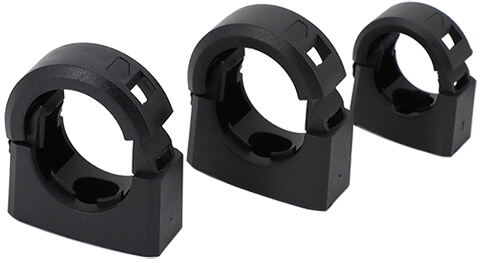

round plastic conduit clamps
Usage:
round plastic conduit clamps are widely used to fix plastic flexible conduit or split loom tubing
Material:
Nylon(PA66)
Types:
Clamps with cover.
Working Temperature:
-20℃~ +110℃
Size:
| Part No. | Matched Plastic Conduit Outer Diameter | Height | Width | Hole Diameter |
| Flex-10-R | AD10.0(1/4″) | 23.3mm | 22.6mm | 4.2mm |
| Flex-13-R | AD13.0(3/8″) | 23.3mm | 22.6mm | 4.2mm |
| Flex-16-R | AD15.8(1/2″) | 26.9mm | 26.7mm | 5.1mm |
| Flex-21-R | AD21.2(5/8″) | 34.9mm | 33.8mm | 6.1mm |
| Flex-28-R | AD28.5(7/8″) | 43.7mm | 43.8mm | 6.1mm |
| Flex-34-R | AD34.5(1″) | 51.6mm | 52.8mm | 6.2mm |
| Flex-42-R | AD42.5(1-1/2″) | 62.5mm | 64.5mm | 6.2mm |
| Flex-54-R | AD54.5(2″) | 77.0mm | 81.0mm | 6.2mm |
Remarks:
MOQ:
100pcs.
Payments:
T/T, Western Union, Paypal are available. Others are negotiated.
Customizable Service:
Round plastic conduit clamps’ customizable is workable. Such as sizes, logo, packing quantity, packages etc.
