Strain Relief Cable Gland
- PRODUCT DETAIL
Strain Relief Cable Gland
■ Product introduction:
1. Material: pa66, rubber
2. Thread: metric(long thread and short thread), PG, G(PF), NPT
3. Working Temperature: -40℃~+120℃
4. Feature: strain relief cable gland can hold cable firmly and have a wider cable range. They are widely used in wire and cable managements. And it can also resistant to salt water, weak acid, alcohol, oil, grease and common solvency.

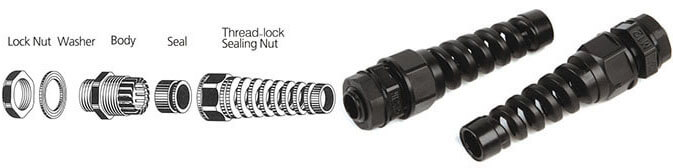

■ Product Structure:
strain relief cable gland
■ Product Size:
Metric Thread
|
Thread |
Part No. |
Cable Range |
Thread Length |
Spanner Size |
|
(mm) |
(mm) |
(mm) |
||
|
M12 x 1.5 |
FCG-M12S -6 |
2-6 |
8.5 |
18/15 |
|
FCG-M12SL-6 |
2-6 |
15 |
18/15 |
|
|
FCG-M12 -7 |
3-7 |
8.5 |
18/19 |
|
|
FCG-M12L -7 |
3-7 |
15 |
18/19 |
|
|
M16 x 1.5 |
FCG-M16S -8 |
4-8 |
10 |
22/19 |
|
FCG-M16SL-8 |
4-8 |
15 |
22/19 |
|
|
FCG-M16 -10 |
6-10 |
10 |
22/22 |
|
|
FCG-M16L -10 |
6-10 |
15 |
22/22 |
|
|
M18×1.5 |
FCG-M18-10 |
6-10 |
10 |
24/22 |
|
FCG-M18L-10 |
6-10 |
15 |
24/22 |
|
|
M20 x 1.5 |
FCG-M20M -10 |
6-10 |
10 |
27/22 |
|
FCG-M20S -12.5 |
7-12.5 |
10 |
27/24 |
|
|
FCG-M20SL-12.5 |
7-12.5 |
15 |
27/24 |
|
|
FCG-M20 -14 |
8.5-14 |
11 |
27/27 |
|
|
FCG-M20L -14 |
8.5-14 |
15 |
27/27 |
|
|
M22 x 1.5 |
FCG-M22 -14 |
8.5-14 |
11 |
30/27 |
|
M25 x 1.5 |
FCG-M25S -14 |
8.5-14 |
11.6 |
33/27 |
|
FCG-M25 -18 |
12.5-18 |
11.6 |
33/33 |
|
|
FCG-M25L -18 |
12.5-18 |
15 |
33/33 |
PG Thread
|
Thread |
Part No. |
Cable Range |
Thread Length |
Spanner Size |
|
(mm) |
(mm) |
(mm) |
||
|
PG7 |
FCG-PG7S -6 |
2-6 |
8 |
17/15 |
|
FCG-PG7SL -6 |
2-6 |
15 |
17/15 |
|
|
FCG-PG7 -7 |
3-7 |
8 |
17/19 |
|
|
PG9 |
FCG-PG9 -8 |
4-8 |
8.2 |
22/19 |
|
FCG-PG9L -8 |
4-8 |
15 |
22/19 |
|
|
PG11 |
FCG-PG11-10 |
6-10 |
10 |
24/22 |
|
FCG-PG11L -10 |
6-10 |
15 |
24/22 |
|
|
PG13.5 |
FCG-PG13.5-12.5 |
7-12.5 |
10 |
27/24 |
|
FCG-PG13.5L-12.5 |
7-12.5 |
15 |
27/24 |
|
|
PG16 |
FCG-PG16-14 |
8.5-14 |
10.8 |
30/27 |
|
FCG-PG16L -14 |
8.5-14 |
15 |
30/27 |
|
|
PG19 |
NCG-PG19 -14 |
8.5-14 |
11 |
30/27 |
|
PG21 |
FCG-PG21-18 |
12.5-18 |
12 |
36/33 |
|
FCG-PG21L -18 |
12.5-18 |
15 |
36/33 |
G(PF) Thread
|
Thread |
Part No. |
Cable Range |
Thread Length |
Spanner Size |
|
(mm) |
(mm) |
(mm) |
||
|
G3/8 |
FCG-G3/8-10 |
6-10 |
10 |
22/22 |
|
G1/2 |
FCG-G1/2-12.5 |
7-12.5 |
10 |
27/24 |
|
G3/4 |
FCG-G3/4-18 |
12.5-18 |
12 |
33/27 |
NPT Thread
|
Thread |
Part No. |
Cable Range |
Thread Length |
Spanner Size |
|
(mm) |
(mm) |
(mm) |
||
|
NPT3/8 |
FCG-NPT3/8-10 |
6-10 |
10 |
22 |
|
NPT1/2 |
FCG-NPT1/2-12.5 |
7-12.5 |
10 |
24 |
|
NPT3/4 |
FCG-NPT3/4-18 |
12.5-18 |
15 |
33 |
■ Payment Detail:
MOQ: 100pcs
Payment Method: T/T, Western Union, Paypal are available.
Payment Term: 30% deposit paid in advance, T/T balance before delivery.
