Product name :  Wire Loom Reducer Ring
Material : Polyamide(PA)
 Enlarge Image                   Back



Details:

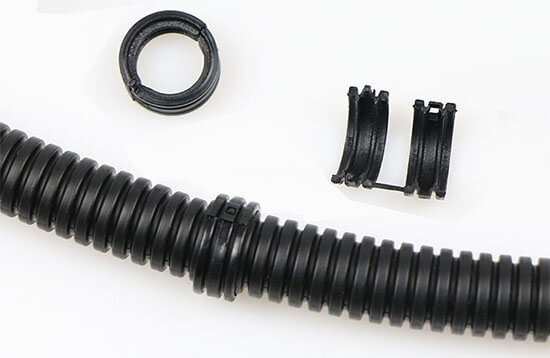

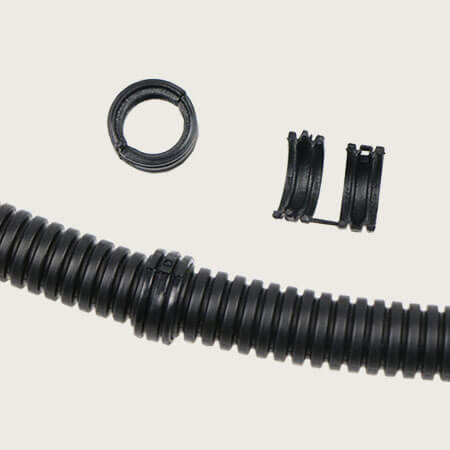

Wire Loom Reducer Ring



Products Technical Date:

1. Show:

Wire Loom Reducer Ring

2. Material:

polyamide(pa)

3. Working Temperature:

-20℃~ +130℃

4. Usage:

wire loom reducer ring is often used for wire loom tee connectors, to adjust the wire loom tubing outer diameter.

5. Packaging:

PE film bags coated with carton.

6. Sizes Chart:

Part No. Reducere Ring
Package
Outer Diameter
Inner Diameter
WLRR-10-7 10mm 7mm 100pcs/bag
WLRR-13-10 13mm 10mm 100pcs/bag
WLRR-16-13 16mm 13mm 100pcs/bag
WLRR-21-16 21.2mm 15mm 100pcs/bag
WLRR-21-2*10 21.2mm 10mm(2holes) 100pcs/bag
WLRR-25-3*10 25mm 10mm(3holes) 100pcs/bag
WLRR-25-21 25mm 21.2mm 100pcs/bag



Shpping & Payment:

MOQ: 100pcs.

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Customizable Service: wire loom reducer ring customizable service is workable for us. Such as sizes, logo, packing quantity, packages etc.
