Y Shape Conduit Coupler

Products Introduction: Materials: TPR rubber Color: black(general) Temperature: -40℃~+100℃ Protection Level: IP66 Function: Y shape conduit coupler is widely used to connect wire loom tubing or corrugated flexible conduit. Show:  Y Shape Conduit Coupler Y Shape Conduit Coupler Specifications: Types Main Hole Matched Outer Diameter Branch Hole Matched Outer Diameter Branch Matched Outer Di ...
  • PRODUCT DETAIL

Products Introduction:

Materials:

TPR rubber

Color:

black(general)

Temperature:

-40℃~+100℃

Protection Level:

IP66

Function:

Y shape conduit coupler is widely used to connect wire loom tubing or corrugated flexible conduit.

Show:

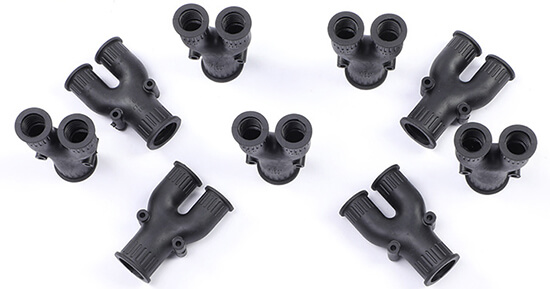

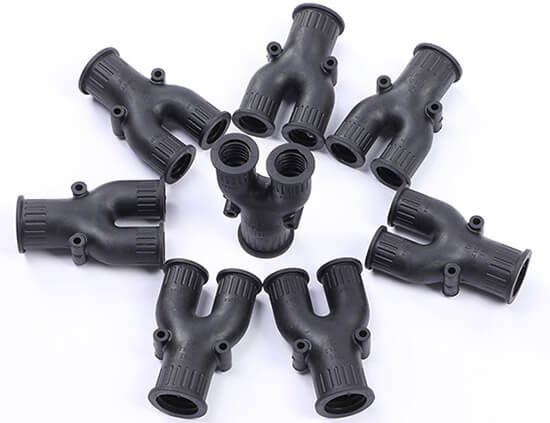

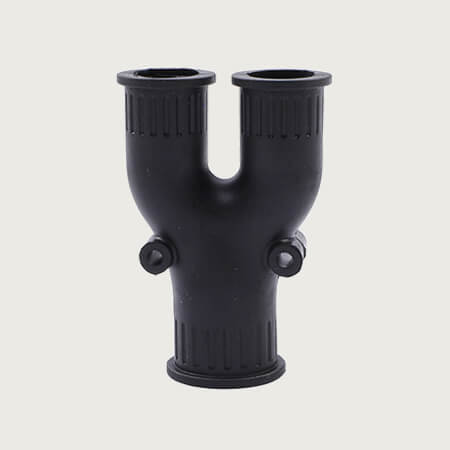

Y Shape Conduit Coupler
Y Shape Conduit Coupler

Y Shape Conduit Coupler
Y Shape Conduit Coupler

Specifications:

Types Main Hole Matched Outer Diameter Branch Hole Matched Outer Diameter Branch Matched Outer Diameter
FLEX-10Y 10mm 10mm 10mm
FLEX-1310Y 13mm 10mm 10mm
FLEX-13Y 13mm 13mm 13mm
FLEX-1513Y 15.8mm 13mm 13mm
FLEX-15Y 15.8mm 15.8mm 15.8mm
FLEX-1815Y 18.5mm 15.8mm 15.8mm
FLEX-18Y 18.5mm 18.5mm 18.5mm
FLEX-2118Y 21.2mm 18.5mm 18.5mm
FLEX-21Y 21.2mm 21.2mm 21.2mm
FLEX-2821Y 28.5mm 21.2mm 21.2mm
FLEX-34Y 34.5mm 28.5mm 28.5mm
FLEX-42Y 42.5mm 34.5mm 34.5mm



Remarks:

MOQ: 100pcs.

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Customizable Service: Y shape conduit coupler customizable is workable for us. Such as sizes, logo, packing quantity, packages etc.
