Product name :  Cable Conduits
Material : Polyamide(PA)
 Enlarge Image                   Back



Details:

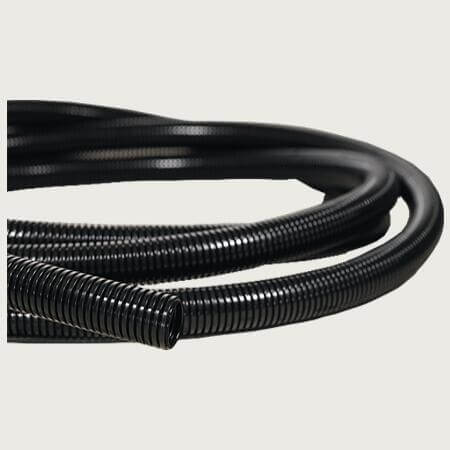

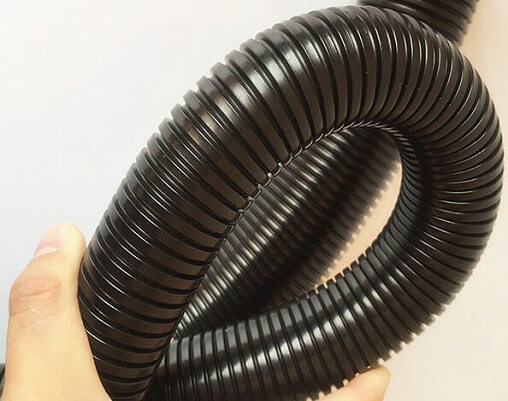

Cable Conduits



Cable Conduits

Products introduction:

1. General Material: Polyamide(pa), polypropylene(pp) and polyethylene(pe) are aslo workable.

2. Colors: Black(general), others could be customizable

3. Working Temperature: -40℃~+125℃ (+140℃ in a short time)

4. Certificates: Rohs, CE, ISO9001:2008

5. Our Thrength: Cable conduits are produced by stable and reliable materials, better mold maintenance. Cable Conduits are used in wire and cable protection industry. Widely used in machinery, construction, auto, metro, automation etc.

6. Size:

Types Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-PA-7 4.5 7.0 200
Flex-PA-8 5.5 8.5 100
Flex-PA-10 6.5 10.0 100
Flex-PA-11 8.5 11.5 100
Flex-PA-13 10.0 13.0 100
Flex-PA-15 12.0 15.8 100
Flex-PA-18 14.3 18.5 100
Flex-PA-20 16.0 20.0 100
Flex-PA-21 17.0 21.2 100
Flex-PA-25 21.0 25.0 100
Flex-PA-28 23.0 28.5 100
Flex-PA-34 29.0 34.5 50
Flex-PA-42 36.0 42.5 25
Flex-PA-54 48.0 54.5 25
Flex-PA-67 56.3 67.2 25
Flex-PA-80 66.5 80.0 20
Flex-PA-106 91.0 106.0 20

Tolerance: ±0.2mm

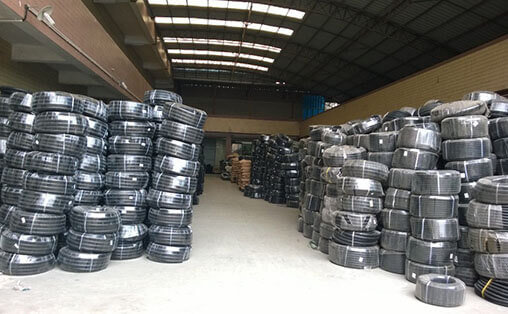

8. Warehouse:

Remarks:

MOQ: 100m

Payment: T/T, Paypal, Western Union are available, others are negotiated.

Customizable Service: Customizable service is vailable for us. Such as packing quantity, label, packages, color, fire-proof property, split etc.

If you have any questions about Cable Conduits, Welcome to send us emails for assistance.
