Product name :  Flexible Metal Conduit
Material : Galvanized Steel(GI)
 Enlarge Image                   Back



Details:

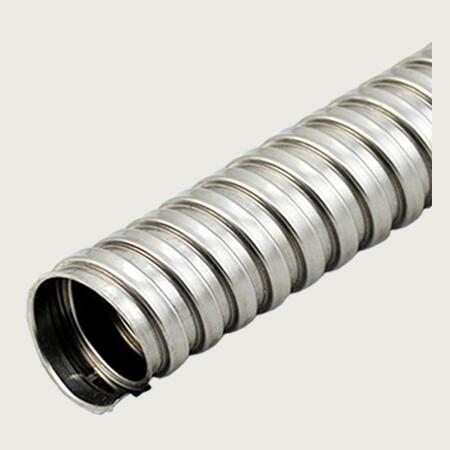

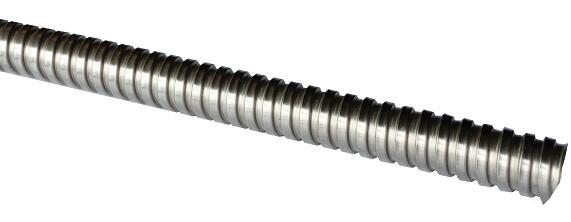

Flexible Metal Conduit

Flexible Metal Conduit

Single Lock Flexible Metal Conduit



Flexible Metal Conduit

Double Lock Flexible Metal Conduit



Products introduction:

1.Material: Galvanized steel,    201 stainless steel and 304 stainless steel are also workable.

2. Market Location: Mid-grade Products

3. Our Thrength: With the best available materials, and the surface is smooth. With better appearance, flexible and stable properties.

4. Function: Flexible Metal Conduit is widely used in wire and cable protection. Especially in electronic communication. The price depends on materials, thickness of steel, the width of steel.

5. Size:

Types Inch Size Inside Diameter(mm) Outside Diameter(mm) Length of Roll(m)
Flex-GM-5 3/16″ 5.70~6.00 8.20~8.45 100
Flex-GM-7 1/4″ 7.80~8.10 11.00~11.30 100
Flex-GM-9 5/16″ 9.70~10.00 13.50~13.85 50
Flex-GM-12 3/8″ 12.30~12.60 15.50~15.85 50
Flex-GM-15 1/2″ 15.70~16.00 20.00~20.35 50
Flex-GM-19 3/4″ 19.70~20.00 24.30~24.70 50
Flex-GM-25 1″ 25.30~25.80 30.30~30.75 50
Flex-GM-32 1-1/4″ 32.30~32.80 38.00~38.50 25
Flex-GM-38 1-1/2″ 38.30~38.80 45.00~45.60 25
Flex-GM-50 2″ 50.00~50.50 58.00~59.00 20
Flex-GM-62 2-1/2″ 62.50~63.20 72.50~74.00 10
Flex-GM-73 3″ 73.00~73.70 83.50~85.50 10
Flex-GM-97 4″ 97.50~98.50 108.50~111.50 10



Remarks:

MOQ: 100m

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

General Payment: 35% deposit, T/T balance before delivery.

Customizable Service: Flexible Metal Conduit customizable is workable for us. Such as materials, sizes, logo, packing quantity, packages etc.
