2 Hole Strap

Products Technical Date: 1. Show: 2. Material: 304 and 316 Stainless Steel, Galvanised Steel 3. Packaging: PE film bags coated with carton. 4. Sizes: Part No. Matched Conduit OD Width Length Hole OD Holes Distance Thickness Flex-SBKG-M5 5 12 39 4 24 ≥0.6 Flex-SBKG-M8 8 12 36 4 22 ≥0.6 Flex-SBKG-M10 10 12 41 4 25 ≥0.6 Flex-SBKG-M12 12 12 42 4 27 ≥0.6 Flex-SBKG-M14 14 12 46 4 32 ≥0.6 ...
  • PRODUCT DETAIL

Products Technical Date:

1. Show:

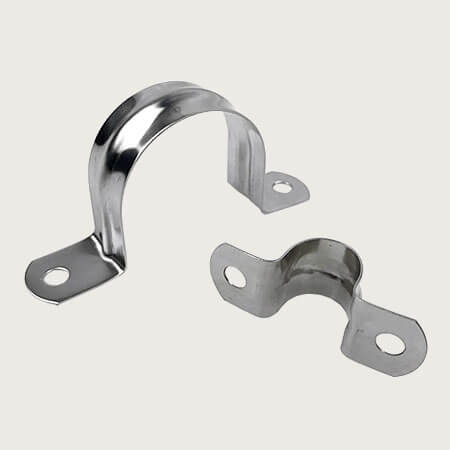

2 Hole Strap

2. Material:

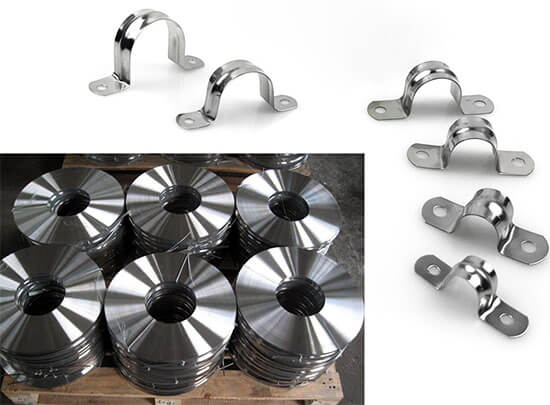

2 Hole Strap Material

304 and 316 Stainless Steel, Galvanised Steel

3. Packaging:

PE film bags coated with carton.

4. Sizes:

Part No. Matched Conduit OD Width Length Hole OD Holes Distance Thickness
Flex-SBKG-M5 5 12 39 4 24 ≥0.6
Flex-SBKG-M8 8 12 36 4 22 ≥0.6
Flex-SBKG-M10 10 12 41 4 25 ≥0.6
Flex-SBKG-M12 12 12 42 4 27 ≥0.6
Flex-SBKG-M14 14 12 46 4 32 ≥0.6
Flex-SBKG-M16 16 18 53 6 38 ≥0.6
Flex-SBKG-M20 20 18 58 6 43 ≥0.6
Flex-SBKG-M22 22 18 68 6 53 ≥0.6
Flex-SBKG-M25 25 18 69 6 55 ≥0.6
Flex-SBKG-M27 27 18 72 6 57 ≥0.6
Flex-SBKG-M32 32 18 75 6 60 ≥0.6
Flex-SBKG-M35 35 18 81 6 66 ≥0.6
Flex-SBKG-M40 40 18 84 6 70 ≥0.6
Flex-SBKG-M42 42 18 87 6 73 ≥0.6
Flex-SBKG-M45 45 18 93 6 79 ≥0.6
Flex-SBKG-M50 50 18 100 6 85 ≥0.6
Flex-SBKG-M60 60 18 114 6 98 ≥0.6
Flex-SBKG-M63 63 18 115 6 100 ≥0.6
Flex-SBKG-M65 65 18 116 6 101 ≥0.6
Flex-SBKG-M70 70 18 123 6 107 ≥0.6
Flex-SBKG-M75 75 18 127 6 113 ≥0.6
Flex-SBKG-M80 80 18 137 6 122 ≥0.6
Flex-SBKG-M90 90 18 138 6 124 ≥0.6



Shpping & Payment:

MOQ: 100pcs.

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Customizable Service: 2 hole strap customizable is workable for us. Such as sizes, logo, packing quantity, packages etc.
