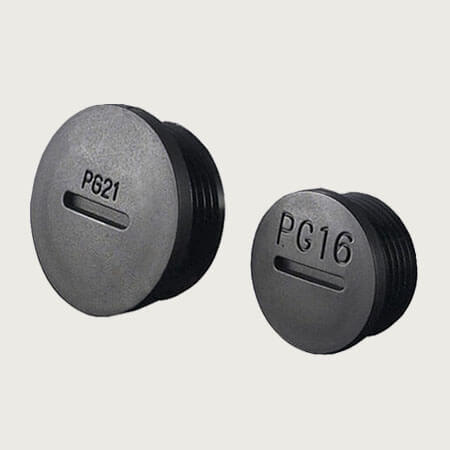

Cable Gland Screw Plugs

■ Product introduction: 1. Material: pa66(ul approved) 2. Working Temperature: -40°c—+120°c 3. Thread: metric thread, pg thread 4. Function: cable gland screw plugs are widely used in cable managements, with the best water/salt/acid/alcohol/oil proof properties. 5. Structure: cable gland screw plugs structure   ■ Product Size: metric thread Thread Part No. Outer Diameter/mm ...
  • PRODUCT DETAIL

■ Product introduction:

1. Material: pa66(ul approved)

2. Working Temperature: -40°c—+120°c

3. Thread: metric thread, pg thread

4. Function: cable gland screw plugs are widely used in cable managements, with the best water/salt/acid/alcohol/oil proof properties.

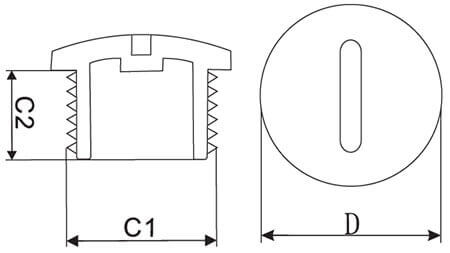

5. Structure:

cable gland screw plugs structure
cable gland screw plugs structure



■ Product Size:

metric thread

Thread
Part No.
Outer Diameter/mm
Thread Length/mm
Package/pcs
M12*1.5
FLEX-MG-M12
15
8
100
M16*1.5
FLEX-MG-M16
20
8
100
M18*1.5
FLEX-MG-M18
22
8
100
M20*1.5
FLEX-MG-M20
25
9
100
M22*1.5
FLEX-MG-M22
27
10
100
M25*1.5
FLEX-MG-M25
30
10
100
M27*2.0
FLEX-MG-M27
33
10
100
M32*1.5
FLEX-MG-M32
39
11
50
M40*1.5
FLEX-MG-M40
46
12
50
M50*1.5
FLEX-MG-M50
57
11
50
M63*1.5
FLEX-MG-M63
70
12
50

pg thread

Thread
Part No.
Outer Diameter/mm
Thread Length/mm
Package/pcs
PG7
FLEX-MG-PG7
15
8
100
PG9
FLEX-MG-PG9
19
8
100
PG11
FLEX-MG-PG11
22
8
100
PG13.5
FLEX-MG-PG13.5
25
9
100
PG16
FLEX-MG-PG16
27
10
100
PG21
FLEX-MG-PG21
33
11
100
PG29
FLEX-MG-PG29
44
11
50
PG36
FLEX-MG-PG36
55
11
50
PG42
FLEX-MG-PG42
62
11
50
PG48
FLEX-MG-PG48
69
12
50



■ Payment Detail:

MOQ: 100pcs
Payments: T/T, Western Union, Paypal are available.
General Payment: 30% deposit paid in advance, T/T balance before delivery.
