Quick Conduit Connector

Products Technical Date: 1. Material: Polyamide(pa) 2. Working Temperature: -20℃~ +110℃ 3. Threads: PG, Metric, G(PF) 4. Packaging: PE film bags, with carton. Packing quantity based on the specification 5. Sizes: Match Conduit Outer Diameter Metric Type Metric Type G(PF) Type Part No. M Thread Part No. PG Thread Part No. G Thread 10.0mm Flex-1012ZM M12*1.5 Flex-1007Z PG7 Flex-10ZG G1/4 ...
  • PRODUCT DETAIL

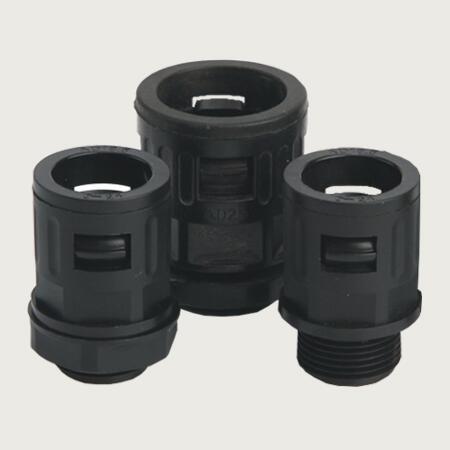

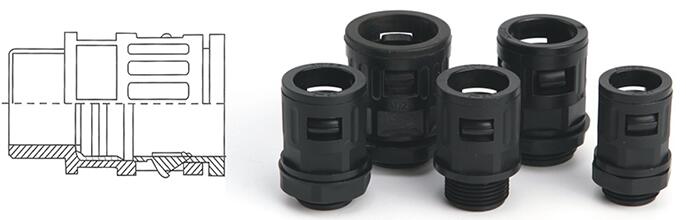

Conduit Connector

Products Technical Date:

1. Material:

Polyamide(pa)

2. Working Temperature:

-20℃~ +110℃

3. Threads:

PG, Metric, G(PF)

4. Packaging:

PE film bags, with carton. Packing quantity based on the specification

5. Sizes:

Match Conduit Outer Diameter Metric Type Metric Type G(PF) Type
Part No. M Thread Part No. PG Thread Part No. G Thread
10.0mm
Flex-1012ZM M12*1.5 Flex-1007Z PG7 Flex-10ZG G1/4
13.0mm
Flex-1312ZM M12*1.5 Flex-1309Z PG9 Flex-13ZG G3/8
Flex-1316ZM M16*1.5
Flex-1318ZM M18*1.5
15.8mm
Flex-1516ZM M16*1.5 Flex-1511Z PG11 Flex-15ZG G3/8
Flex-1518ZM M18*1.5 Flex-16ZG G1/2
Flex-1520ZM M20*1.5
18.5mm
Flex-1820ZM M20*1.5 Flex-1813Z PG13.5 Flex-18ZG G1/2
Flex-1822ZM M22*1.5
21.2mm
Flex-2120ZM M20*1.5 Flex-2116Z PG16 Flex-21ZG G1/2
Flex-2124ZM M24*1.5 Flex-22ZG G3/4
Flex-2125ZM M25*1.5
25.0mm
Flex-2525ZM M25*1.5
28.5mm
Flex-2825ZM M25*1.5 Flex-2821Z PG21 Flex-28ZG G3/4
Flex-2827ZM M27*1.5
Flex-2830ZM M30*1.5
Flex-2832ZM M32*1.5
34.5mm
Flex-3432ZM M32*1.5 Flex-3429Z PG29 Flex-34ZG G1
Flex-3436ZM M36*1.5
Flex-3440ZM M40*1.5
42.5mm
Flex-4240ZM M40*1.5 Flex-4236Z PG36 Flex-42ZG G1-1/4
Flex-4248ZM M48*1.5 Flex-43ZG G1-1/2
54.5mm
Flex-5450ZM M50*1.5 Flex-5442Z PG42 Flex-54ZG G1-1/2
Flex-5463ZM M63*1.5 Flex-5448Z PG48 Flex-55ZG G2



Remarks:

MOQ:

100pcs.

Payments:

T/T, Western Union, Paypal are available. Others are negotiated.

Customizable Service:

Quick conduit connector customizable is workable for us. Such as sizes, logo, packing quantity, packages etc.
