Product name :  Wire Loom Angle
Material : Polyamide(PA)
 Enlarge Image                   Back
             [Next Product]→


Details:

Wire Loom Angle Connectors

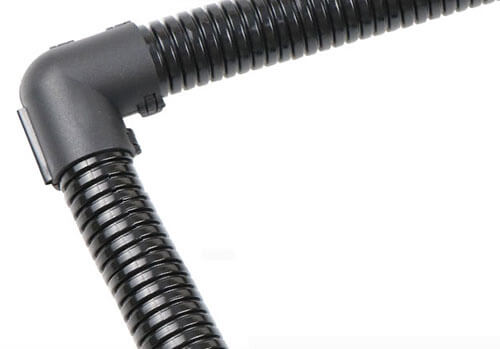

Wire Loom Angle Connectors Usage

Products Technical Date:

1. Material: Polyamide(pa)

2. Working Temperature: -20℃~ +110℃

3. Packaging: PE film bags, with carton.



Structure & Sizes:

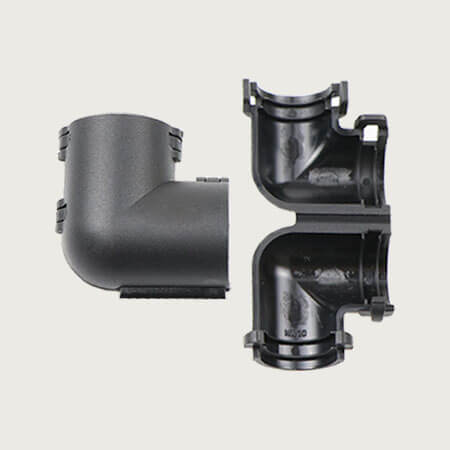

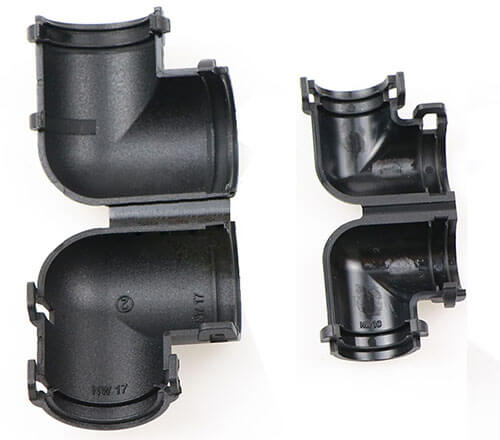

Wire Loom Angle Connectors Structure

Specification
plastic conduit OD
plastic conduit OD
mm inch mm inch
FLEX-KW-10/10
10 1/4″ 10 1/4″
FLEX-KW-10/13
10 1/4″ 13 5/16″
FLEX-KW-10/16
10 1/4″ 16 3/8″
FLEX-KW-10/21 10 1/4″ 21 1/2″
FLEX-KW-13/13 13 5/16″ 13 5/16″
FLEX-KW-13/16 13 5/16″ 16 3/8″
FLEX-KW-16/16 16 3/8″ 16 3/8″
FLEX-KW-16/21 16 3/8″ 21 1/2″
FLEX-KW-16/25 16 3/8″ 25
FLEX-KW-21/21 21 1/2″ 21 1/2″
FLEX-KW-21/25 21 1/2″ 25
FLEX-KW-25/25 25 25
For more sizes, please contact our sales.



Remarks:

MOQ: 100pcs.

Payments: T/T, Western Union, Paypal are available. Others are negotiated.

Custom Service: wire loom angle connectors custom service is workable for us. Such as sizes, logo, packing quantity, packages etc.
