Convoluted Tubing
- PRODUCT DETAIL
Products introduction:
1. Material:
Polypropylene(PP).
Nylon(PA), Polyethylene(PE) etc.
2. Colors:
Black, others could be customizable
3. Working Temperature:
-20℃~+120℃
4. Structure:
Both split and non-split are workable for us.
5. Using Place:

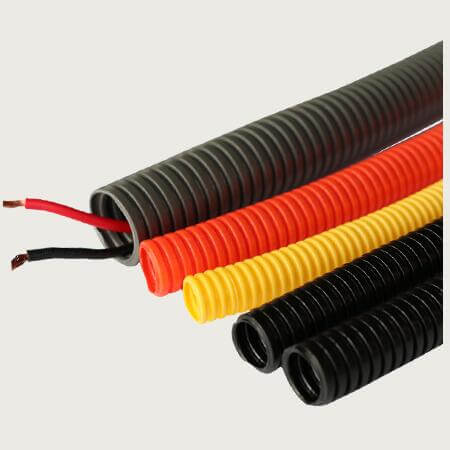

Convoluted tubing is widely used to protect wire and cables.
6. Size:
| Non-split Type | Split Type | Inch Size | Inside Diameter(mm) | Outside Diameter(mm) | Length of Roll(m) |
| Flex-PP-7 | Flex-SPP-7 | 1/8″ | 4.5 | 7.0 | 200 |
| Flex-PP-10 | Flex-SPP-10 | 1/4″ | 6.5 | 10.0 | 100 |
| Flex-PP-11 | Flex-SPP-11 | – | 8.5 | 11.5 | 100 |
| Flex-PP-13 | Flex-SPP-13 | 3/8″ | 10.0 | 13.0 | 100 |
| Flex-PP-15 | Flex-SPP-15 | 1/2″ | 12.0 | 15.8 | 100 |
| Flex-PP-18 | Flex-SPP-18 | – | 14.3 | 18.5 | 100 |
| Flex-PP-20 | Flex-SPP-20 | – | 16.0 | 20.0 | 100 |
| Flex-PP-21 | Flex-SPP-21 | 5/8″ | 17.0 | 21.2 | 100 |
| Flex-PP-25 | Flex-SPP-25 | 3/4″ | 21.0 | 25.0 | 100 |
| Flex-PP-28 | Flex-SPP-28 | – | 23.0 | 28.5 | 100 |
| Flex-PP-34 | Flex-SPP-34 | 1″ | 29.0 | 34.5 | 50 |
| Flex-PP-42 | Flex-SPP-42 | 1-1/2″ | 36.0 | 42.5 | 25 |
| Flex-PP-54 | Flex-SPP-54 | 2″ | 48.0 | 54.5 | 25 |
| Flex-PP-67 | Flex-SPP-67 | 2-1/2″ | 56.3 | 67.2 | 25 |
| Flex-PP-80 | Flex-SPP-80 | 3″ | 66.5 | 80.0 | 20 |
| Flex-PP-106 | Flex-SPP-106 | 4″ | 91.0 | 106.0 | 20 |

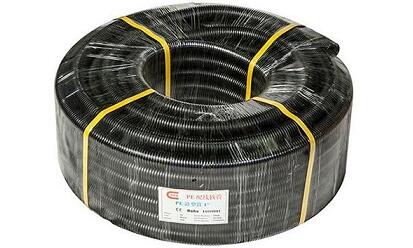

7. General Package show:
Remarks:
MOQ: 100m
Payments: T/T, Western Union, Paypal are available. Others are negotiated.
General Payment: 30% deposit, T/T balance before delivery.
Customizable Service: convoluted tubing customizable is workable for us. Such as materials, sizes, logo, packing quantity, packages, split, fire-proof etc.
