Dual Wall Heat Shrink
- PRODUCT DETAIL
■ Products introduction:
1. Material: eva, hot-melt adhesive
2. Shrink ratio: 4:1, 3:1 also workable for us
3. Working temperature: -45~+125°C
4. General color: black
5. Certificates: UL, RoHS
6. Colors: black, white, yellow, red, green, blue, transparent. more colors please contact our sales.
7. Function: dual wall heat shrink tubing is widely used in electronic facilities wiring system. Especially in the requirements of waterproof, repairment of wire and cables, wire connections and other industrial field.
8. Show:

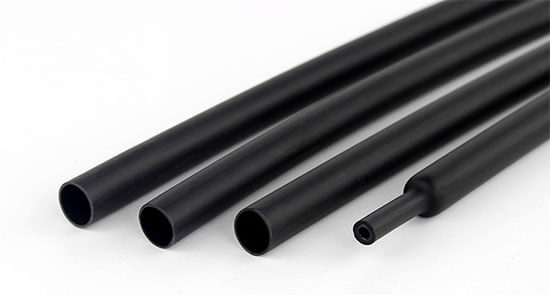

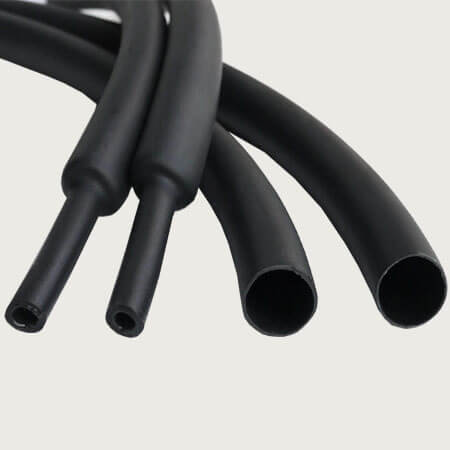

dual wall heat shrink tubing show

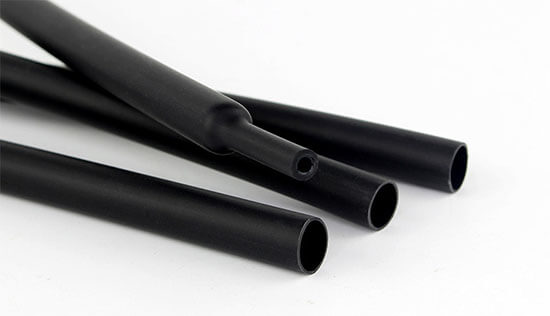

dual wall heat shrink tubing show

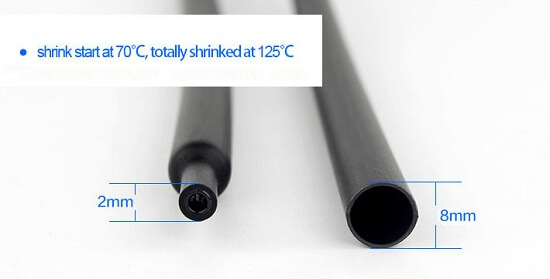

shrink before and shrinked
9. Size:
4:1 dual wall heat shrink tubing
| Types(mm) | Inch Size | Before Shrink | Shrink After | Adhesive Thickness |
Packing Unit
|
|
| Inner Diameter | Inner Diameter | Thickness | ||||
| DHST4-004 | 2/13″ | 4.0 | 1.0 | 1.0 | 0.4 | 200m/roll |
| DHST4-006 | 1/4″ | 6.0 | 1.5 | 1.1 | 0.4 | 100m/roll |
| DHST4-008 | 5/16″ | 8.0 | 2.0 | 1.5 | 0.5 | 50m/roll |
| DHST4-012 | 1/2″ | 12.0 | 3.0 | 1.7 | 0.5 | 1.22m/pcs |
| DHST4-016 | 5/8″ | 16.0 | 4.0 | 2.0 | 0.5 | 1.22m/pcs |
| DHST4-020 | 15/19″ | 20.0 | 5.0 | 2.3 | 0.6 | 1.22m/pcs |
| DHST4-024 | 1″ | 24.0 | 6.0 | 2.5 | 0.6 | 1.22m/pcs |
| DHST4-032 | 1-1/4″ | 32.0 | 8.0 | 2.8 | 0.7 | 1.22m/pcs |
| DHST4-052 | 2″ | 52.0 | 13.0 | 3.0 | 0.7 | 1.22m/pcs |
3:1 dual wall heat shrink tubing
| Types(mm) | Inch Size | Before Shrink | Shrink After | Adhesive Thickness |
Packing Unit
|
|
| Inner Diameter | Inner Diameter | Thickness | ||||
| DHST3-024 | 3/32″ | 2.4 | 0.8 | 0.85 | 0.35 | 200m/roll |
| DHST3-032 | 1/8″ | 3.2 | 1.0 | 1.0 | 0.40 | 200m/roll |
| DHST3-048 | 3/16″ | 4.8 | 1.6 | 1.1 | 0.40 | 100m/roll |
| DHST3-064 | 1/4″ | 6.4 | 2.0 | 1.2 | 0.50 | 100m/roll |
| DHST3-079 | 5/16″ | 7.9 | 2.7 | 1.4 | 0.50 | 100m/roll |
| DHST3-096 | 3/8″ | 9.5 | 3.2 | 1.4 | 0.50 | 50m/roll |
| DHST3-127 | 1/2″ | 12.7 | 4.2 | 1.7 | 0.60 | 1.22m/pcs |
| DHST3-015 | 5/8″ | 15.0 | 5.0 | 1.8 | 0.60 | 1.22m/pcs |
| DHST3-191 | 3/4″ | 19.1 | 6.3 | 2.0 | 0.60 | 1.22m/pcs |
| DHST3-254 | 1″ | 25.4 | 8.5 | 2.1 | 0.60 | 1.22m/pcs |
| DHST3-030 | 1-1/4″ | 30.0 | 10.2 | 2.2 | 0.60 | 1.22m/pcs |
| DHST3-039 | 1-1/2″ | 39.0 | 13.5 | 2.4 | 0.60 | 1.22m/pcs |
| DHST3-050 | 2″ | 50.0 | 17.0 | 2.7 | 0.70 | 1.22m/pcs |
| DHST3-064 | 2-1/2″ | 64.0 | 21.0 | 3.0 | 0.70 | 1.22m/pcs |
| DHST3-075 | 3″ | 75.0 | 25.0 | 3.2 | 1.0 | 1.22m/pcs |
| DHST3-090 | 3-1/2″ | 90.0 | 30.0 | 3.3 | 1.0 | 1.22m/pcs |
| DHST3-100 | 4″ | 100.0 | 34.0 | 3.5 | 1.2 | 1.22m/pcs |
| DHST3-125 | 5″ | 125.0 | 42.0 | 3.5 | 1.2 | 1.22m/pcs |
■ Payments Details:
MOQ: 100m
Payments: T/T, Western Union, Paypal are available. Others please contact sales
General Payment: 30% deposit paid in advance, balance before delivery.
Custom Service: dual wall heat shrink tubing custom service is workable for us, such as packing quantity, packages, length, width, colors etc.
