Home>Products>Heat Shrink Tubing>Adhesive Heat Shrink
Product name :  Adhesive Heat Shrink
Material : 3:1
 Enlarge Image                   Back



Details:

Adhesive Heat Shrink tubing



adhesive heat shrink tubing shrink later and before
adhesive heat shrink tubing shrink later and before

■ Products introduction:

1. Material: eva, hot-melt adhesive

2. Shrink ratio: 3:1, 4:1 also workable for us.

3. Working temperature: -45~+125°C

4. General color: black

5. Certificates: UL, RoHS

6. Colors: black, white, yellow, red, green, blue, transparent. more colors please contact our sales.

7. Function: adhesive heat shrink tubing is widely used in electronic facilities wiring system. Especially in the requirements of waterproof, repairment of wire and cables, wire connections and other industrial field.

8. Show:

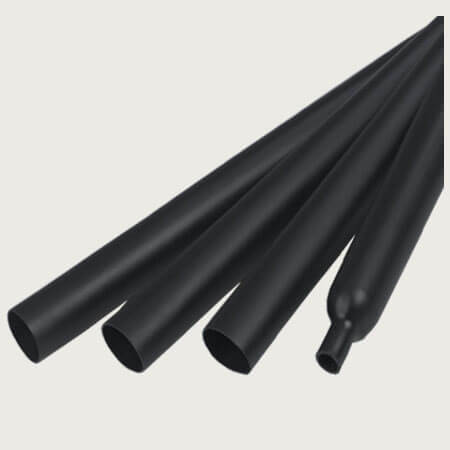

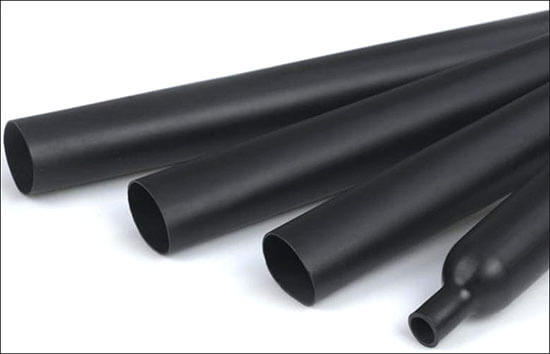

adhesive heat shrink tubing show
adhesive heat shrink tubing show

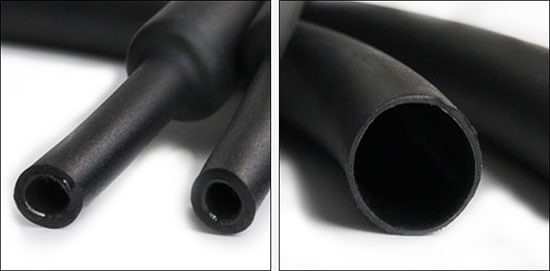

adhesive heat shrink tubing inner hot-melt adhesive
adhesive heat shrink tubing inner hot-melt adhesive

9. Size:

3:1 adhesive heat shrink tubing

Types(mm) Inch Size Before Shrink Shrink After Adhesive Thickness
Packing Unit
Inner Diameter Inner Diameter Thickness
DHST3-024 3/32″ 2.4 0.8 0.85 0.35 200m/roll
DHST3-032 1/8″ 3.2 1.0 1.0 0.40 200m/roll
DHST3-048 3/16″ 4.8 1.6 1.1 0.40 100m/roll
DHST3-064 1/4″ 6.4 2.0 1.2 0.50 100m/roll
DHST3-079 5/16″ 7.9 2.7 1.4 0.50 100m/roll
DHST3-096 3/8″ 9.5 3.2 1.4 0.50 50m/roll
DHST3-127 1/2″ 12.7 4.2 1.7 0.60 1.22m/pcs
DHST3-015 5/8″ 15.0 5.0 1.8 0.60 1.22m/pcs
DHST3-191 3/4″ 19.1 6.3 2.0 0.60 1.22m/pcs
DHST3-254 1″ 25.4 8.5 2.1 0.60 1.22m/pcs
DHST3-030 1-1/4″ 30.0 10.2 2.2 0.60 1.22m/pcs
DHST3-039 1-1/2″ 39.0 13.5 2.4 0.60 1.22m/pcs
DHST3-050 2″ 50.0 17.0 2.7 0.70 1.22m/pcs
DHST3-064 2-1/2″ 64.0 21.0 3.0 0.70 1.22m/pcs
DHST3-075 3″ 75.0 25.0 3.2 1.0 1.22m/pcs
DHST3-090 3-1/2″ 90.0 30.0 3.3 1.0 1.22m/pcs
DHST3-100 4″ 100.0 34.0 3.5 1.2 1.22m/pcs
DHST3-125 5″ 125.0 42.0 3.5 1.2 1.22m/pcs

4:1 adhesive heat shrink tubing

Types(mm) Inch Size Before Shrink Shrink After Adhesive Thickness
Packing Unit
Inner Diameter Inner Diameter Thickness
DHST4-004 2/13″ 4.0 1.0 1.0 0.4 200m/roll
DHST4-006 1/4″ 6.0 1.5 1.1 0.4 100m/roll
DHST4-008 5/16″ 8.0 2.0 1.5 0.5 50m/roll
DHST4-012 1/2″ 12.0 3.0 1.7 0.5 1.22m/pcs
DHST4-016 5/8″ 16.0 4.0 2.0 0.5 1.22m/pcs
DHST4-020 15/19″ 20.0 5.0 2.3 0.6 1.22m/pcs
DHST4-024 1″ 24.0 6.0 2.5 0.6 1.22m/pcs
DHST4-032 1-1/4″ 32.0 8.0 2.8 0.7 1.22m/pcs
DHST4-052 2″ 52.0 13.0 3.0 0.7 1.22m/pcs



■ Payments Details:

MOQ: 100m

Payments: T/T, Western Union, Paypal are available. Others please contact sales

General Payment: 30% deposit paid in advance, balance before delivery.

Custom Service: adhesive heat shrink tubing custom service is workable for us, such as packing quantity, packages, length, width, colors etc.
