Heat Shrink Tubing
- PRODUCT DETAIL
■ Products introduction:
1. Material: polyethylene(PE)
2. Shrink ratio: 2:1
3. Endwise shrink ratio: 5%
4. Working temperature: -50~125°C
5. Begin shrink temperature: 70°C, fully shrink in 110°C
6. Fireproof standard: VW-1
7. General color: black
8. Certificates: UL, RoHS
9. Colors: black, white, yellow, red, green, blue, transparent.
10. Function: heat shrink tubing is widely used in wire coat and insulation to separate cables with others. it is the most general shrink tubing. If you need thin wall, double wall, 3:1 or 4:1 etc heat shrink tubing, please email us for more price.
11. Show:

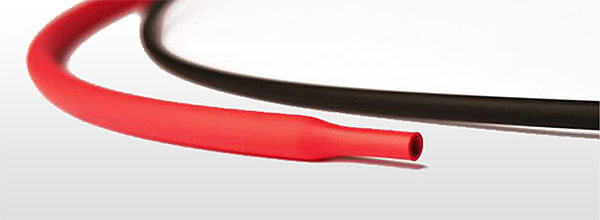

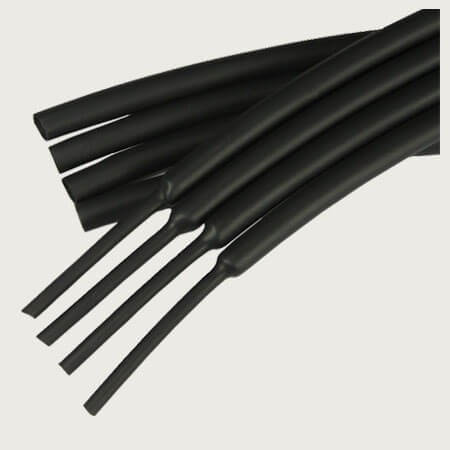

heat shrink tubing

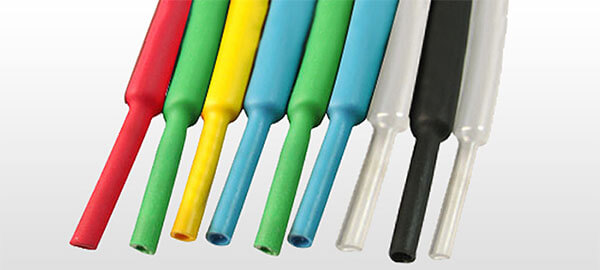

different colors of heat shrink tubing show
12. Warehouse Package:

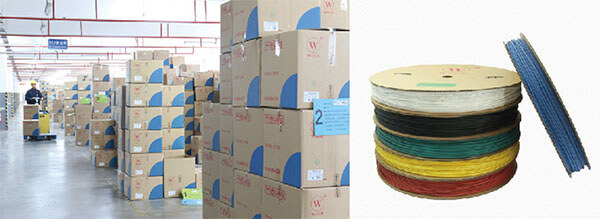

heat shrink tubing packages
13. Size:
| Types(mm) | Before Shrink | Shrink After | Length of Roll(m) |
Application(mm)
|
||
| Inner Diameter | Thickness | Inner Diameter | Thickness | |||
| Φ0.8 | 1.0 | 0.2 | 0.4 | 0.22 | 200 |
0.6-0.8
|
| Φ1.0 | 1.4 | 0.2 | 0.4 | 0.28 | 200 |
0.75-0.9
|
| Φ1.5 | 1.9 | 0.2 | 0.6 | 0.32 | 200 |
0.95-1.4
|
| Φ2.0 | 2.4 | 0.25 | 0.9 | 0.35 | 200 |
1.11-1.8
|
| Φ2.5 | 2.9 | 0.25 | 1.1 | 0.38 | 200 |
1.35-2.3
|
| Φ3.0 | 3.4 | 0.25 | 1.4 | 0.40 | 200 |
1.6-2.7
|
| Φ3.5 | 3.9 | 0.25 | 1.6 | 0.42 | 200 |
1.85-3.2
|
| Φ4.0 | 4.5 | 0.25 | 1.8 | 0.45 | 200 |
2.1-3.6
|
| Φ4.5 | 4.8 | 0.25 | 1.9 | 0.50 | 100 |
2.35-4.0
|
| Φ5.0 | 5.4 | 0.25 | 2.3 | 0.55 | 100 |
2.6-4.5
|
| Φ6.0 | 6.4 | 0.28 | 2.8 | 0.55 | 100 |
3.1-5.4
|
| Φ7.0 | 7.4 | 0.28 | 3.3 | 0.55 | 100 |
3.7-6.3
|
| Φ8.0 | 8.4 | 0.28 | 3.8 | 0.55 | 100 |
4.2-7.2
|
| Φ9.0 | 9.4 | 0.30 | 4.3 | 0.55 | 100 |
4.7-8.0
|
| Φ10 | 10.5 | 0.30 | 4.8 | 0.55 | 100 |
5.2-9.0
|
| Φ11 | 11.5 | 0.30 | 5.3 | 0.60 | 100 |
5.7-10
|
| Φ12 | 12.5 | 0.30 | 5.7 | 0.60 | 100 |
6.2-11
|
| Φ13 | 13.5 | 0.33 | 6.2 | 0.60 | 100 |
6.7-12
|
| Φ14 | 14.5 | 0.35 | 6.7 | 0.60 | 100 |
7.3-13
|
| Φ15 | 15.5 | 0.38 | 7.2 | 0.65 | 100 |
7.8-14
|
| Φ16 | 16.5 | 0.38 | 7.7 | 0.65 | 100 |
8.3-15
|
| Φ17 | 17.5 | 0.38 | 8.2 | 0.65 | 100 |
8.8-16
|
| Φ18 | 19.0 | 0.40 | 8.7 | 0.65 | 100 |
9.3-17
|
| Φ20 | 21.0 | 0.40 | 9.7 | 0.75 | 100 |
10.4-19
|
| Φ22 | 22.8 | 0.42 | 10 | 0.75 | 50 |
11.4-21
|
| Φ25 | 25.8 | 0.45 | 11 | 0.75 | 50 |
12.8-24
|
| Φ28 | 28.8 | 0.45 | 13 | 0.75 | 50 |
14.4-29
|
| Φ30 | 30.8 | 0.45 | 14 | 0.75 | 50 |
16-29
|
| Φ35 | 35.8 | 0.50 | 16 | 0.85 | 50 |
18-34
|
| Φ40 | 42.0 | 0.50 | 19 | 0.85 | 50 |
21-39
|
| Φ50 | 51.0 | 0.50 | 24 | 0.85 | 50 |
26-49
|
| Φ60 | 61.0 | 0.65 | 29 | 0.85 | 25 |
35-55
|
| Φ70 | 71.0 | 0.65 | 33 | 1.00 | 25 |
40-65
|
| Φ80 | 81.0 | 0.65 | 37 | 1.00 | 25 |
45-75
|
| Φ90 | 91.0 | 0.65 | 43 | 1.00 | 25 |
50-88
|
| Φ100 | 102.0 | 0.65 | 48 | 1.00 | 25 |
55-95
|
| Φ120 | 122.0 | 0.80 | 58 | 1.50 | 15 |
65-115
|
| Φ150 | 152.0 | 0.80 | 73 | 1.50 | 15 |
80-145
|
| Φ180 | 182.0 | 0.80 | 88 | 1.50 | 15 |
95-175
|
■ Payments Details:
MOQ: 100pcs
Payments: T/T, Western Union, Paypal are available. Others please contact sales
General Payment: 30% deposit paid in advance, balance before delivery.
Custom Service: heat shrink tubing custom service is workable for us, such as packing quantity, packages, length, width, colors etc.
